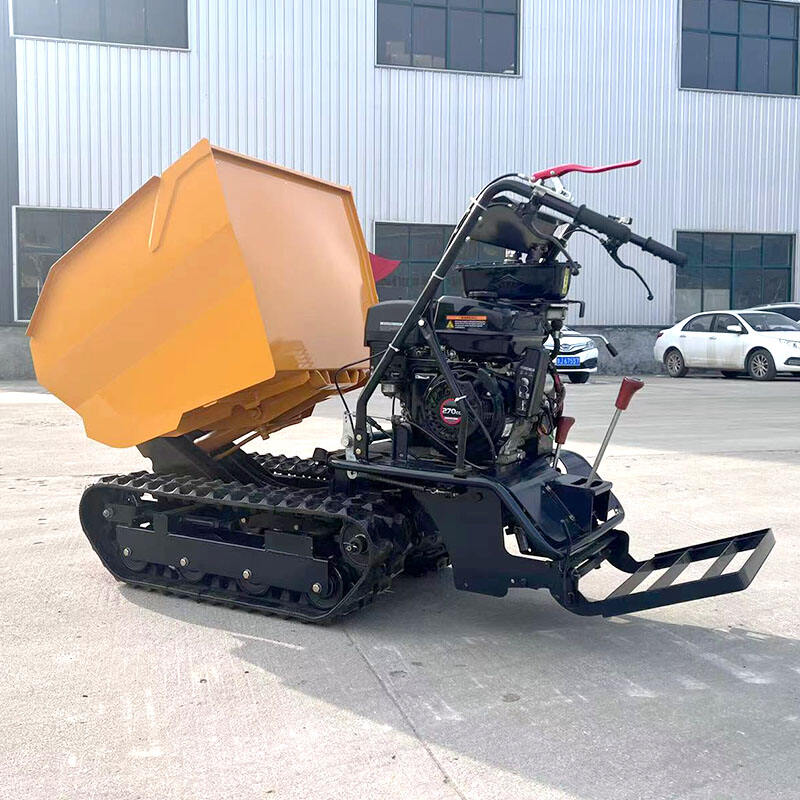

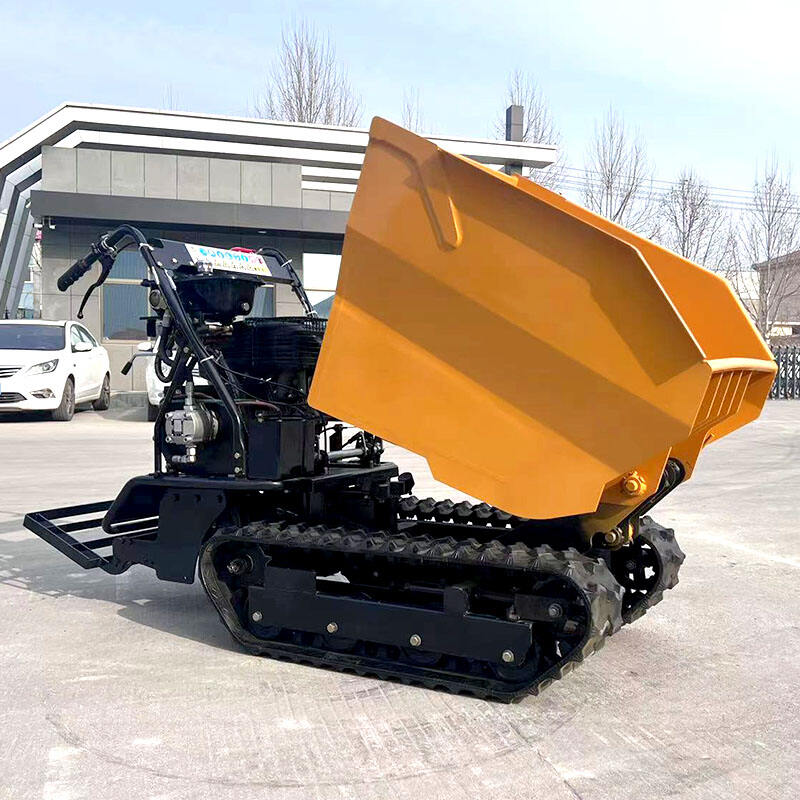

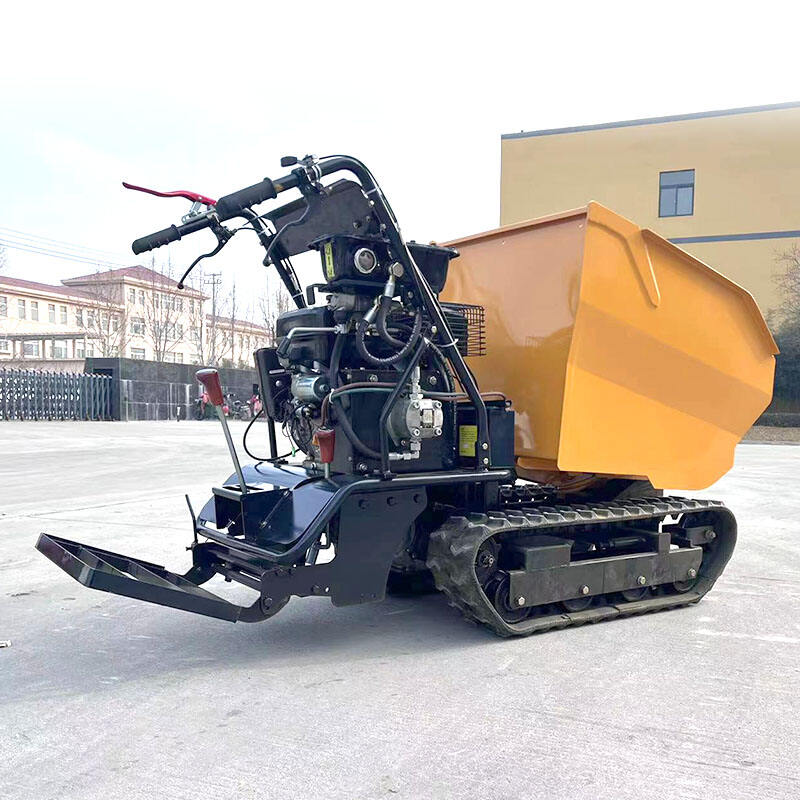

HT-5050A Mini Dumper

Powered by Loncin 270CC engine with air-cooled mode, the HT-5050A uses gasoline as fuel and meets the Euro 5 standard for emission, which is a good balance between power output and environmental protection. 6 forward gears and 2 reverse gears, combined with high and low speeds, allow the vehicle to flexibly choose the right speed and gear for different road conditions and handling tasks, so as to cope with the complex working conditions.

In terms of load capacity, the 500kg loading capacity can meet the needs of many small operations. The one-piece cargo box design, with a length of 816mm, a width of 680mm and a depth of 620mm, provides a neat space for orderly stacking and transportation of materials, and the 180mm wide tracks, with a suitable contact area with the ground, ensure stable driving on complicated ground and reduce the pressure on the ground, so that it can pass through a wide range of terrains. The weight of the whole machine is only 316kg, with the overall size of 17507001080, which makes the vehicle compact and flexible, and it can travel freely in narrow spaces.

Operation is easy with electric start mode. The mechanical drive type and manual steering mode require some operating skills, but allow the driver to precisely control the direction of the vehicle. Hydraulic unloading mode is even more efficient. With simple operation, the unloading can be completed quickly and smoothly, which greatly improves the working efficiency. In terms of transportation convenience, the 20GP container can hold 18 units and the 40HQ container can hold 36 units, making it easy for mass transportation and worldwide delivery. Whether it is short distance transfer of materials in small construction projects or moving tools and plants in garden maintenance, the HT-5050A mini tipper is able to fulfill the material handling work excellently with its parameter advantages.

HT-5050A Mini Dumper Parameter
