HTD1200 Rotation Mini Dumper

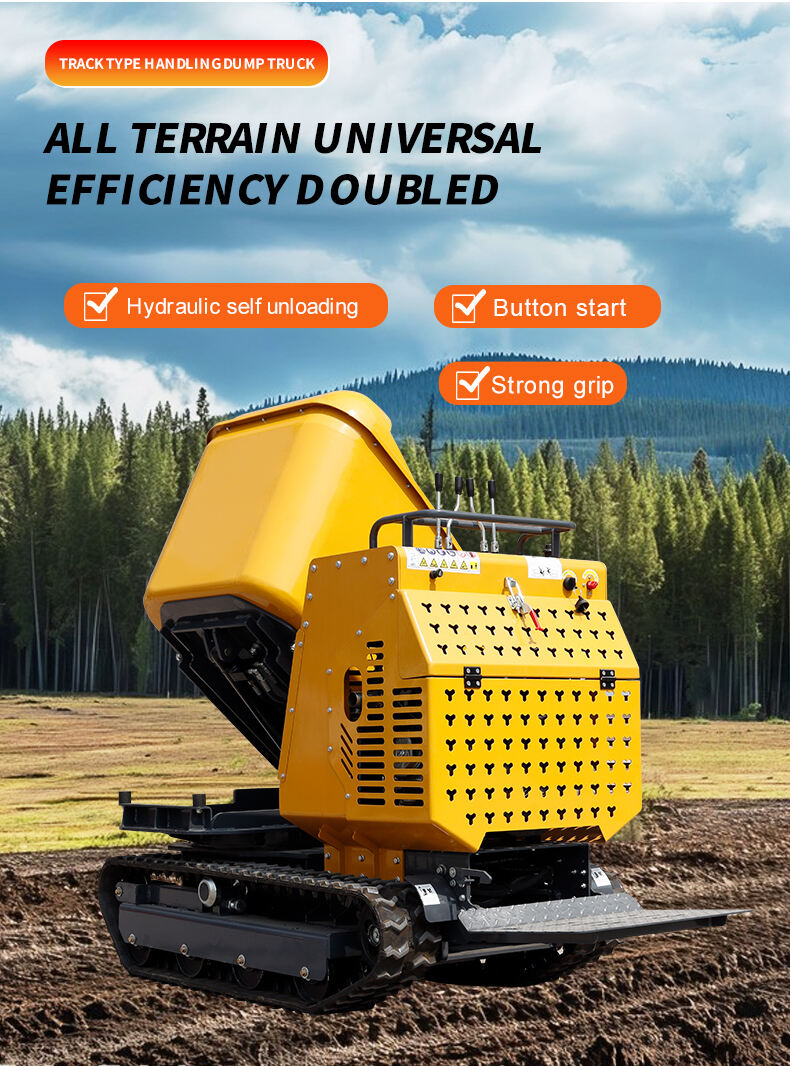

HIGHTOP HTD1200 Rotary Dumper, with high work efficiency and operational flexibility, adopts engineered rubber tracks to provide balanced weight distribution, easily traverses interesting terrains, and saves user's cost as well as labor and material resources in time.

Overview
Parameter
Related Products

Detail description

1.Revolving Hopper

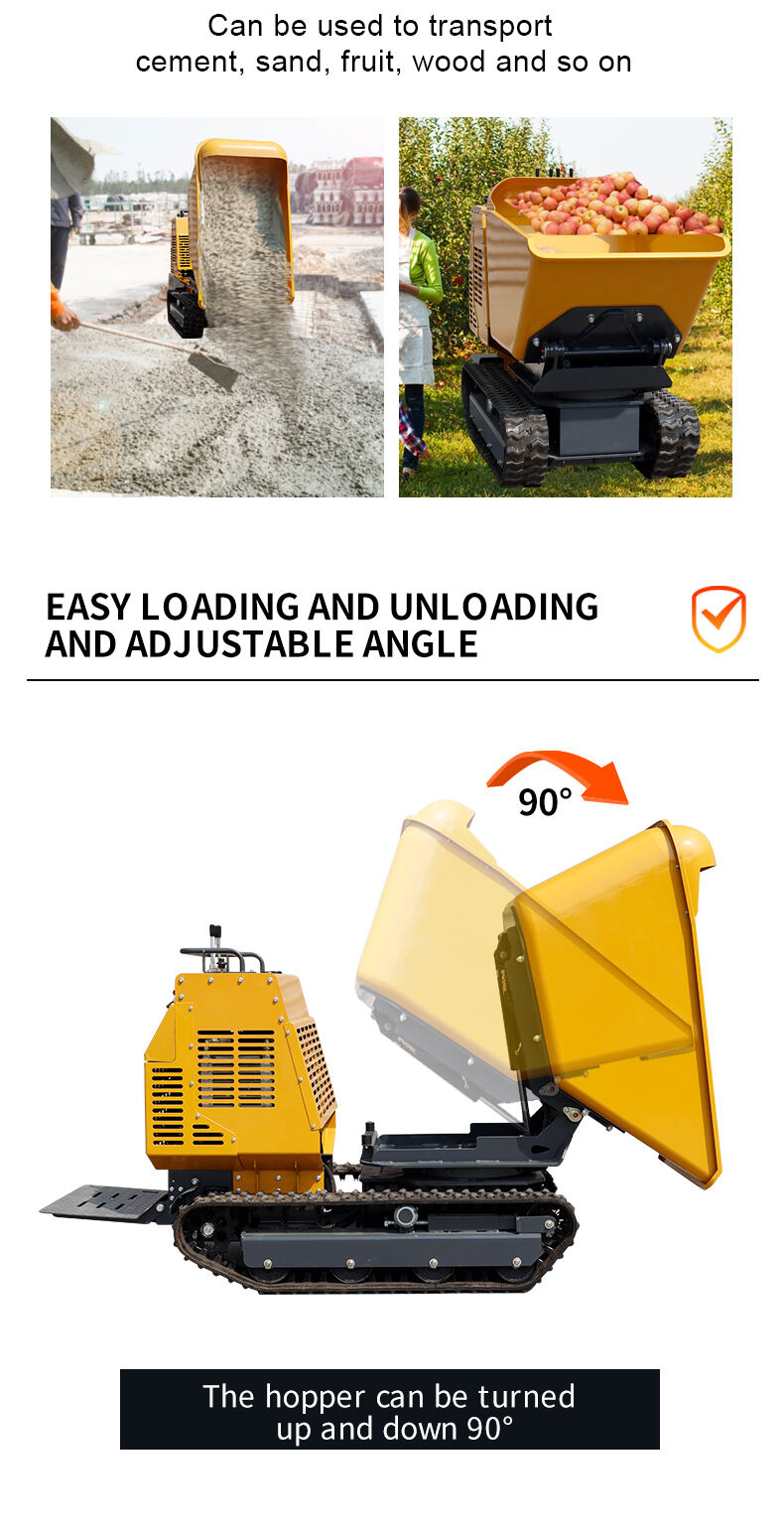

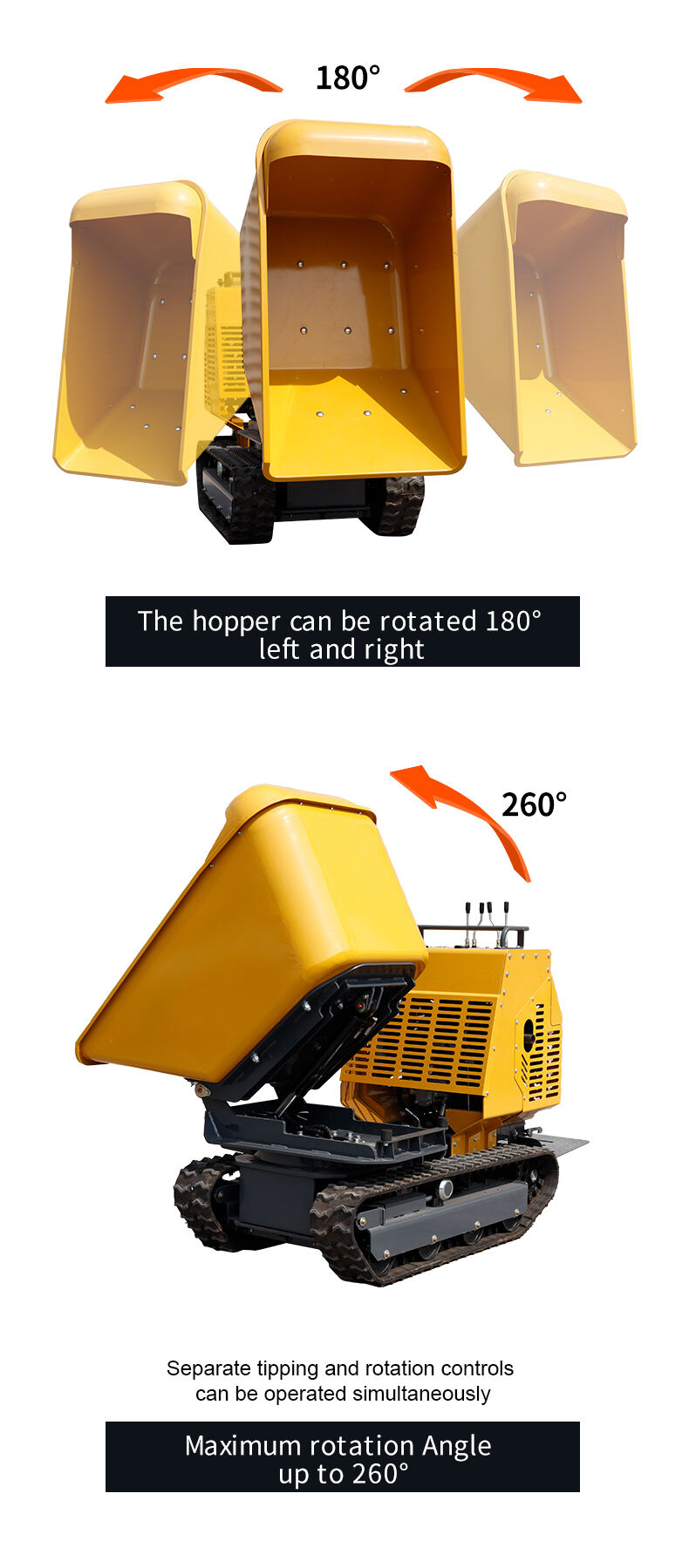

The hopper can be turnedup and down 90°

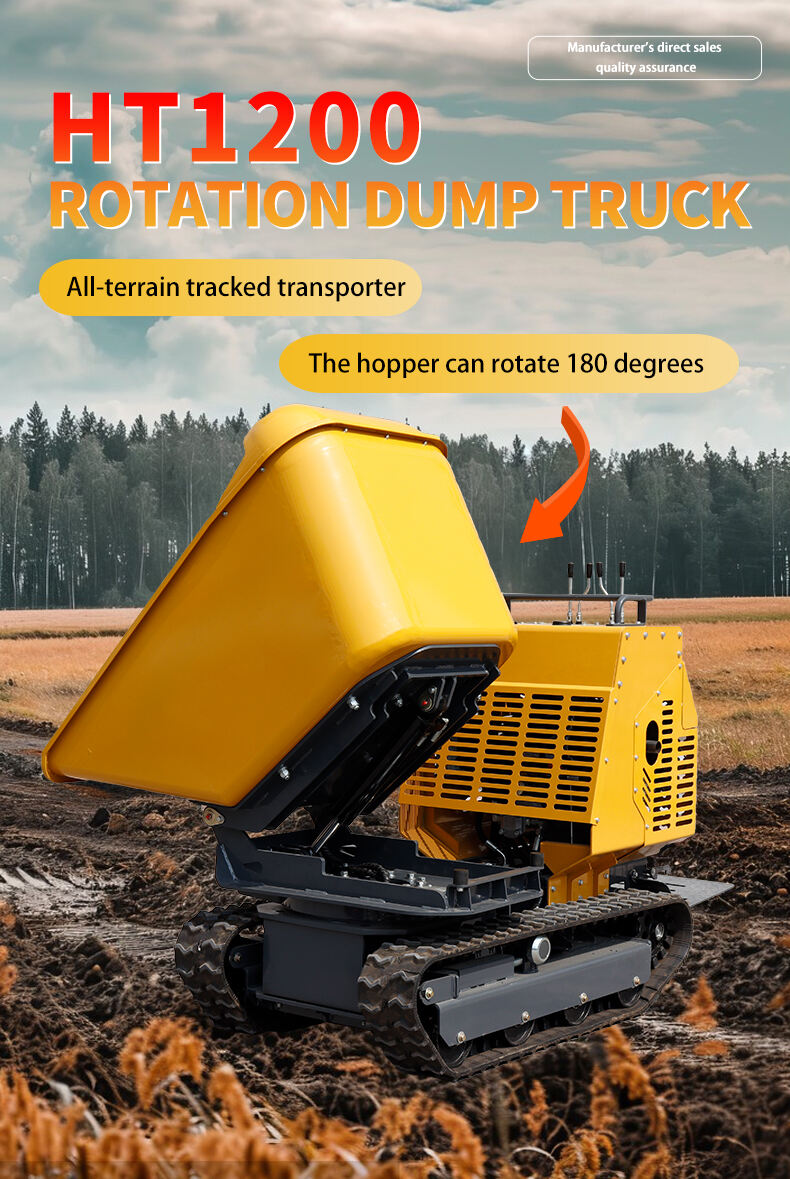

The hopper can be rotated 180°left and right

Separate tipping and rotation controls can be operated simultaneously

Maximum rotation Angleup to 260°

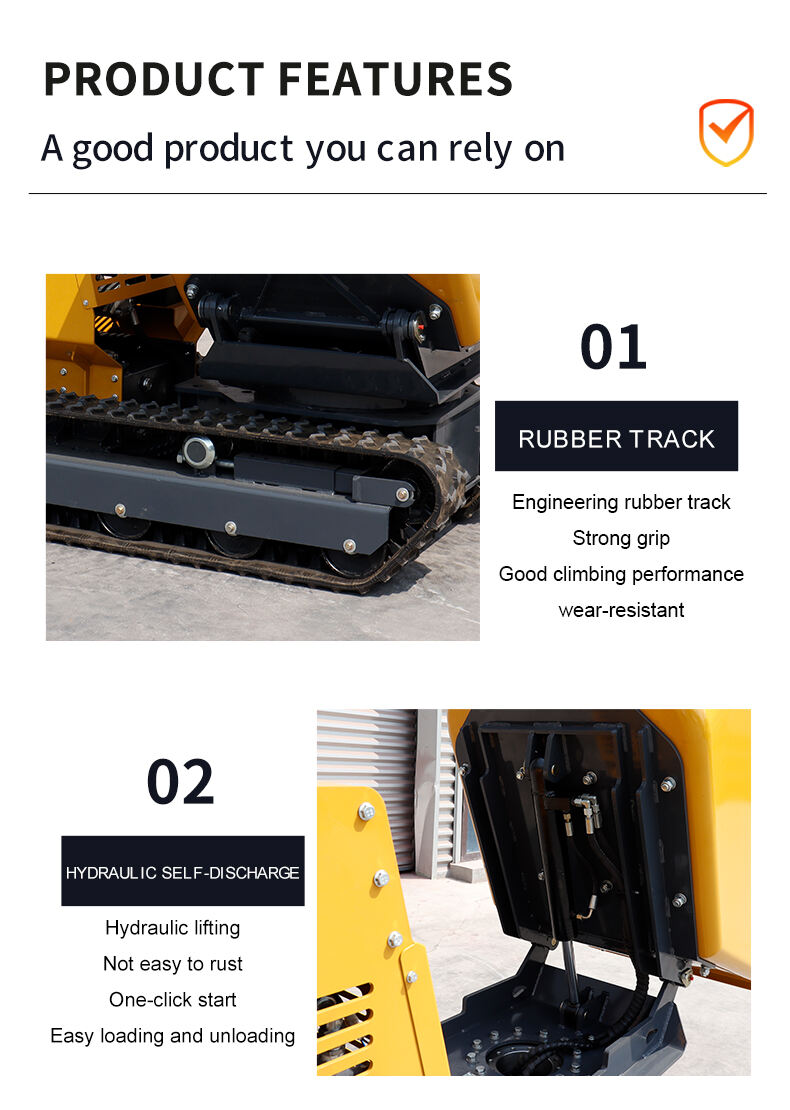

2.rubber track

Engineering rubber track Strong grip.Good climbing performance wear-resistant

3.hydraulic self-discharce

Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading

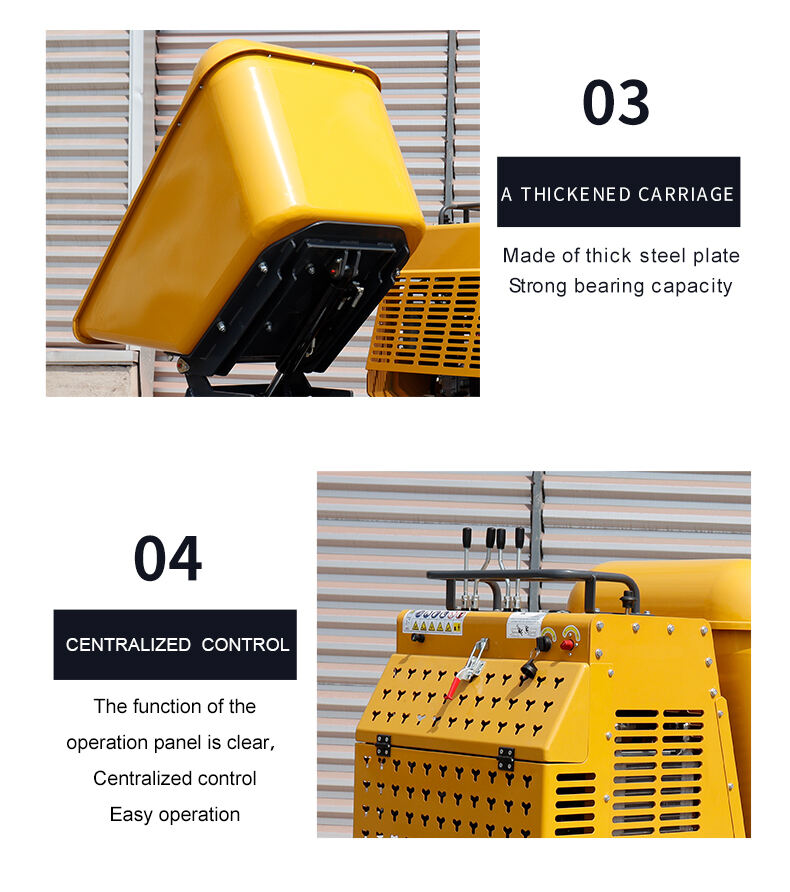

4.a thickened carriage

Made of thick steel plate.Strong bearing capacity

5.centralized control

The function of the operation panel is clear.

Centralized control Easy operation

6-Wide range of application

HTD1200 crawler transporter can transport cement, sand, fruit, wood, etc. on steep hills, gravel roads, muddy roads, wetlands and other sites

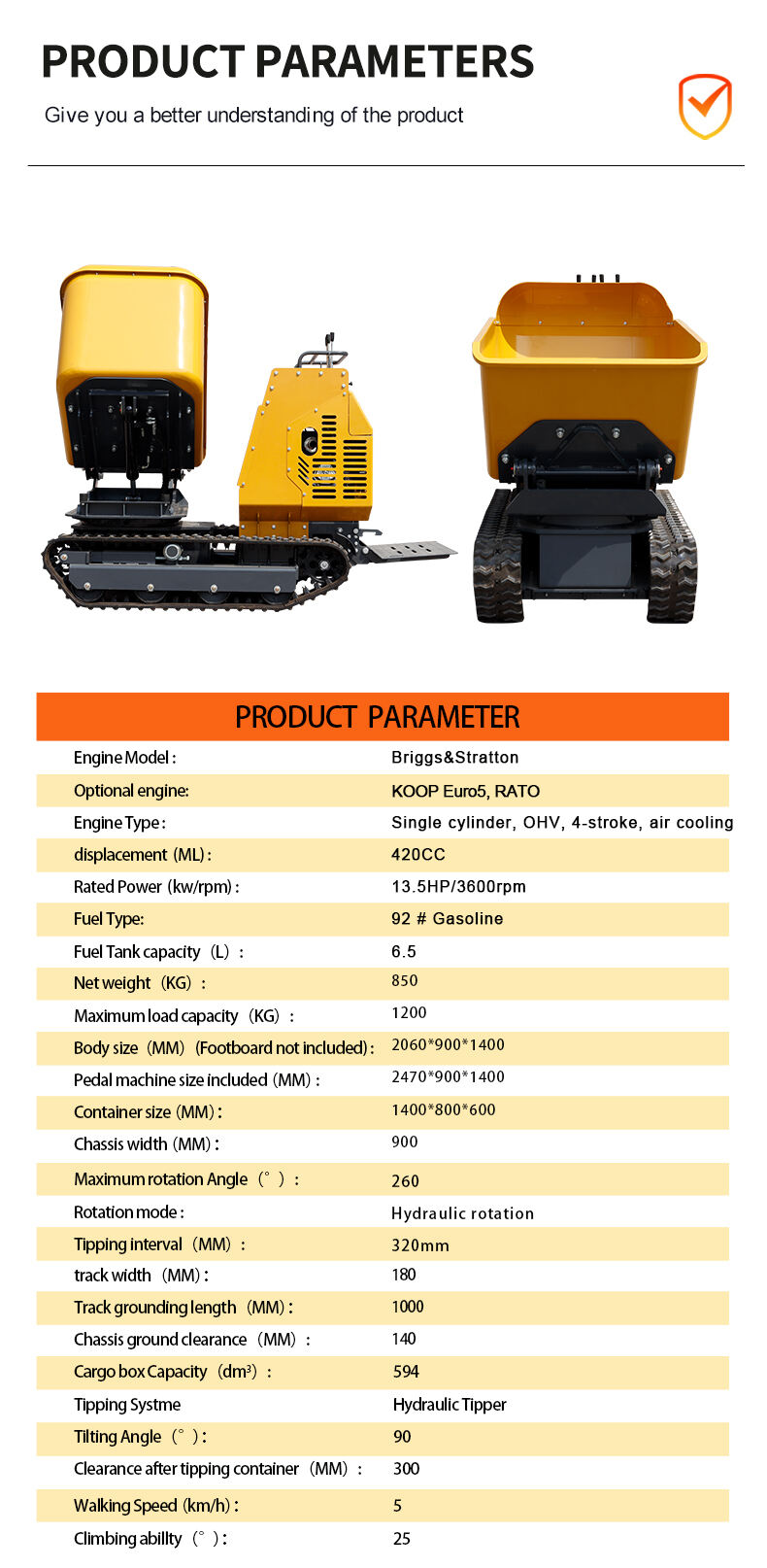

Parameter

Engine data
Engine Model	Briggs&Stratton Pioneer
Engine Type	Single cylinder, OHV, 4-stroke, air cooling
displacement	420CC
Rated Power	13.5HP/3600rpm
Fuel Type	92 # Gasoline
Fuel Tank capacity	6.5L
Weight data
Net weight:	850kg
Maximum load capacity	1200kg
Body size : (Footboard not included)	20609001400mm
Pedal machine size included	24709001400mm
Container size：	1400800600mm
Chassis width：	900mm
Rotating data
Maximum rotation Angle	260°
Rotation mode:	Hydraulic rotation
Tipping interval	320mm
Track data
track width：	180mm
Track grounding length：	1000mm
Chassis ground clearance:	140mm
Hopper data
Cargo box Capacity	594dm³
Tipping Systme	Hydraulic Tipper
Tilting Angle	90°
Clearance after tipping container	300m
Walk data
Walking Speed	5km/h
Climbing abillty	25°
