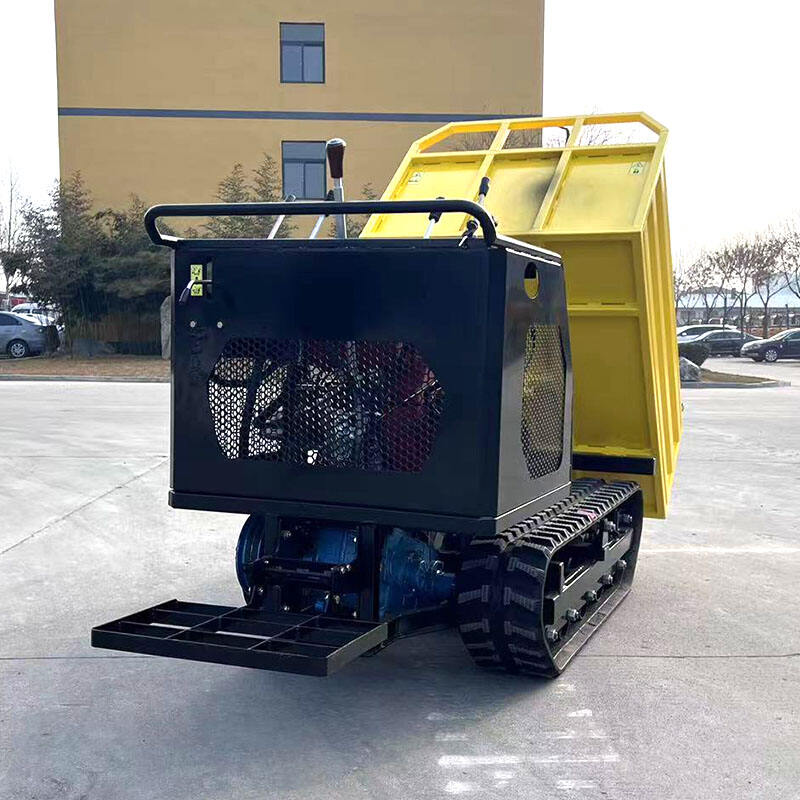

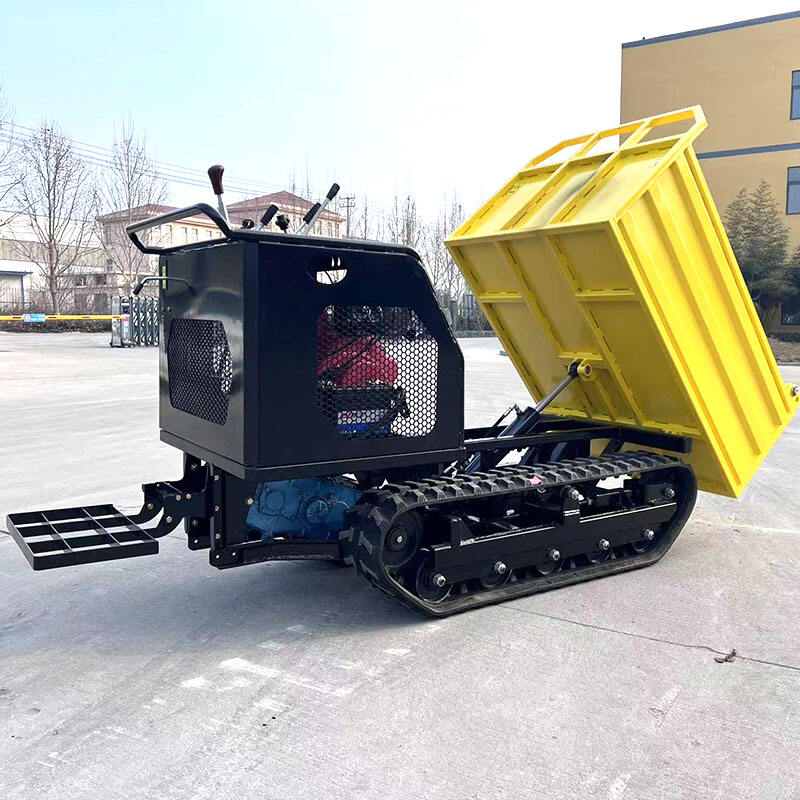

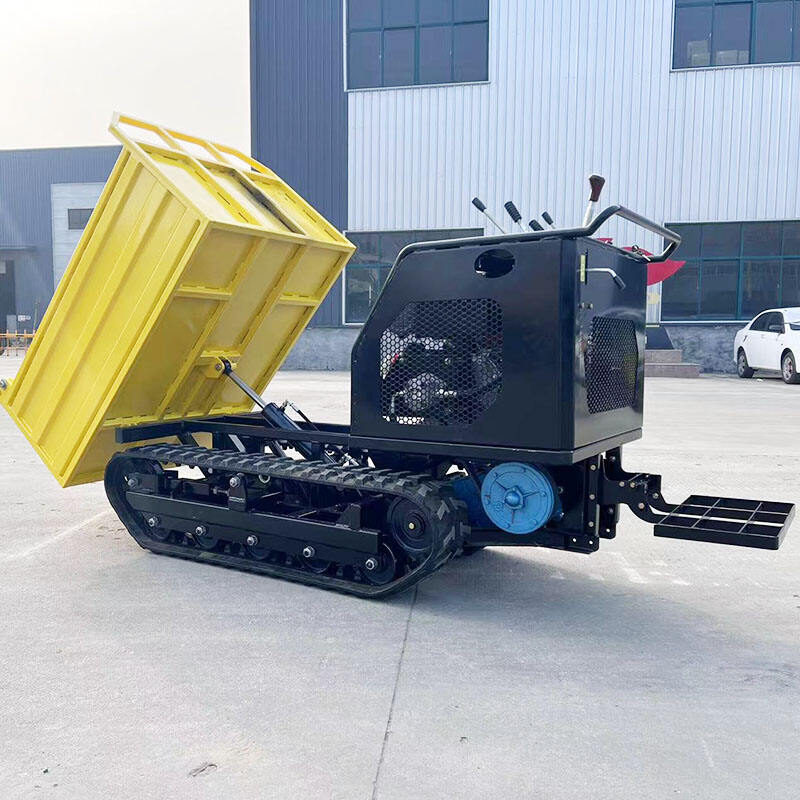

HT-5100 Mini Dumper

HT-5100 Mini Dumper is powered by Koop Engine KD192F engine, which is air-cooled, gasoline-fueled and meets Euro 5 emission standards, which is both powerful and environmentally friendly. With a transmission system of 3 forward gears and 1 reverse gear, it can easily cope with different working conditions, whether for forward transportation or reverse adjustment.

In terms of loading capacity and space design, this tipper has an outstanding performance, with a strong loading capacity of 1000kg, it can carry a large amount of materials to meet the needs of all kinds of operating scenarios. The cargo box adopts one-piece design, with a length of 1250mm, a width of 890mm and a depth of 480mm, which provides sufficient and regular space for loading materials, and facilitates the stacking and transportation of materials.

The track design is unique, the track width is 230mm, the contact area with the ground is reasonable, which not only ensures the stability of the vehicle on the complex ground, but also reduces the pressure on the ground to a certain extent, which is suitable for a variety of terrain. The weight of the whole machine is 682KG, with the overall size of 23109501345, it is flexible and steady.

Ease of operation is also one of the highlights of the HT-5100. It adopts electric start mode, which makes the operation simple and easy. The steering is lever-type, precisely controlling the steering direction of the vehicle. Unloading adopts hydraulic mode, which can complete the unloading action quickly and smoothly with just easy operation, greatly improving the working efficiency. In terms of the number of units to be transported, the 20GP container can be loaded with 6 units and the 40HQ container can be loaded with 12 units, which is convenient for batch transportation and global delivery. Whether it is for small building construction to move gravel and cement, or agricultural field to transport fertilizer and agricultural products, HT-5100 mini dump truck can efficiently complete the material handling tasks with its own advantages.

HT-5100 Mini Dumper Parameter
