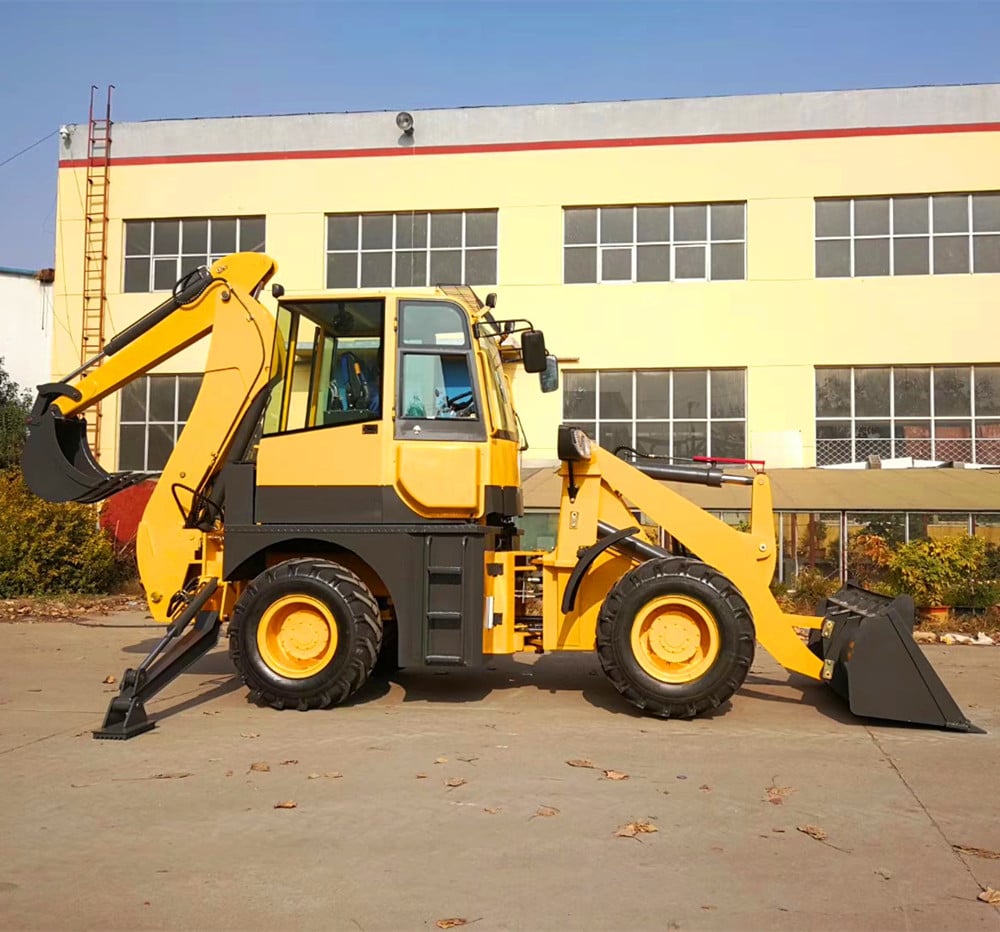

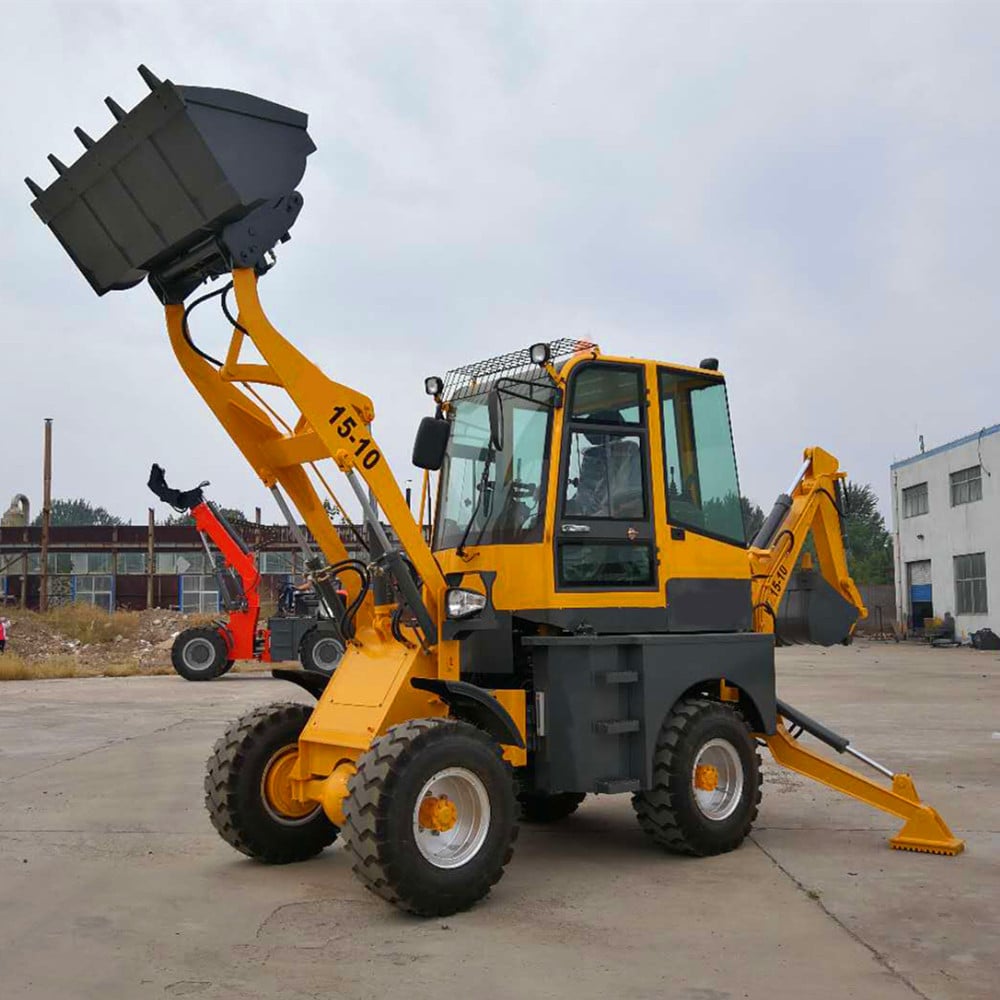

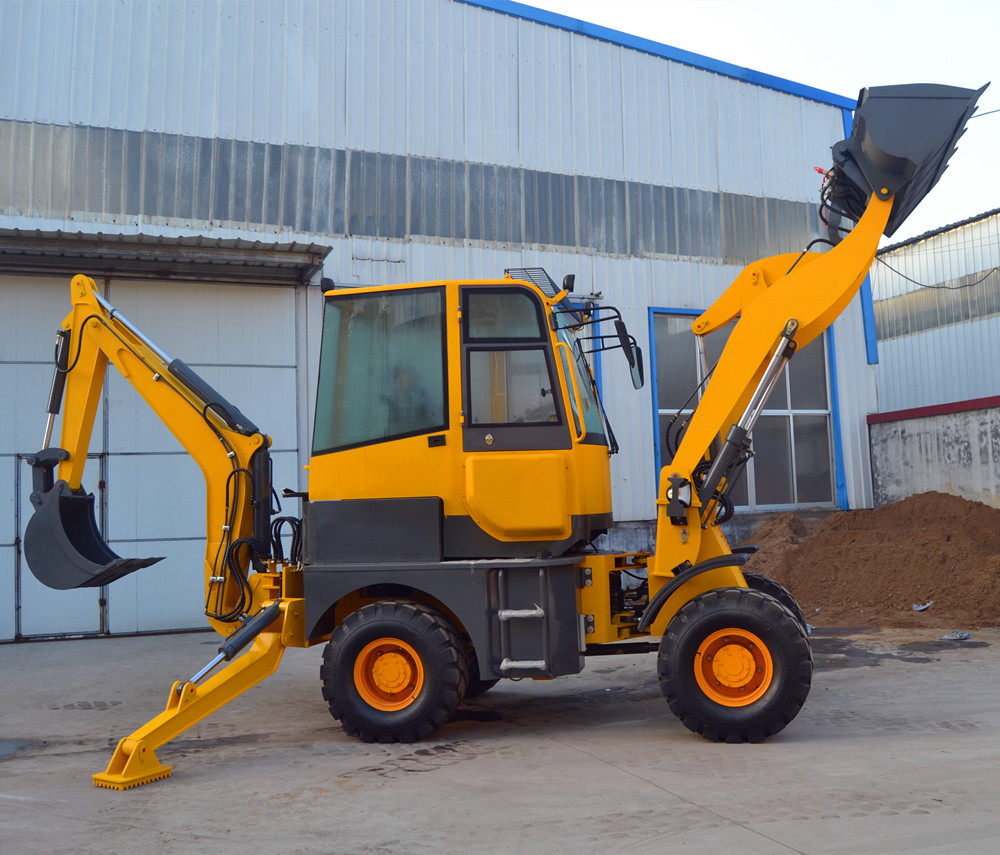

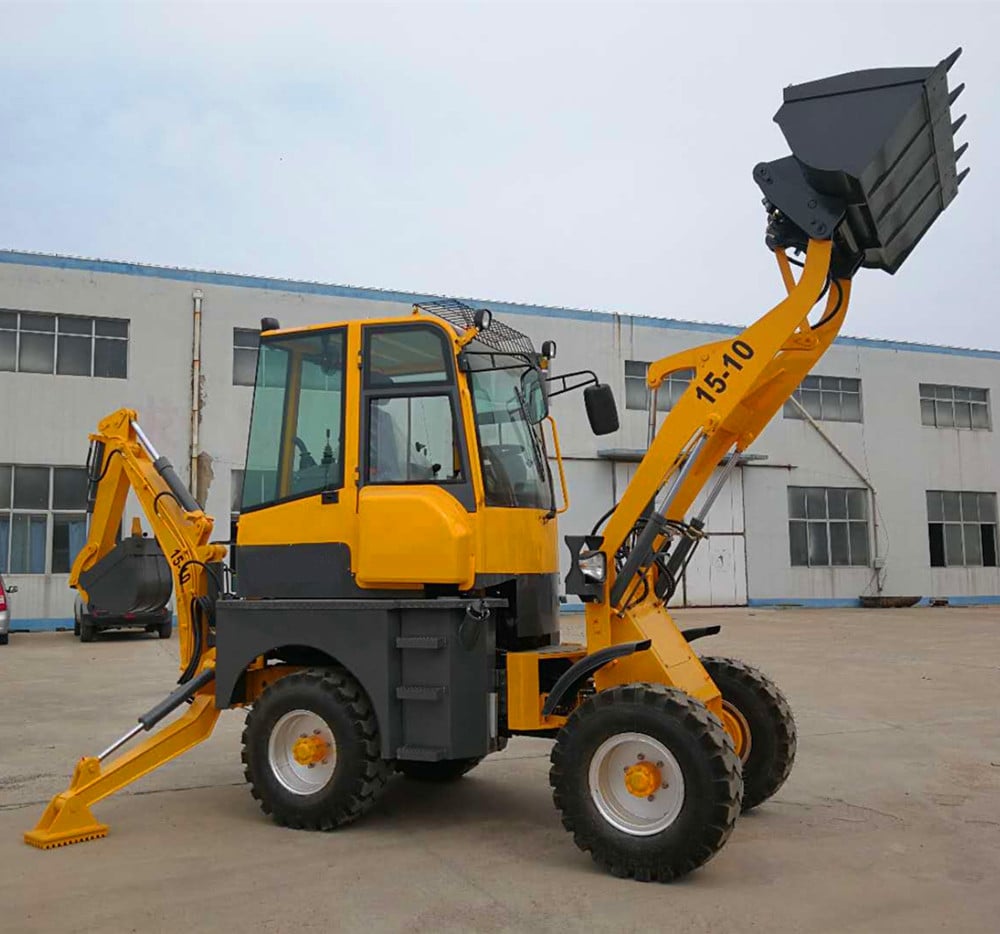

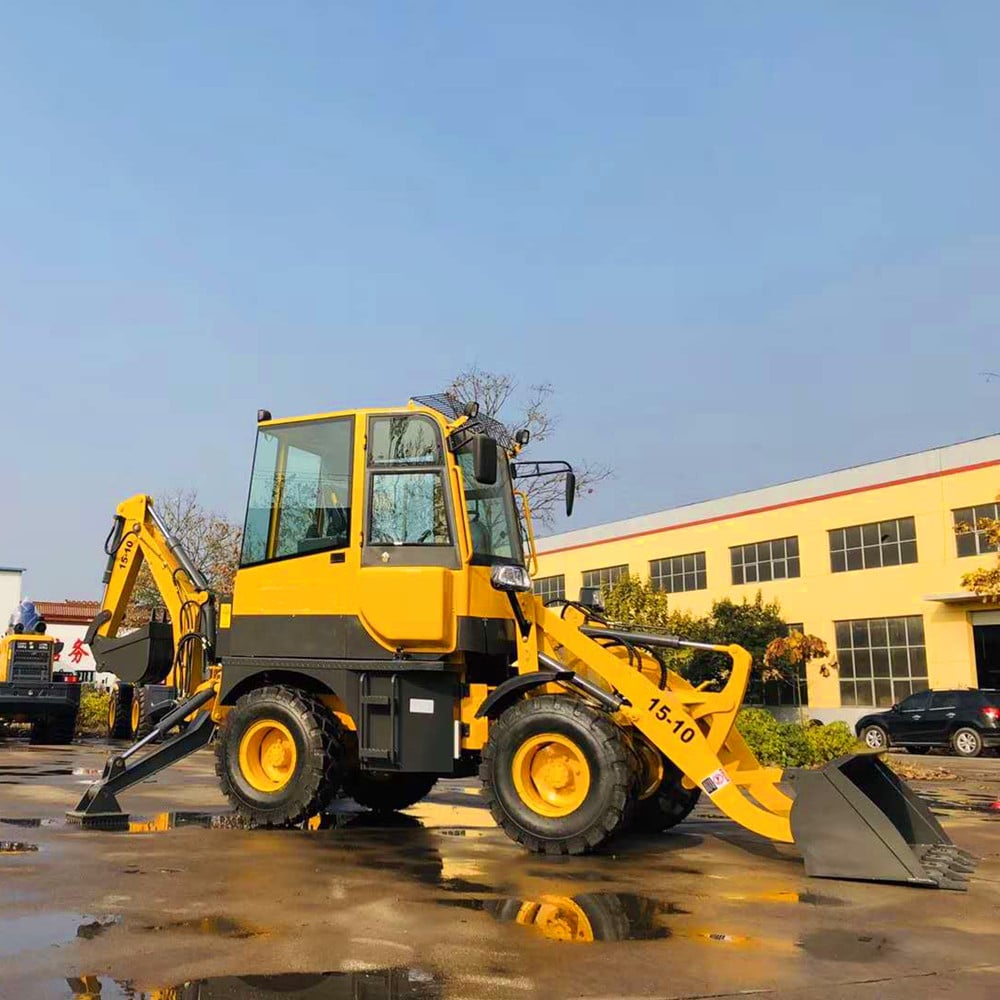

HT15-10 Backhoe loader
HT15-10 Backhoe loader with front and rear adjustable dashboard, swivel seat, provides convenient operating conditions and comfortable view for the operator. Equipped with sliding windows for good ventilation. Front steering cab design with mechanical pilot operation for the front shovel and hydraulic pilot operation for the rear, which is easy to operate and highly accurate. It is also equipped with warning light, warm air, high and low speed fan, which enhances the comfort and safety of operation.
- Overview
- Parameter
- Details
- Related Products
HT15-10 Backhoe loader Instruction
HT15-10 with front and rear adjustable instrument panel, rotating seat, push and pull window, front turning cab, front shovel mechanical pilot operation, rear hydraulic pilot operation, alarm light, warm air, high and low speed fan, double leg with lock, isuzu disc brake bridge.
Small construction project: it can be used for digging foundation and trench, loading and unloading construction materials and other operations.
Municipal engineering: it can be used for excavation and backfilling in urban road maintenance, pipeline laying and other projects.
Agricultural field: suitable for land leveling, trench digging, material handling and other operations in farms.
Landscape engineering: it can carry out tree transplantation, flowerbed excavation, earth moving and other work.
HT15-10 Backhoe loader Parameter
|
ITEM |
PARAMETER |
|
Max.Excavating Depth |
2000mm |
|
Max.Excavating Height |
3600mm |
|
Max.Excavating Radius |
5000mm |
|
Bucket Capacity |
0.1m³ |
|
Max. Hauling Force |
23KN |
|
Max. Swing Angle of Boom |
180° |
|
Max.Dumping Height |
2300mm |
|
Min. Turning Radius |
3500mm |
|
Max.Dumping Distance |
900mm |
|
Ground Clearance |
230mm |
|
Loading Mass |
1000kg |
|
Drive |
4 Wheel Drive |
|
Grade ability |
25° |
|
Lifting Time of Movable Arm |
4.5s |
|
Falling Time of Movable Arm |
3s |
|
Summational Time |
10s |
|
Max. Breakout Force |
20kn |
|
Engine Brand Model |
Yunnei 云内 |
|
Number of Cylinder |
4 Cylinder 四缸 |
|
Electric System Voltage |
24V |
|
Rated Power |
42kw（57HP） |
|
Tyre Model |
20.5/70-16 |
|
Rated Revolution |
2400r/min |
|
Maximum Forward Speed |
30km/ hour |
|
Working Pressure |
20MPa |
|
Total Weight |
3990kg |
|
Distance Between Axles |
1725mm |
|
Overall Dimension(L×W×H) |
5900×1860×2960mm |
