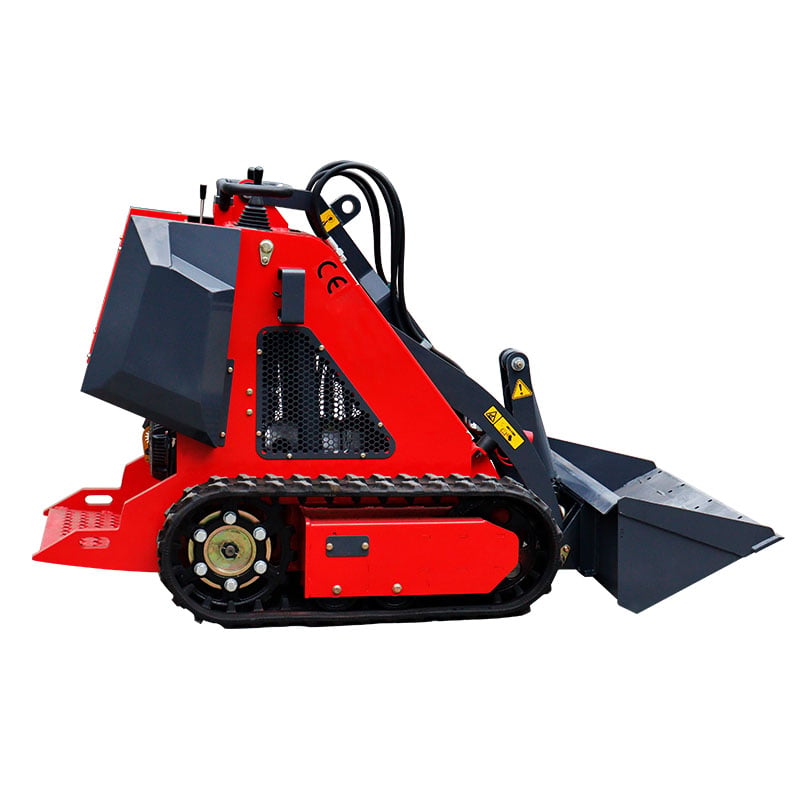

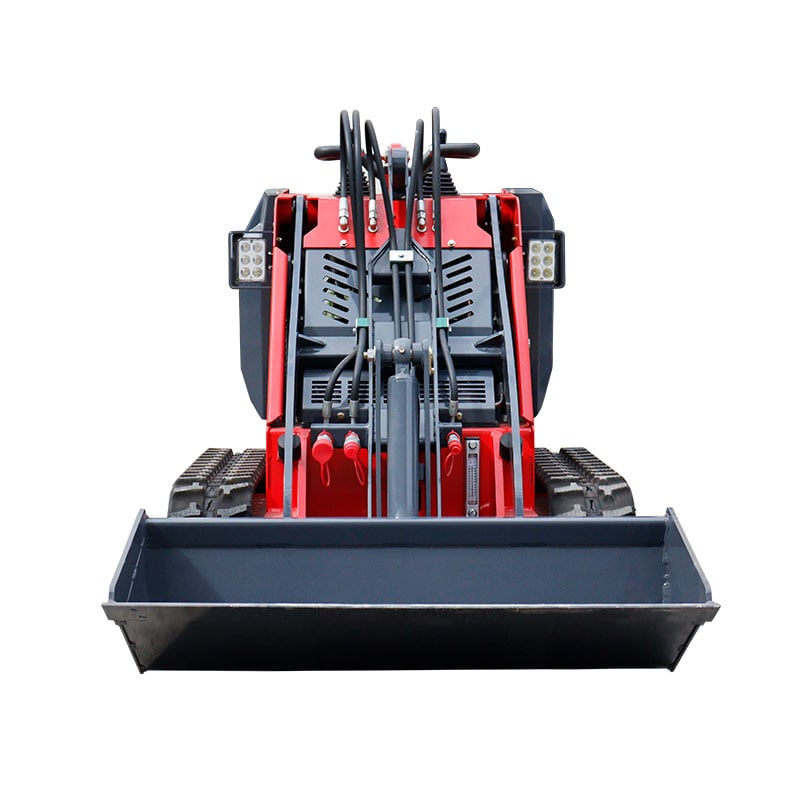

HT320 Skid Steer Loader

HT320 Skid Steer Loader Replace manual labor, toss out the hand tools and get more done in hard-to-accessWork areas. Easy-to-use mini HT320 loader travel and work where other machinescan't, making them a popular choice for landscapers, contractors, renters and othersDon't be fooled by the small size. They5do serious work: digging, trenching, tillingmoving material and more.

Overview
Parameter
Related Products

HT320 Skid Steer Loader Powerful power upgrade performancehigher power efficiency faster

MULTIFUNCTIONAL MACHINE

HT320 is highly maneuverable, small and versatile machine, it is the right choicefor your doing job in confined space.

Bucket automatic leveling

The bucket canbe kept levelwithout the need to operatethe control valve of the attachments

Produet selling point

Small and convenient

Many uses

High quality machine

Narrow width can be customizedonly 820mm.

The radiator is set on the left side forbetter heat dissipation.

Access hood supported by thehydraulic rod, which is moreconvenient to check.

Operation panel adopts stainlesssteel wire drawing and etchingprocessing technology.

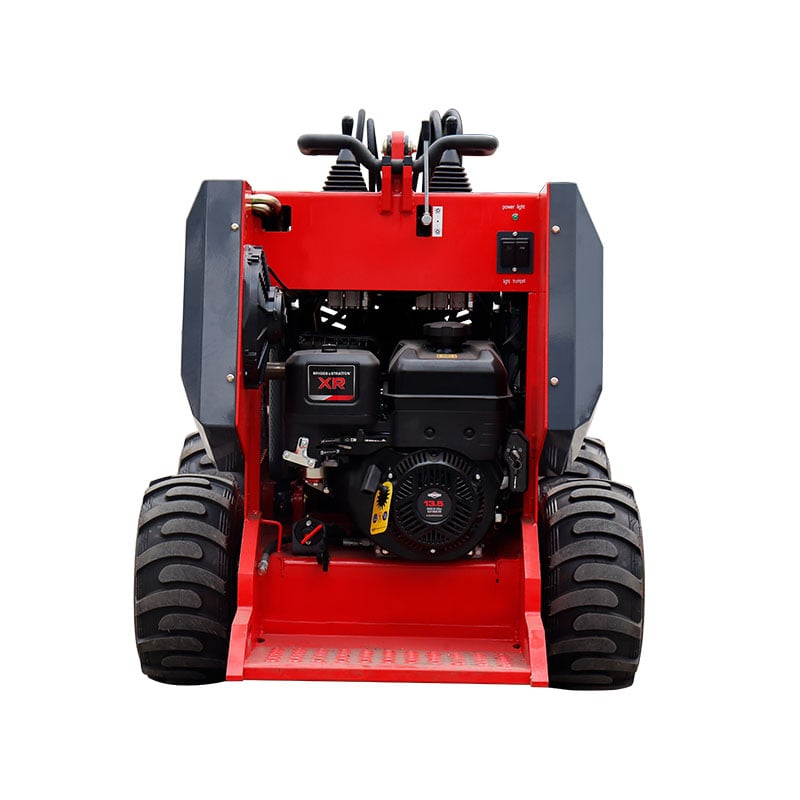

PetrolEhgine

USA Brand Briggs&Stratton 13.5HP Petrol Engine

Maintenance

The gasoline engine is serviced for the first 10 hoursand then every 80 hours.

Replace the hydraulic oil for the first time within 50hours,and then every 250 hours

Gasoline engine oil 5w-30 model oil for the first 50hours, followed by 250 hours of 1.1L oil for eachtime

When you dont use machine in 3 months ,dis-con-nect the positive electrode and negative electrodefrom 12v battery ,incase battery lost power.

Parameter

Machine weight	640KG
Max lfting power	320KG
Engine	Petrol/Briggs&Stratton/EPA/EURO5/10KW(13.5HP)
Pressure	17Mpa
Bucket Capacity	0.08 m3
Travel Speed	0-6 Km/h
Max working height	2504 mm
Total height	1210 mm
Total width	1050
Bucket width	1080 mm
Number of pumps	2
Number of values	2
Working Time	Raise:4s/Dump:1.3s/Lower:3.2s
Standard for all series: Bucket automatic leveling
