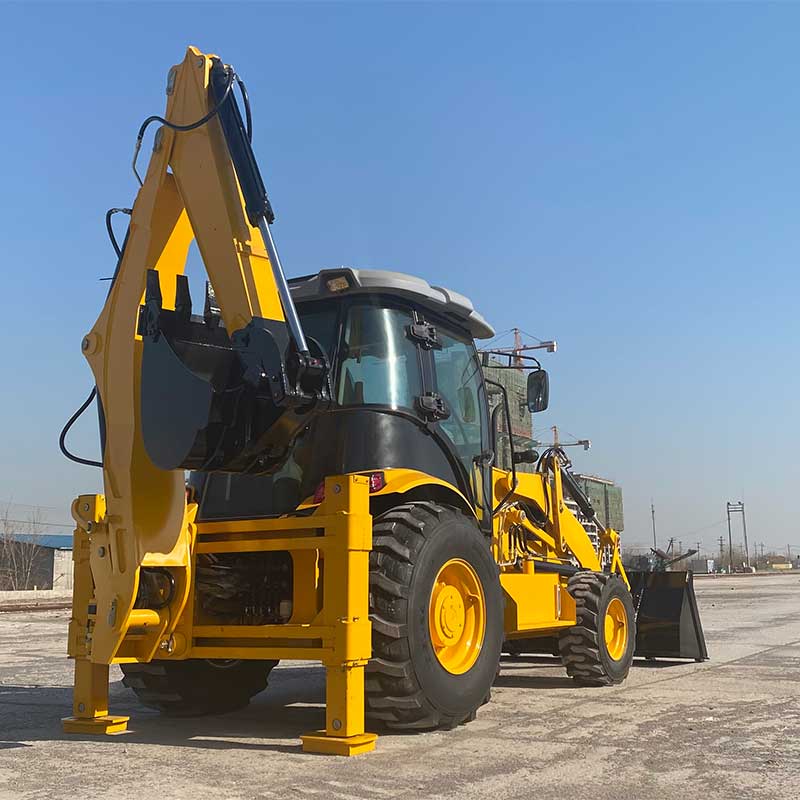

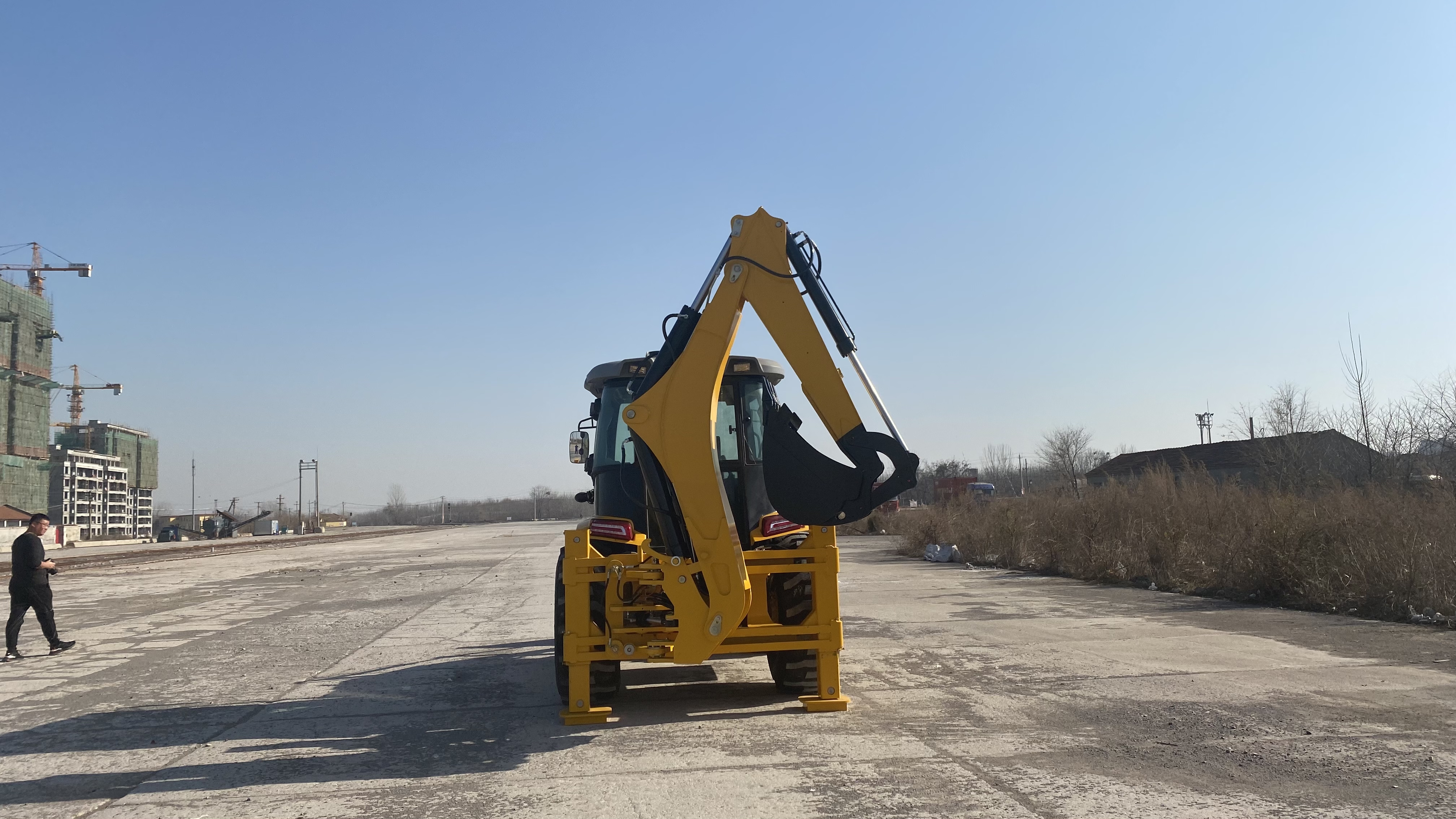

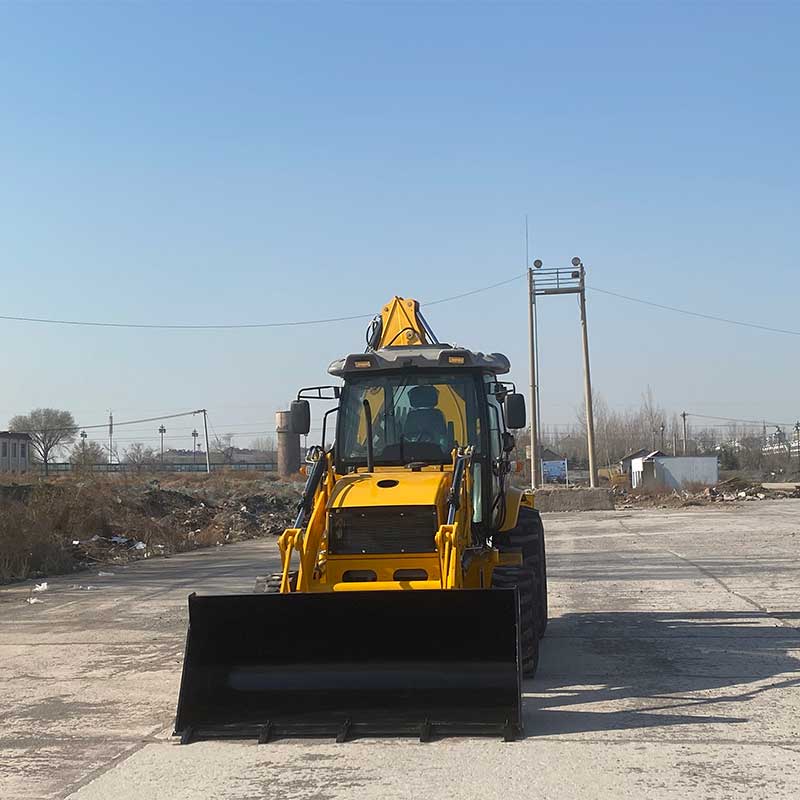

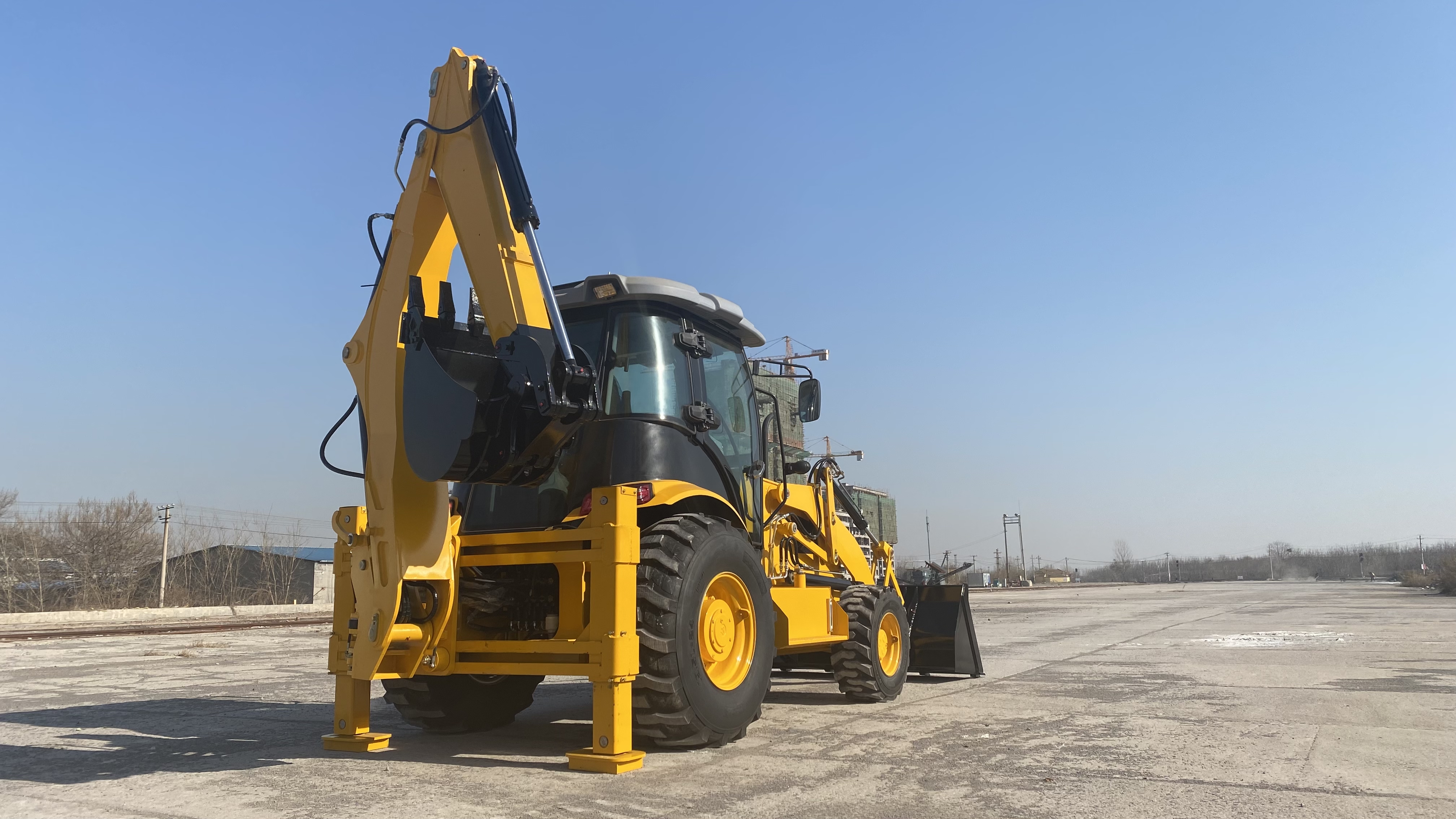

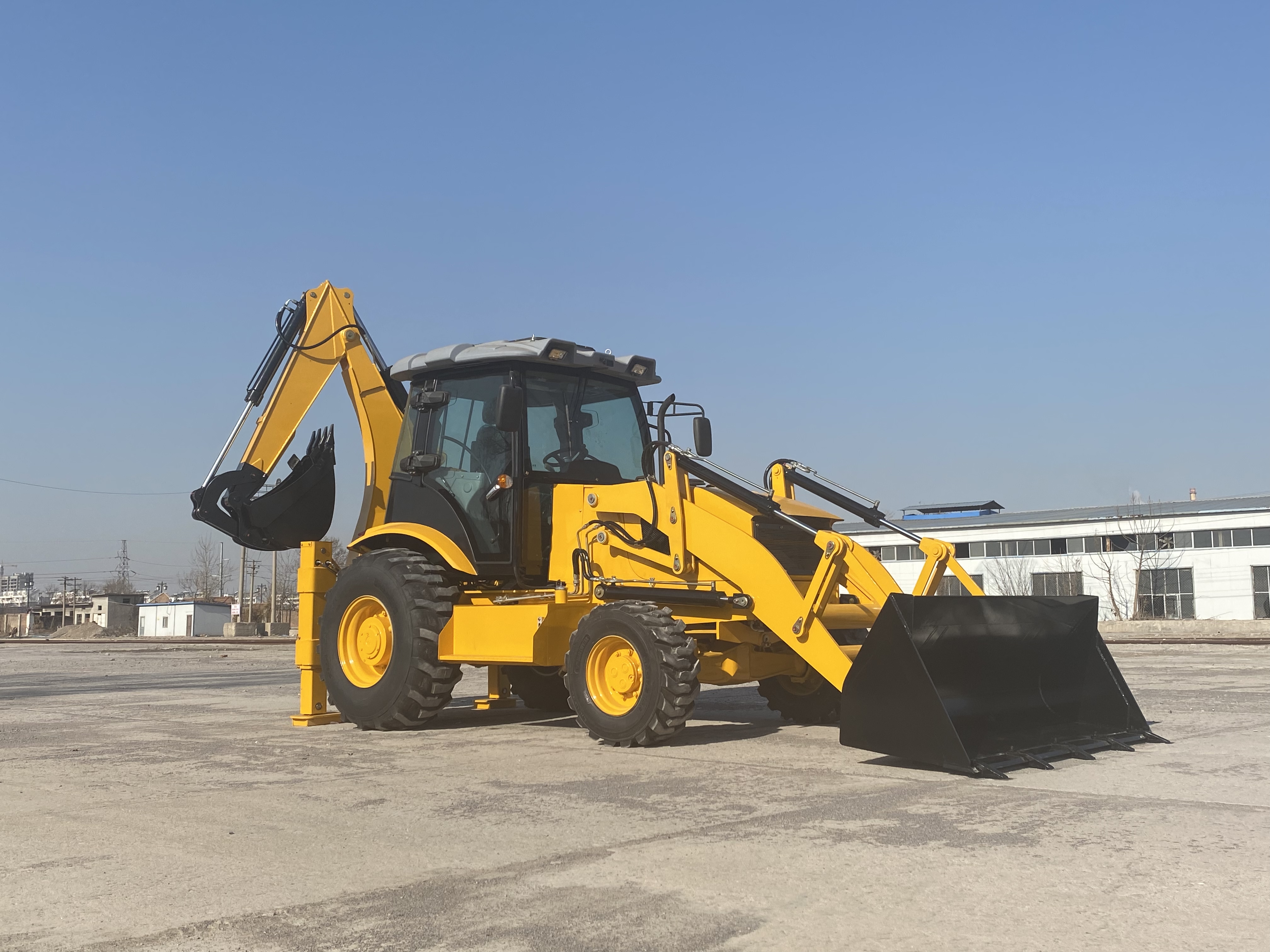

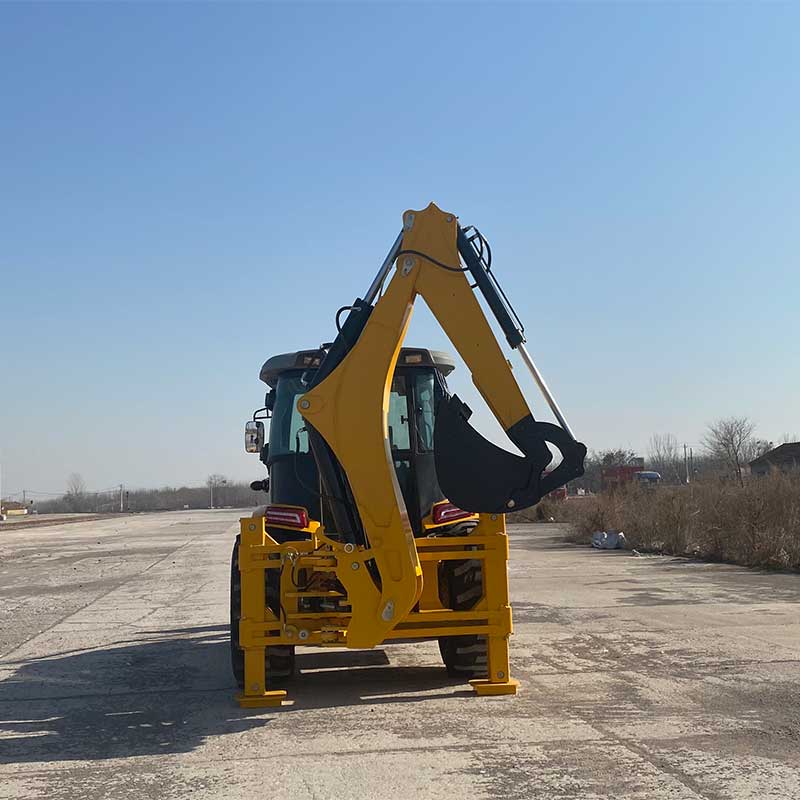

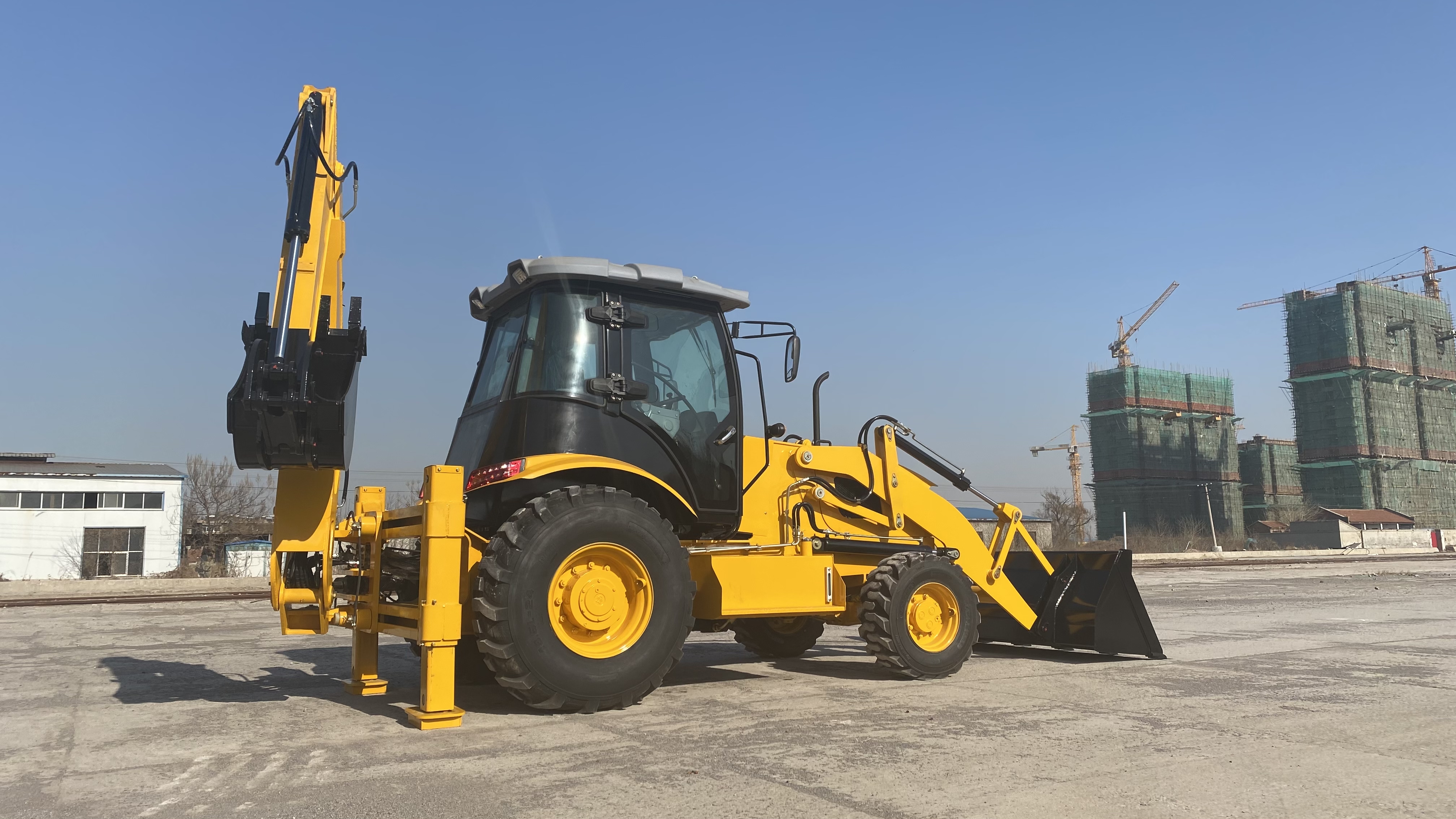

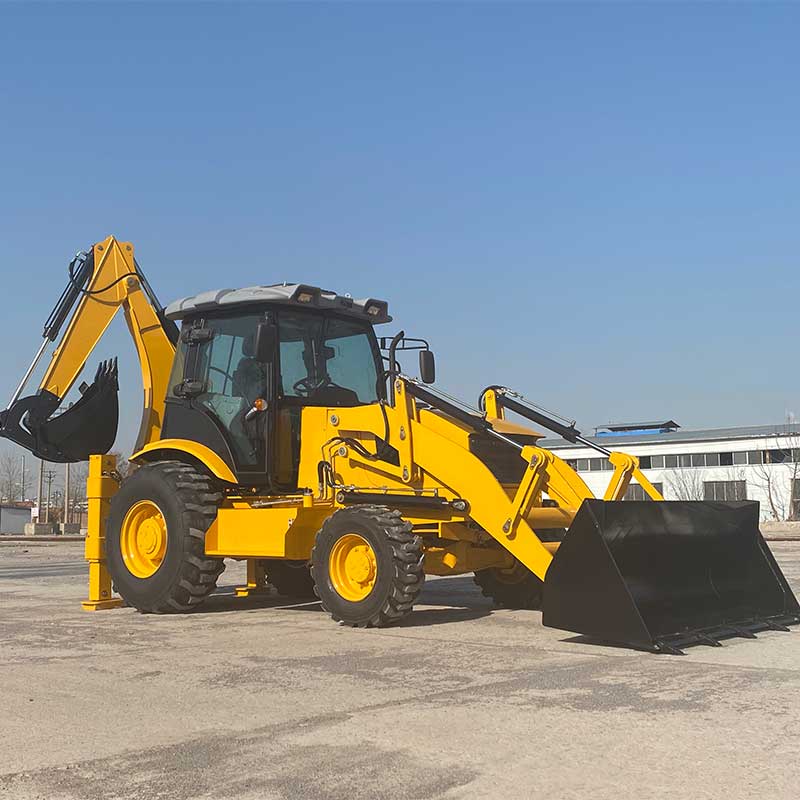

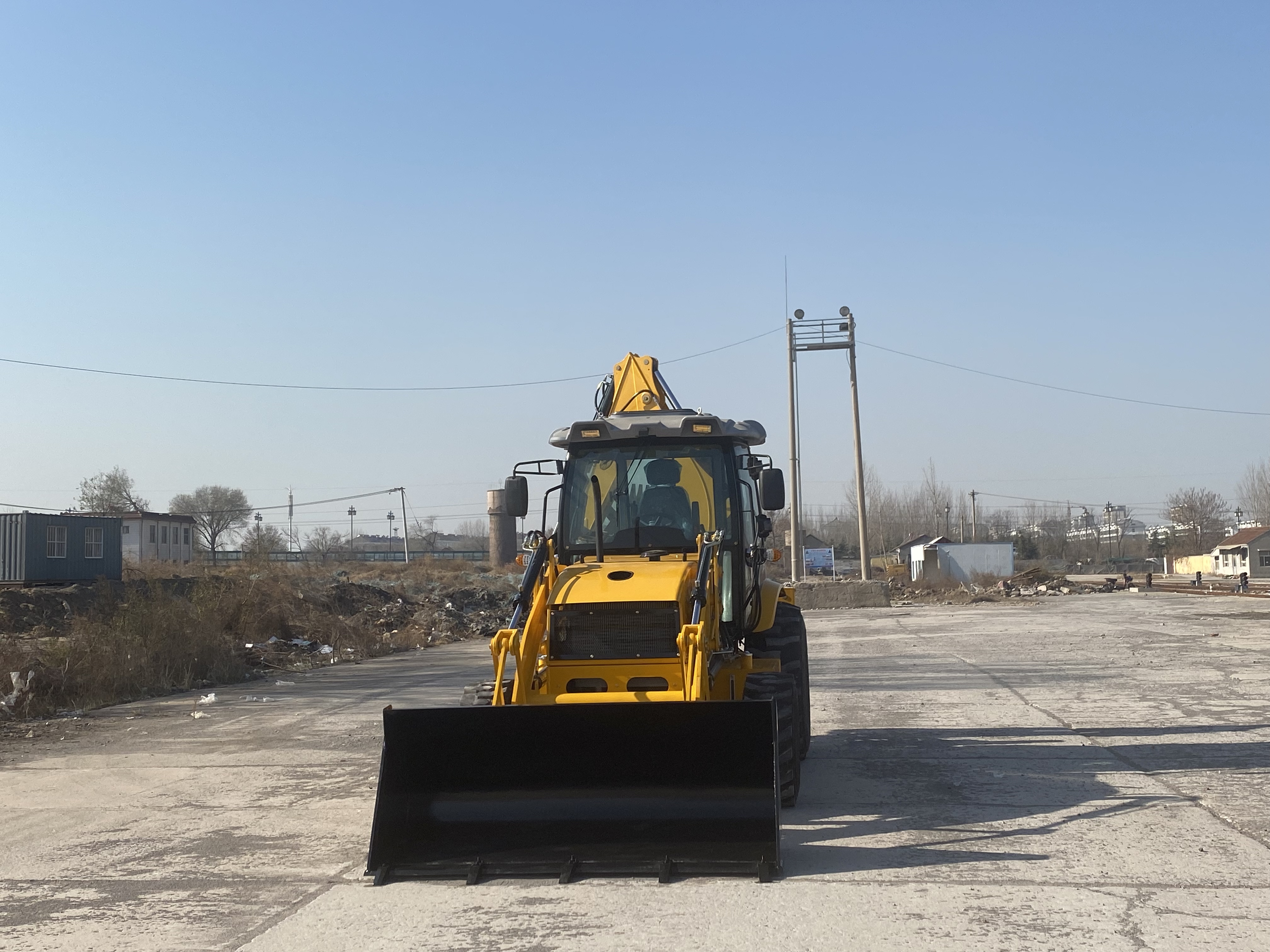

HT40-28 Backhoe Loader

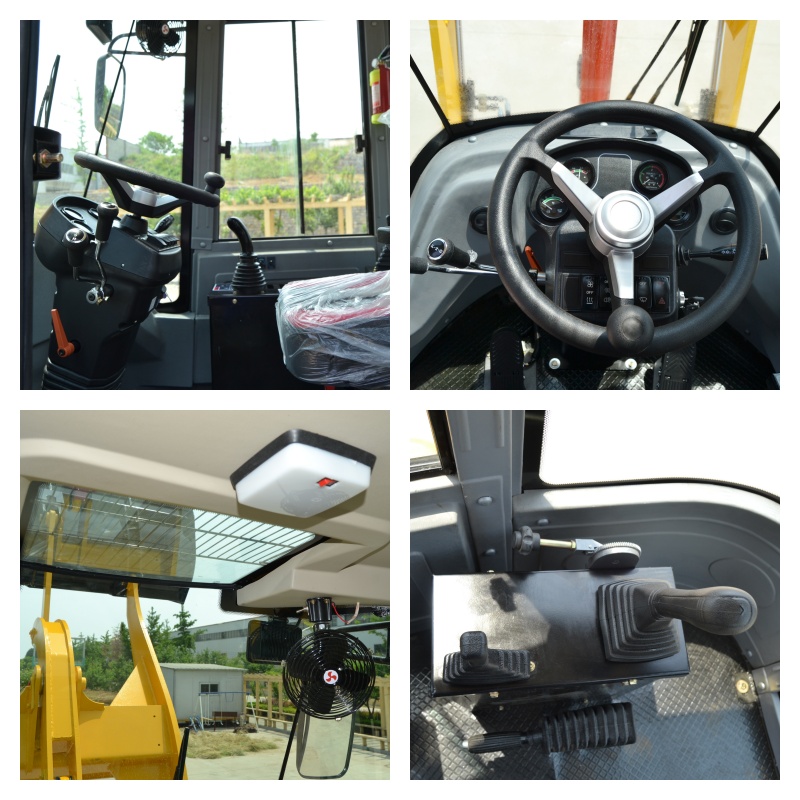

The one-piece frame design is more stable, which can ensure the smoothness of the equipment when digging and loading, and minimize the safety hazards and equipment loss due to the deformation of the frame. The operator can switch between loader and excavator operation modes by turning the seat. The cab is generally designed with negative pressure to minimize dust ingress and a four-sided glass structure to provide 360° panoramic view.
- Overview
- Parameter
- Details
- Related Products
Performance Characteristics
Strong power: Equipped with branded engine, the power output is abundant. The rated power can be up to 85kW, which can provide sufficient power for various operations such as digging and loading.
Excellent digging capacity: the bucket capacity is 0.35m³, and the maximum digging depth reaches 4100mm, with strong digging force, which can adapt to a variety of digging conditions.
High loading efficiency: bucket capacity of 1.5m³, loading and lifting capacity of 2800kg, can quickly complete the shoveling and transporting of materials, and improve operational efficiency.
Advanced hydraulic system: The advanced hydraulic system can realize low pressure and high flow or high pressure and low flow output to meet different operational requirements and improve working efficiency. And the excavating hydraulic system has the functions of electronically controlled clamping, hydraulic lock, buffer, one-way throttling and so on.
Applicable Scenarios
Building construction: it can be used in building foundation excavation, trench digging, material loading and unloading, etc.
Municipal engineering: in urban road construction, pipeline laying, greening projects, etc., it can be used for excavation, backfilling, material handling and other work.
Mining operations: in small mines or quarries, it can be used for ore mining, loading and short-distance transportation, etc.
Agricultural field: it is suitable for land leveling, ditch digging, loading and unloading of agricultural products in farms.
HT40-28 Backhoe Loader Parameter
|
Model:HT40-28 |
|||
|
Overall Operating Weight |
8000KG |
STEERING SYSTEM |
|
|
TRANSPORT DIMENSION |
Steering Angle |
±36° |
|
|
L*W*H |
8000×2200×2900mm |
Min. turning radius |
6581mm |
|
Wheel base |
2250mm |
Pressure of the system |
12Mpa |
|
Min. Ground Clearance |
300mm |
AXLE |
|
|
Bucket Capacity |
1.5m3 |
Brand |
FEICHENG YUNYU |
|
Breakout Force |
38KN |
Main Transmission Type |
Double Reduction |
|
Loading Lifting Capacity |
2800KG |
Final Reducer |
Single Stage Final Reducer |
|
Bucket Dumping Height |
2800mm |
Rated Loader of Axle |
4/18.5t |
|
Bucket Dumping Distance |
1062mm |
TRANSMISSION SYSTEM |
|
|
Digging Depth |
52mm |
TORQUE CONVERTER |
|
|
Backhoe Capacity(Width) |
0.35m3(620mm) |
Model |
YJ280 |
|
Max. Digging Depth |
4100mm |
Type |
Single-stage Three Elements |
|
Swing Angle of backhoe |
1900 |
Cooling Method |
Oil-cooling Pressure Circulation |
|
Max. Pulling Force |
39KN |
GEARBOX |
|
|
ENGINE |
Type |
Fixed Shaft Power Transmission |
|
|
Model |
YUCHAI |
Optional Gears |
Two Gears Ahead, Two Gears Astern |
|
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
Max. Speed |
30Km/h |
|
Rated Power |
85KW |
TYRE |
|
|
Optional engine
|
DONGFENG CUMMINS 75KW |
Model |
(F)14-17.5 /(R)19.5L-24 |
|
|
CUMMINS 92KW |
Pressure of Front wheel |
0.22 Mpa |
|
|
CUMMINS Euro3 75KW |
Pressure of Back Wheel |
0.22 Mpa |
|
HYDRAULIC SYSTEM |
BRAKE SYSTEM |
||
|
Pressure of Hydraulic System |
22Mpa |
Service Brake
|
Air Over Oil Caliper Brake |
|
Digging Power of Excavator Grab |
46.5KN |
|
External Type |
|
Digging Power of Dipper |
31KN |
|
Self-regulation |
|
Bucket Lifting Time |
5.4S |
|
Self-balance |
|
Bucket Lowering Time |
3.1S |
Emergency Brake
|
Operation Power Implementing brake |
|
Bucket Discharge Time |
2.0S |
|
Manual Operation Power Terminating Brake |
