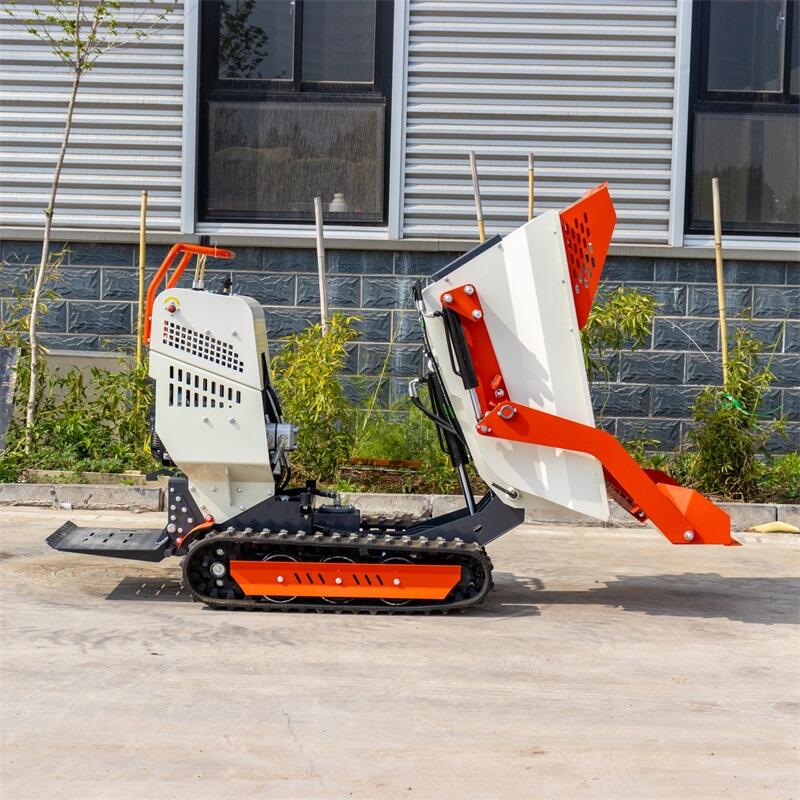

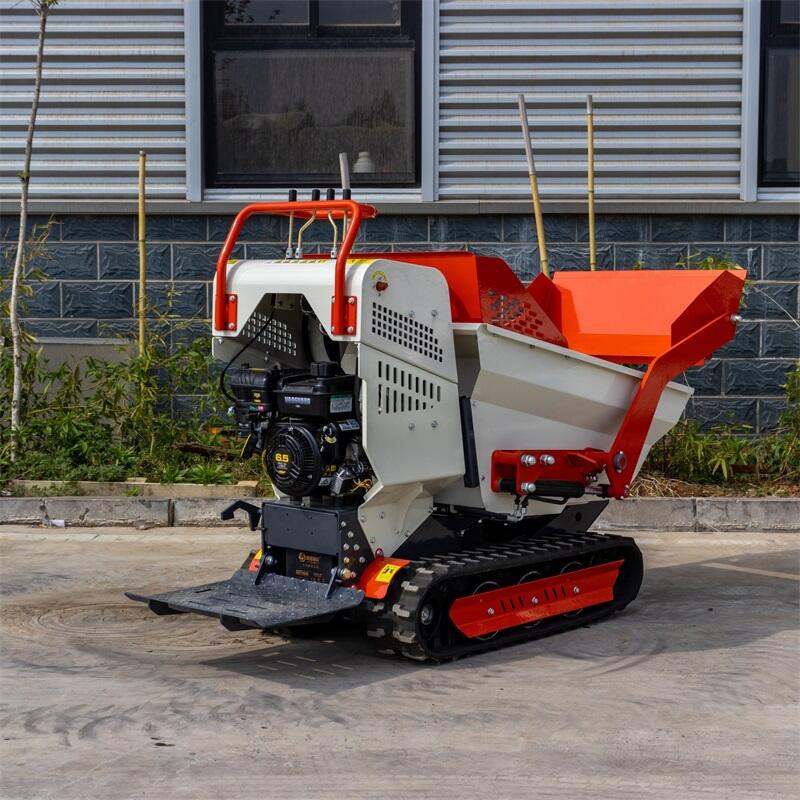

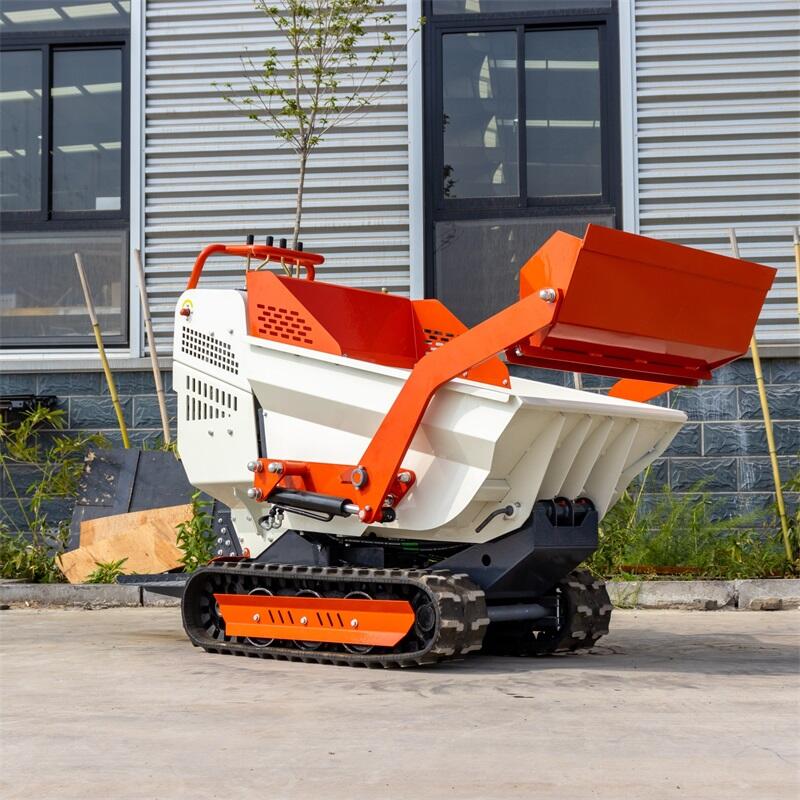

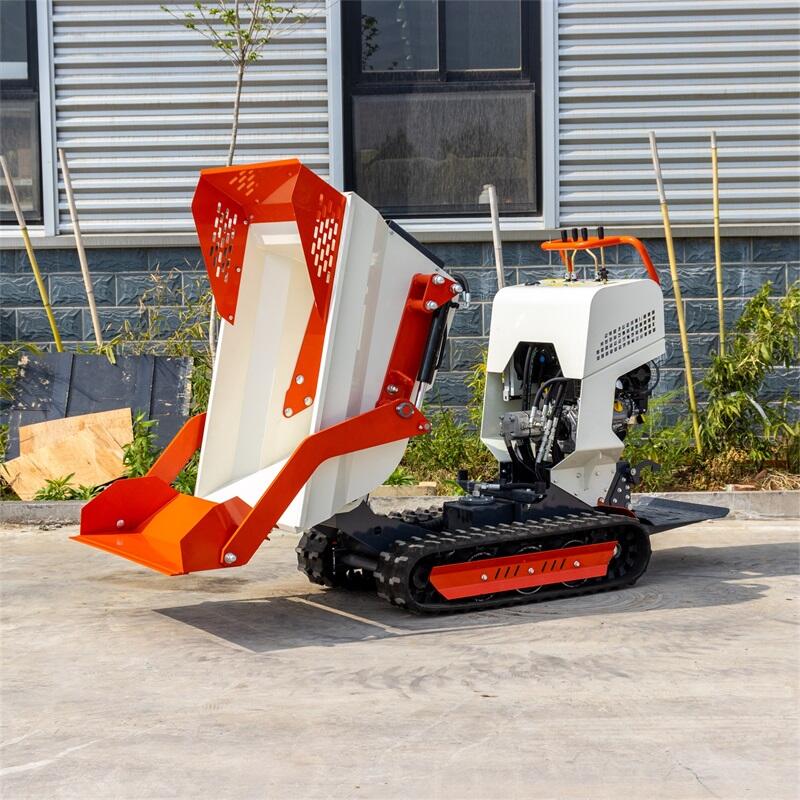

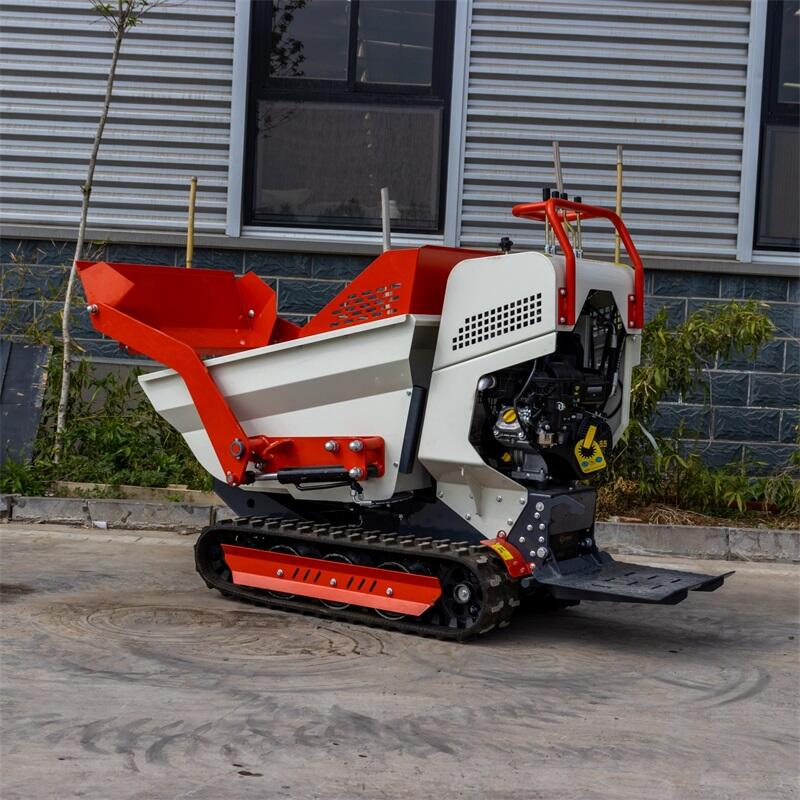

HT500-2 Mini Dumper

HT500-2 Mini Dumper Equipped with high efficiency power system, strong power, can easily deal with all kinds of terrain. The cargo box is reasonably designed, with the appropriate volume, and has the function of self-unloading, which is convenient for unloading and greatly improves the material handling efficiency. Easy to operate, reduce the threshold of labor, whether it is short-distance transportation of bricks, sand and gravel, or transfer fertilizers, branches and leaves, can be efficiently completed, is the right-hand man for small projects and material handling .

BRAND EFFICIENT ENGINE

Hightop Mini Crawler Dumper is powered by a premium brand engine with up to 4.2KW/3600rpm of power for powerful yet fuel-efficient operation and superior heat distribution.

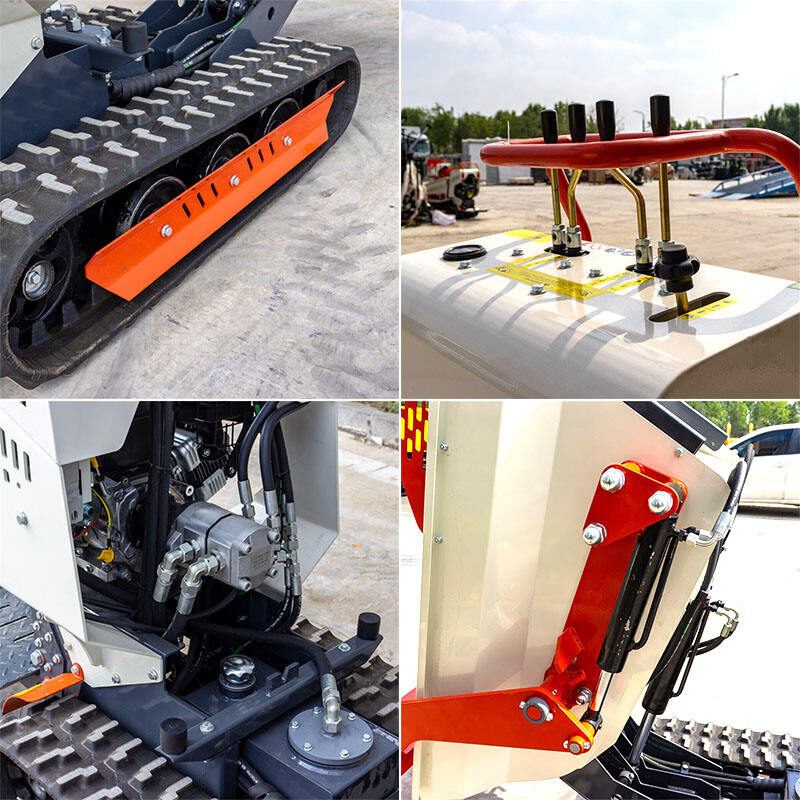

CUSTOMIZED TRANSITION GEAR

Customized transition gear box for easy engin startup with low ambient temperature.

SEPERATE HYDRAULIC CIRCUIT

Seperate hydraulic circuit for equipment traction

EASY TO OPERATE

Forward and reverse drive controls by handle

DETACHABLE HOPPER PROTECTION

Detachable hopper protection

FOLDABLE PLATFORM

Foldable platform for flexiable maneuver

PARAMETERS

Model:HT500-2

Engine:Briggs&Stratton

Cooling mode:Air-cooled

Fuel :Gasoline

Emission: Euro 5/EPA

Loading capacity:500kg

Box length:816mm

Box width:680mm

Box depth:620mm

Box type Integrated/one-piece

Track width:180mm

Flow of pump:6L/min

Mini Dumper weight:413kg

Overall dimension(L*W*H):1056*700*1225mm

Start mode:Manual/Electric starter

Driving type:Hydraulic

Steering mode:Hydraulic

Unload mode:Hydraulic
