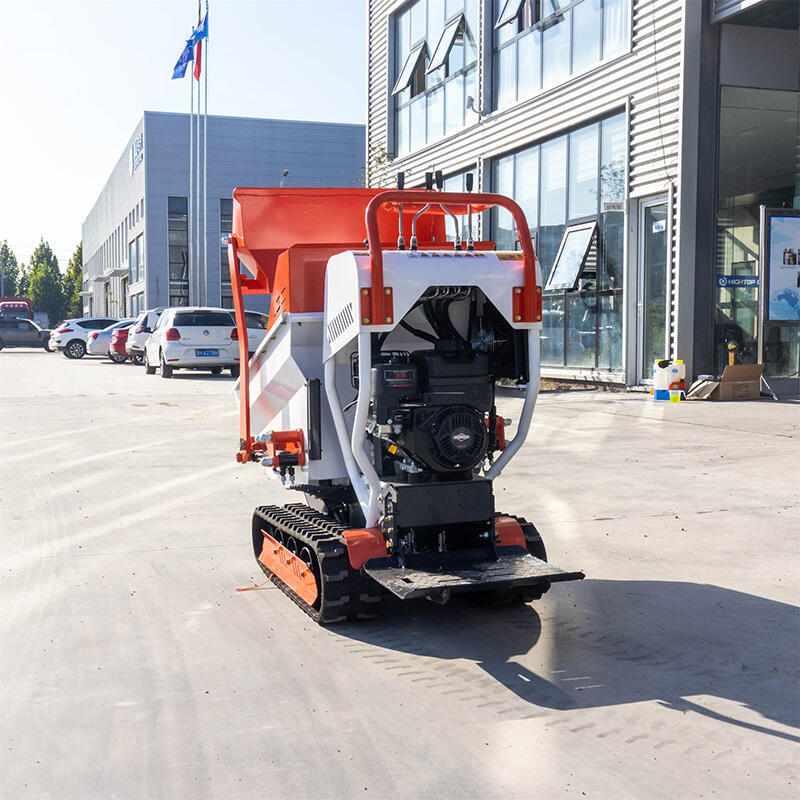

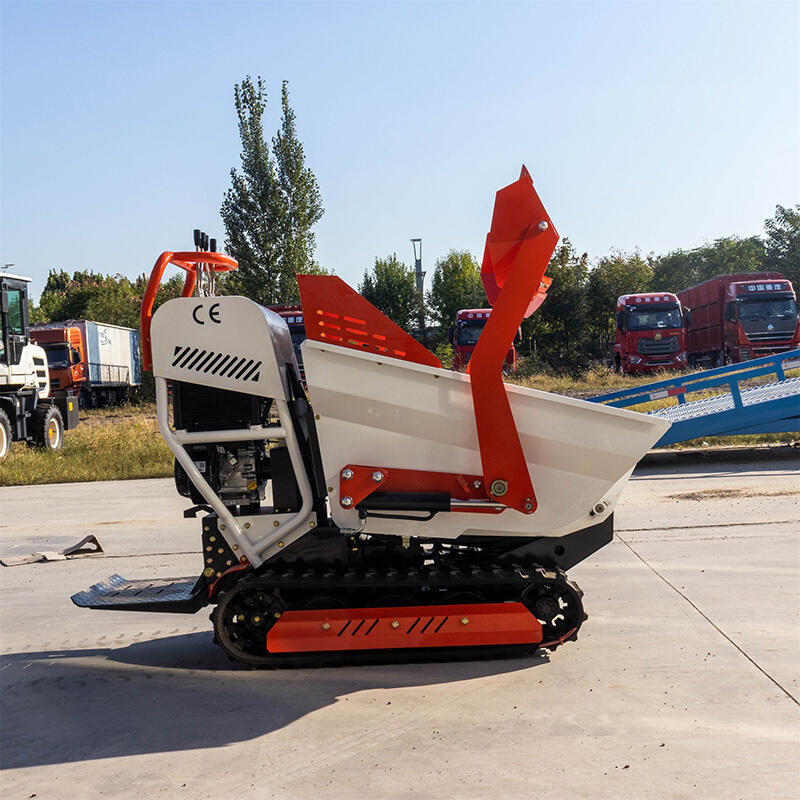

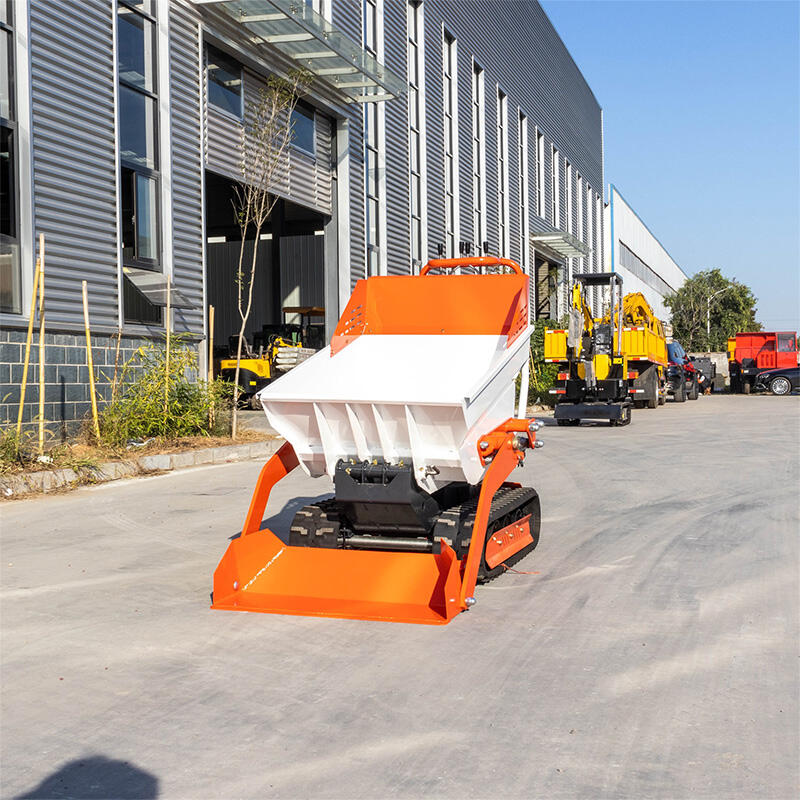

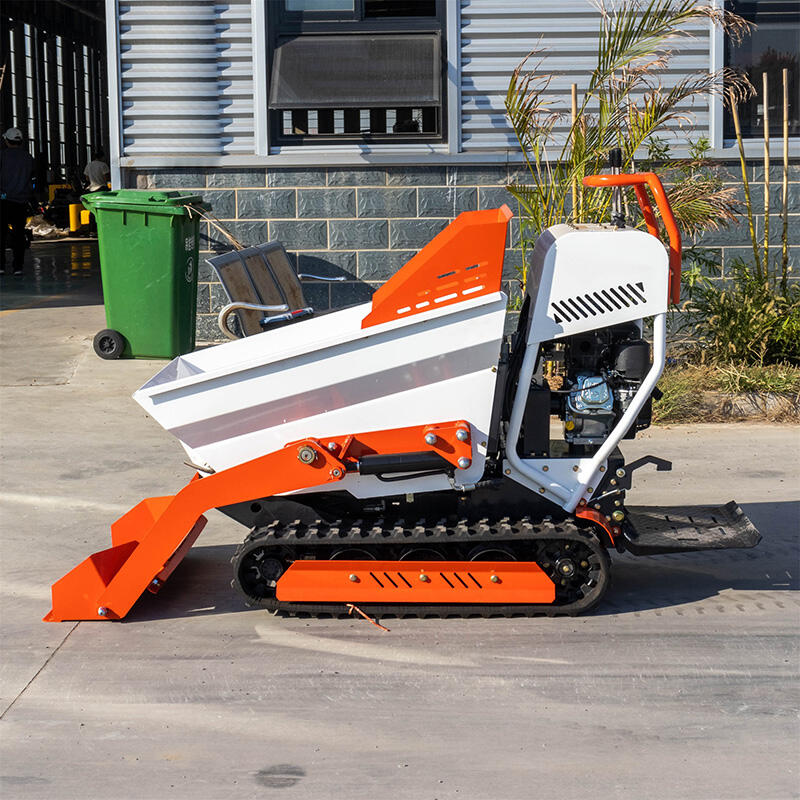

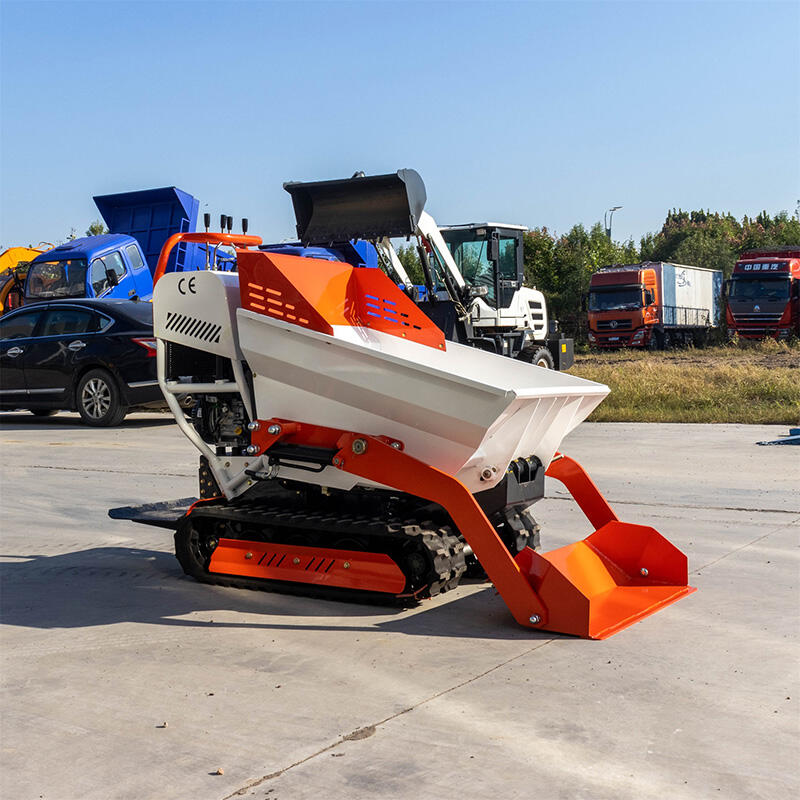

HT500-3 Mini Crawler Dumper

The HT500-3 mini crawler dumper, which is specially designed to cope with tricky material handling tasks, is a practical equipment that can be useful in many scenarios.

  • Overview
  • Related Products

In terms of power, it is equipped with a strong power system, which can output sufficient power despite its small size, ensuring stable operation in all kinds of complicated terrain. Whether it's climbing slopes and hurdles, or traveling on muddy and soft ground, it's no problem, and the stability and reliability of the power is commendable.

The load capacity is also excellent, with a sizable carrying capacity, can easily load a large amount of materials. Whether it's gravel and bricks from construction sites, fertilizers and agricultural products in the agricultural field, or soil and greenery in landscaping projects, all can be transported efficiently.

Its track design is a highlight. The large contact area between the tracks and the ground and the low pressure can effectively reduce the damage to the ground, which is especially suitable for the operation in the fragile lawn, mud and other sites. At the same time, the tracks provide a strong grip, which greatly enhances the vehicle's passability on uneven or slippery roads, and compared with wheeled vehicles, it is more stable and less likely to slip or get into trouble.

In terms of operation, the HT500-3 mini tracked dump truck is very easy to use, even for operators without rich experience, they can get started quickly. Its self-unloading function is even more convenient, just a simple operation, you can easily complete the unloading, greatly improving the work efficiency. Whether it is small construction, garden maintenance, or material handling in agricultural production, HT500-3 mini crawler tipper can become the user's right-hand man by virtue of its own advantages, providing a reliable solution for material handling under various complicated working conditions.

Mini Dumper Parameter

MASSES



Max. operating mass

860 kg

Transport mass

360 kg

DIMENSIONS



Overall (LxWxH)

2112x832x1344 mm

Transport dimensions(LxWxH)

1480x832x1344 mm

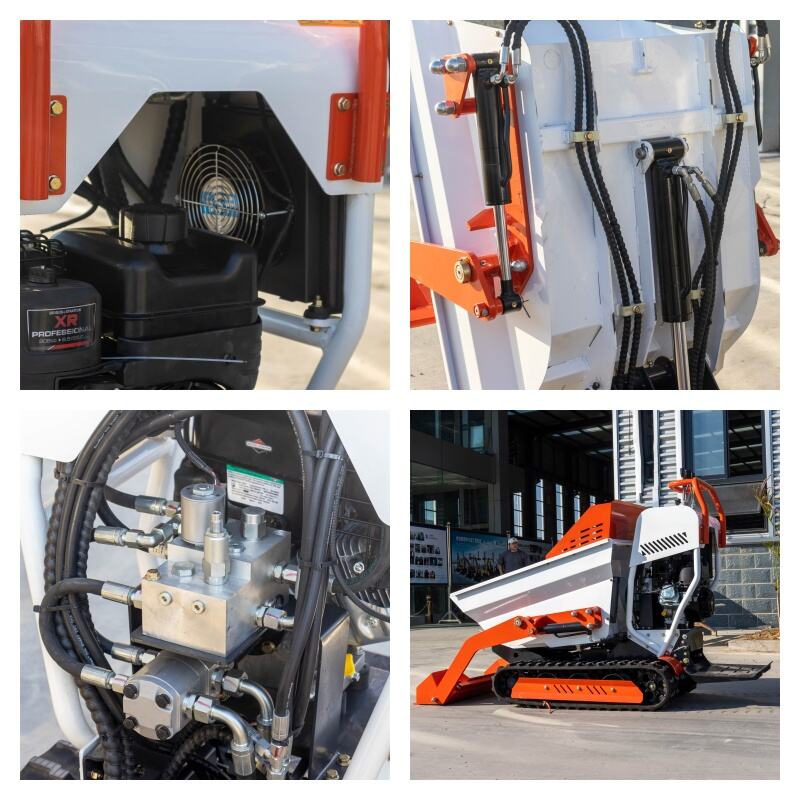

HYDRAULIC



Pump

Tandem gear pump (4cc x2) 3600rpm

Motor

Disc distribution cycloid motor (x2)

Working pressure

Max. 180 bar

Hydraulic flow

28.8 L

Motor torque

645 Nm each at 180 bar

TRACTION



Driving

Hydraulic

Steering

Fully hydraulic / control valve

Forward

3.2 km/h

Reverse

3.2 km/h

Gradeability

15 ⁰

Ground clearance

71 mm

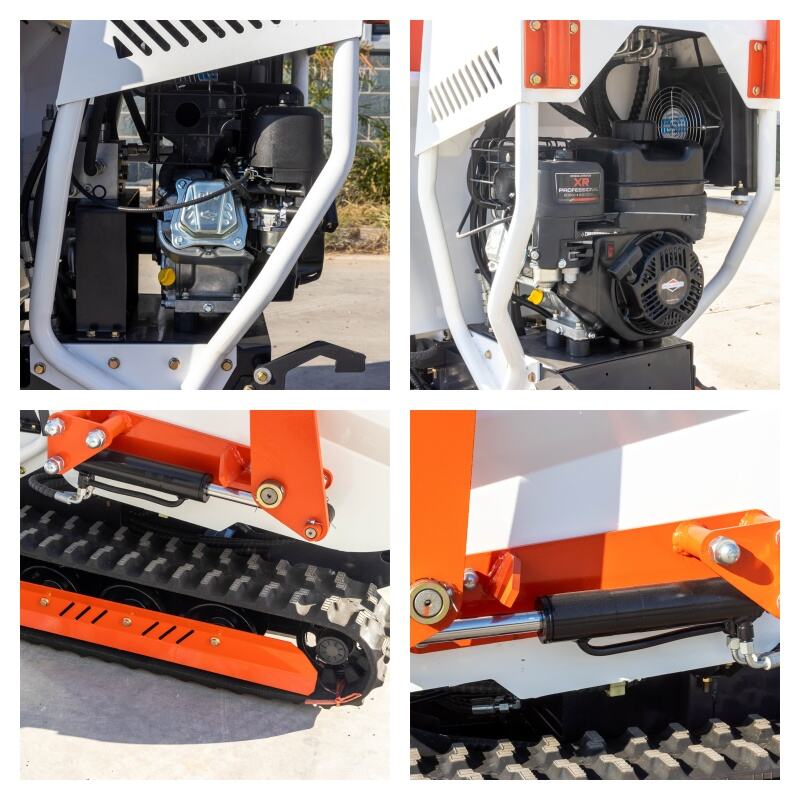

ENGINE



Model

Briggs & Stratton Engine

Emission accordance

EPA

Rated power

6.5 HP

Displacement

208 cc

Cylinder x stroke

68.3x55.9 mm

Fuel tank volumn

3.1 L

Oil volume

0.6 L

Net weight

16 Kg

Startup

Reversing & E-starter

HOPPER



Hopper volumn

270 L

STANDARD CONFIG.



1)Seperate hydraulic circuit for equipment traction



2)Forward and reverse drive controls by handle



3)Customized transition gear box for easy engin startup with low ambient temperature





4)Option with reverse startup and electric



5)Foldable platform for flexiable maneuver



6)Detachable hopper protection
