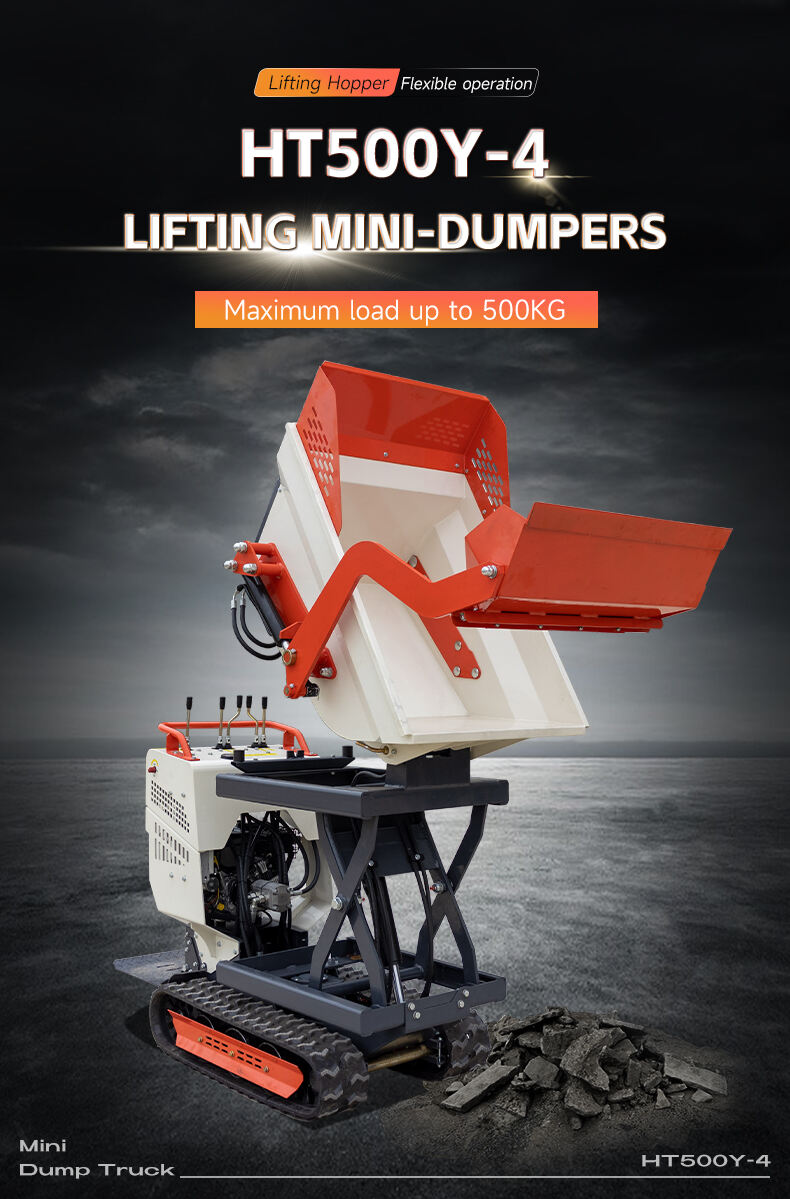

HT500Y-4 Lift Mini Dumper
HT500Y-4 Lift Mini Dumper is a powerful assistant for material handling in narrow space. It is compact and flexible enough to maneuver through narrow construction sites, orchards and gardens. Equipped with Briggs & Stratton 6.5 hp engine, it is powerful enough to cope with all kinds of complicated terrains, with a climbing angle of up to 25°.
- Overview
- Related Products

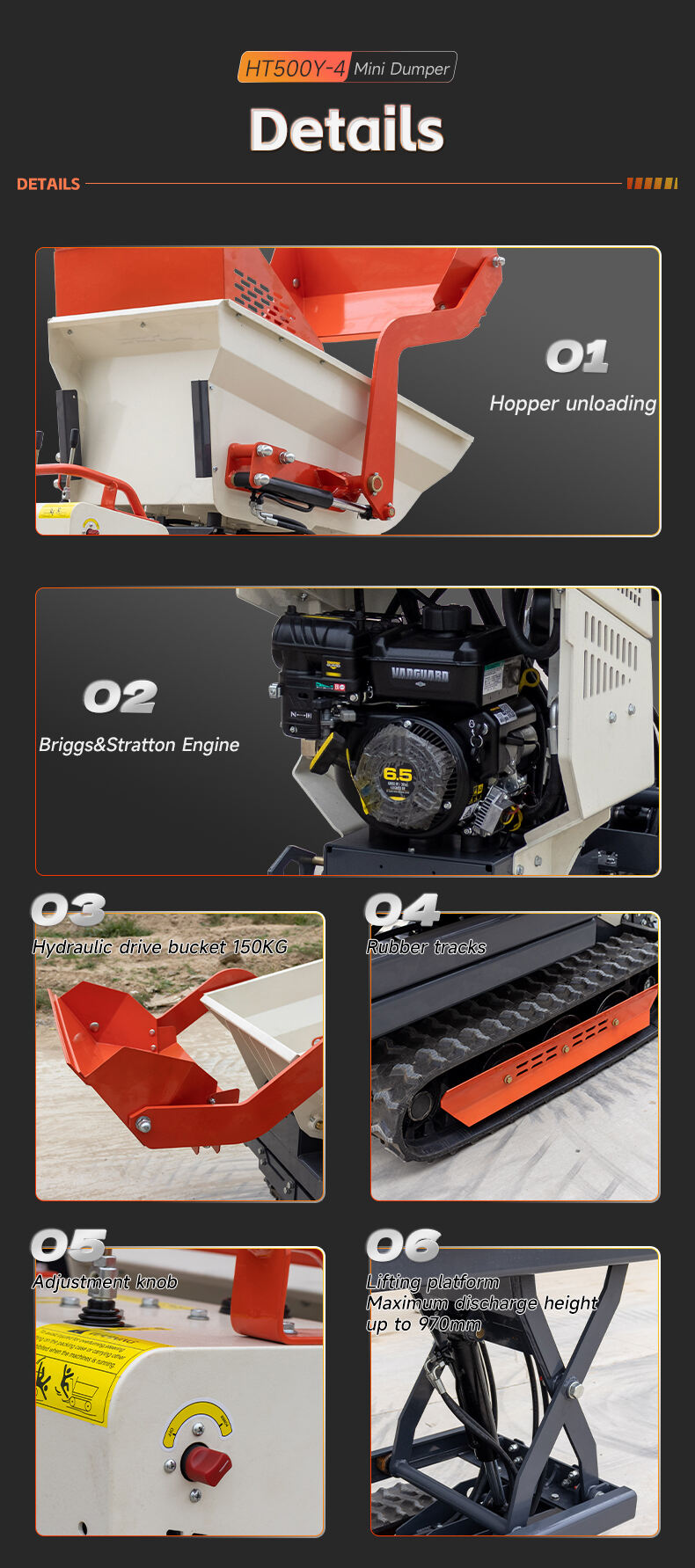

BRIGGS & STRATTON ENGINE
With a Briggs & Stratton engine, our mini crawler dumper delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease. Enjoy smooth operation, minimal vibrations, and long-lasting durability.

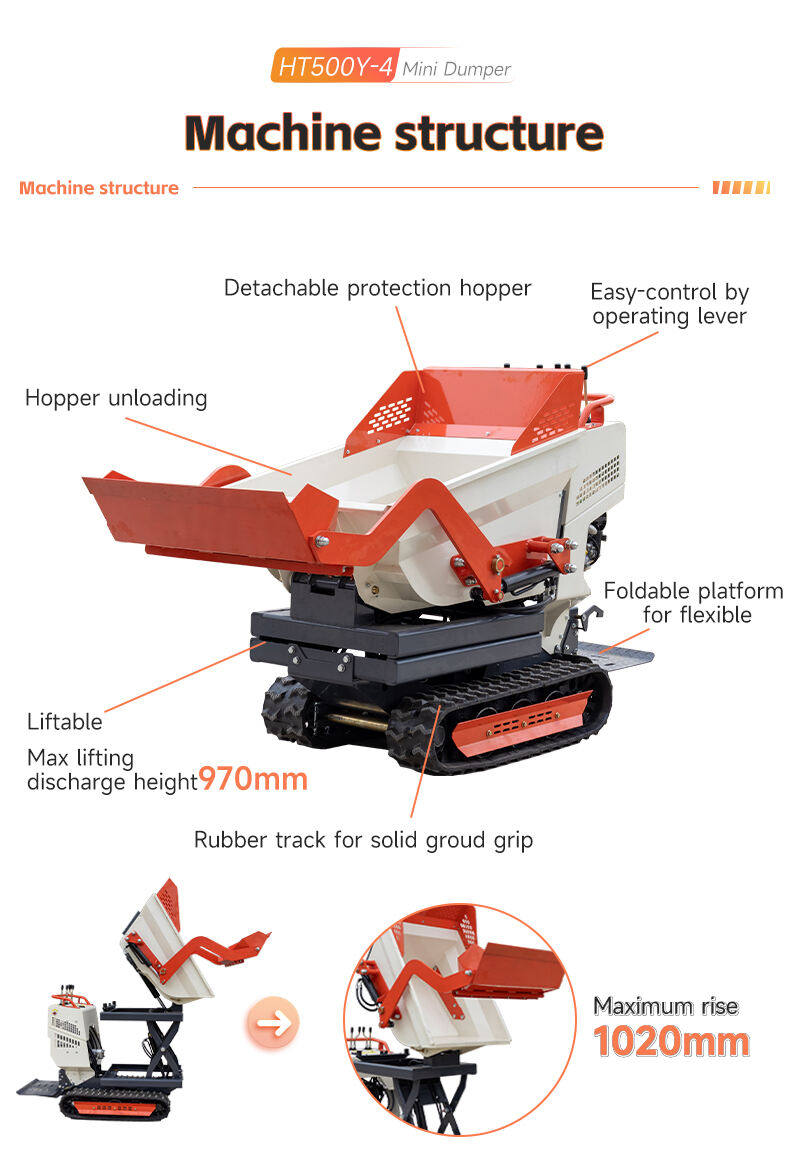

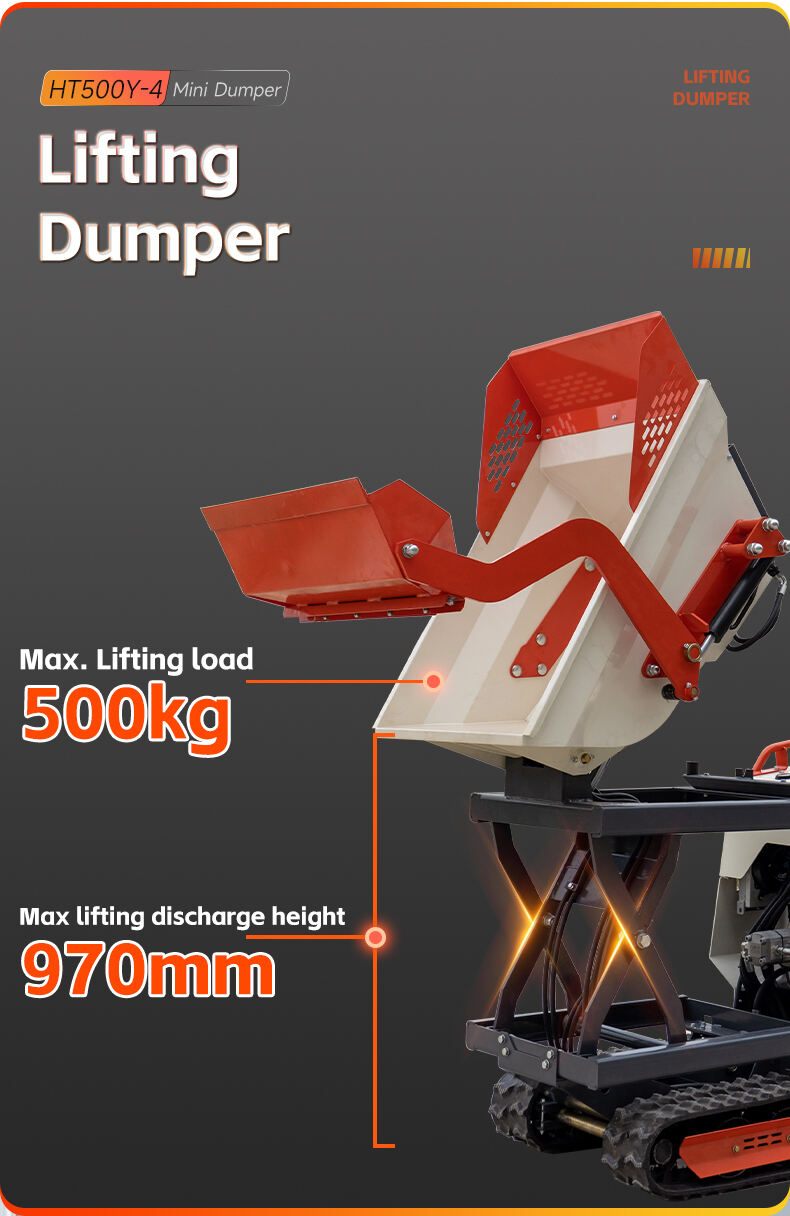

970MM MAX LIFTING DISCHARGE HEIGHT
With an unloading height of up to 970mm, this Hightop mini dumper helps you to load and unload materials from heights with ease.
HIGH SECURITY
HT500Y-4 lift dump truck is designed with multiple safety protection measures, such as non-slip tires, braking system, warning lights, etc., to ensure safe operation.

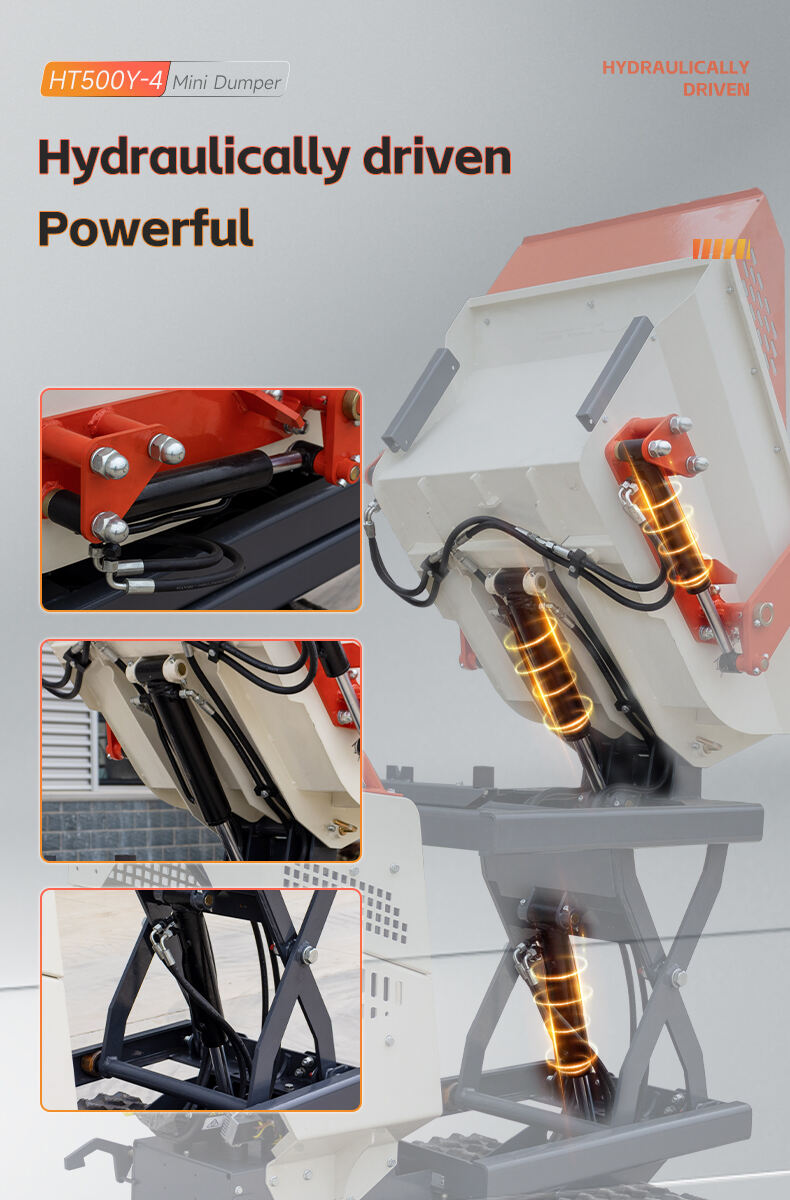

POWERFUL LOADING AND UNLOADING
Revolutionize your workflow with our hydraulic tipping and retraction feature, easily controlled by a single button. Say goodbye to labor-intensive tipping and complex controls. Designed for contractors who value efficiency, this innovation simplifies tasks, enhancing precision and convenience for smarter project execution.
500KG LOADING CAPACITY
Maximize efficiency on the job with the crawler dumper, boasting a formidable 500kg load capacity, enabling you to transport hefty materials in fewer trips and significantly cut down on project time. This dumper is the ultimate tool for elevating your operational productivity to new levels.

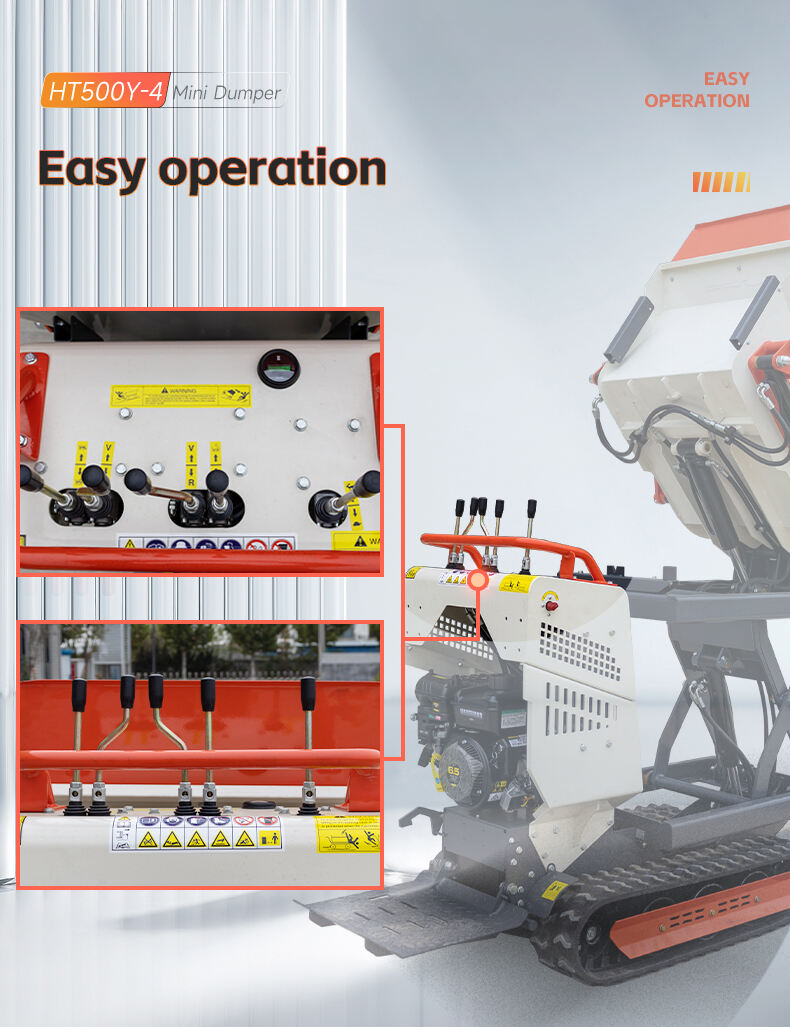

EASY TO OPERATE
Adapt to any environment with our mini dumper’s flexible dimensions. Its compact design allows it to maneuver easily in tight spaces and challenging terrains, making it perfect for diverse work sites. Whether working in confined areas or expansive projects, this adaptability ensures optimal performance and efficiency, enhancing your project’s versatility and ease of operation.

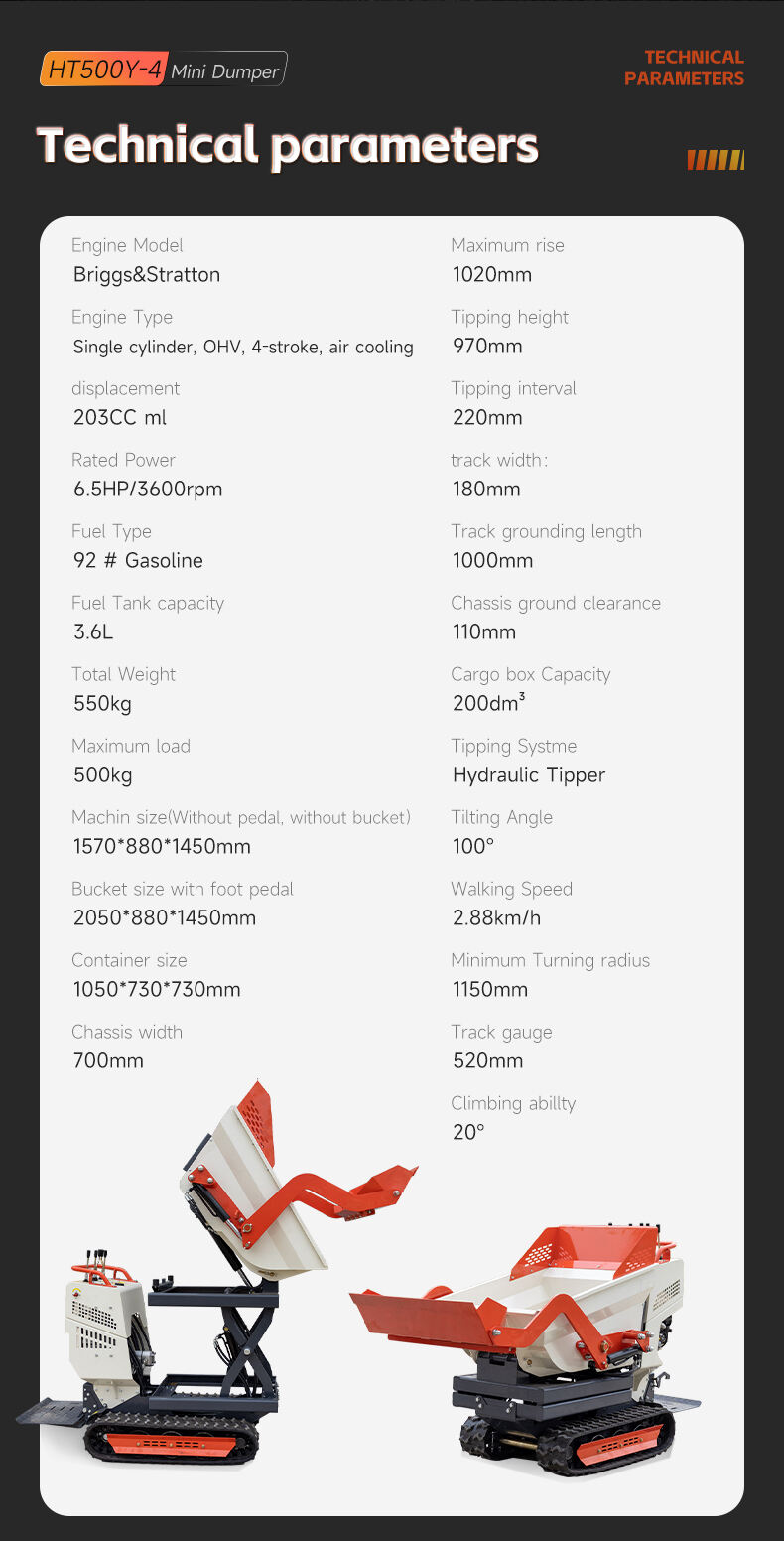

PARAMETERS
Model:HT500Y-4
Engine Model Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 203CC
Rated Power 6.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 3.6L
Total Weight 550kg
Maximum load 500kg
Machin size（Without pedal, without bucket） 1570*880*1450m
Bucket size with foot pedal: 2050*880*1450mm
Container size： 1050*730*730mm
Chassis width： 700mm
Maximum rise 1020mm
Tipping height 970mm
Tipping interval 220mm
Track data
track width： 180m
Track grounding length： 1000m
Chassis ground clearance: 110mm
Cargo box Capacity 200dm³
Tipping Systme Hydraulic Tipper
Tilting Angle 100°
Walking Speed 2.88km/h
Minimum Turning radius 1150mm
Track gauge 520mm
Climbing abillty 20°
