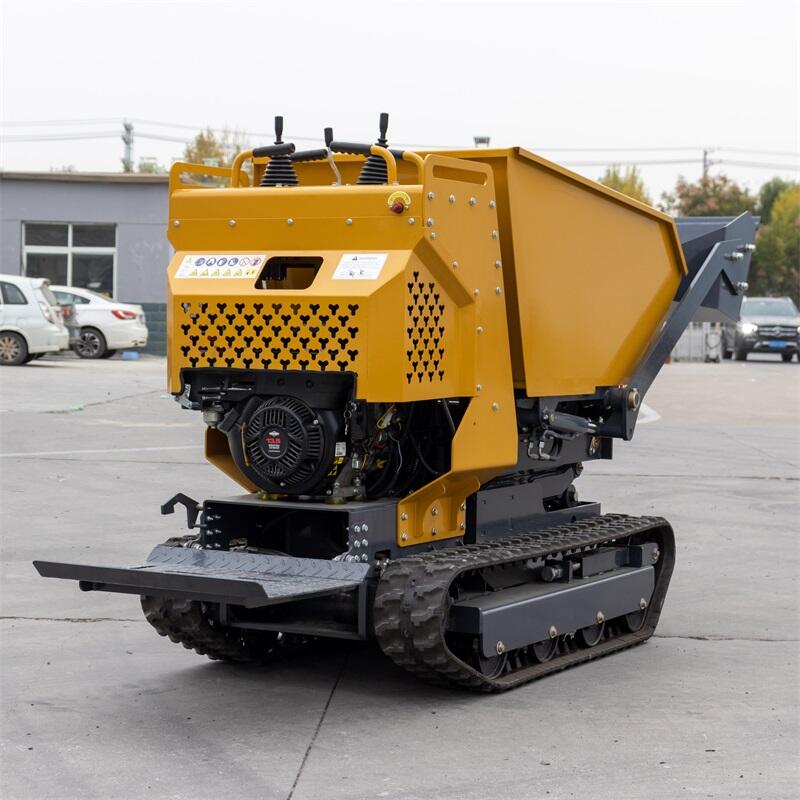

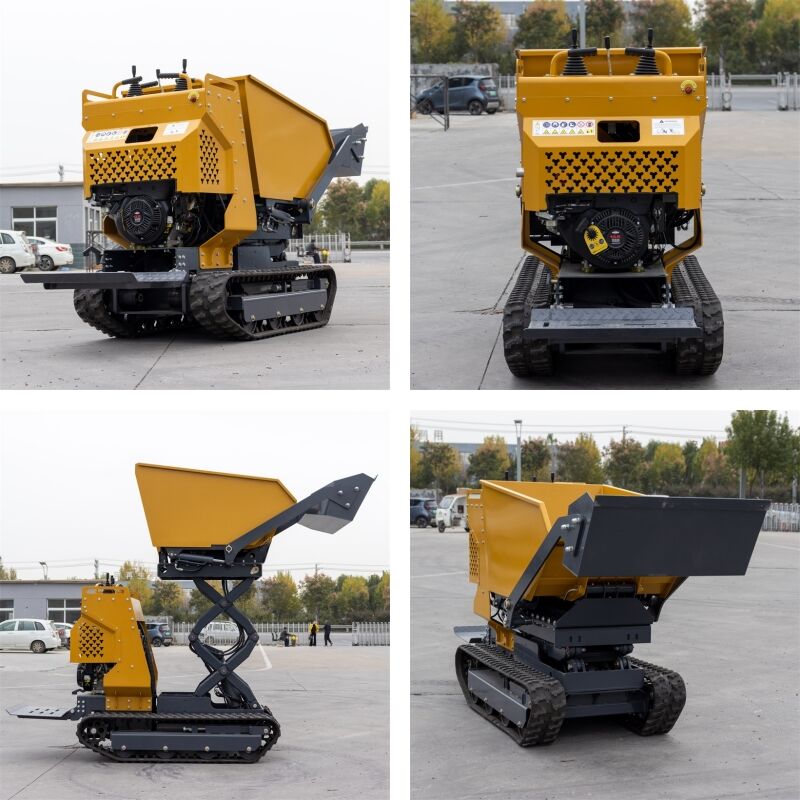

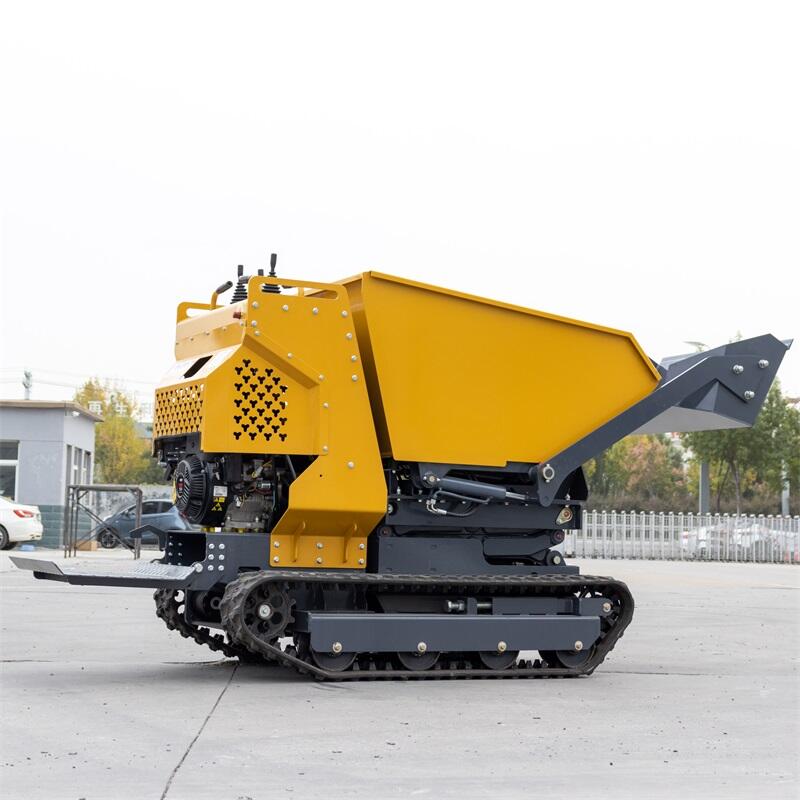

HT500Y-5 Lift Mini Dumper

BRIGGS & STRATTON ENGINE

With a Briggs & Stratton engine, our mini crawler dumper delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease. Enjoy smooth operation, minimal vibrations, and long-lasting durability.

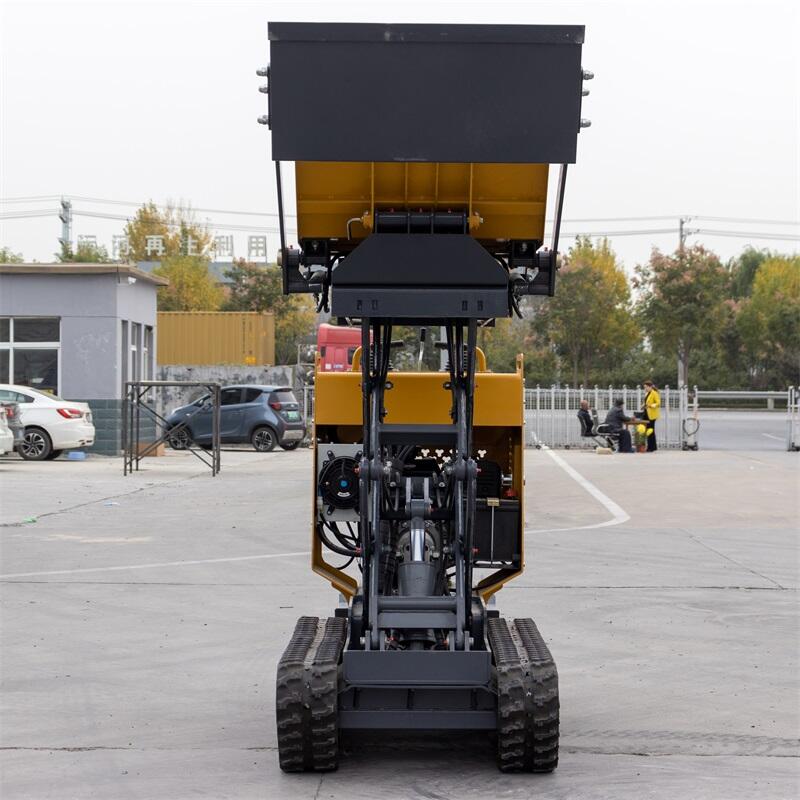

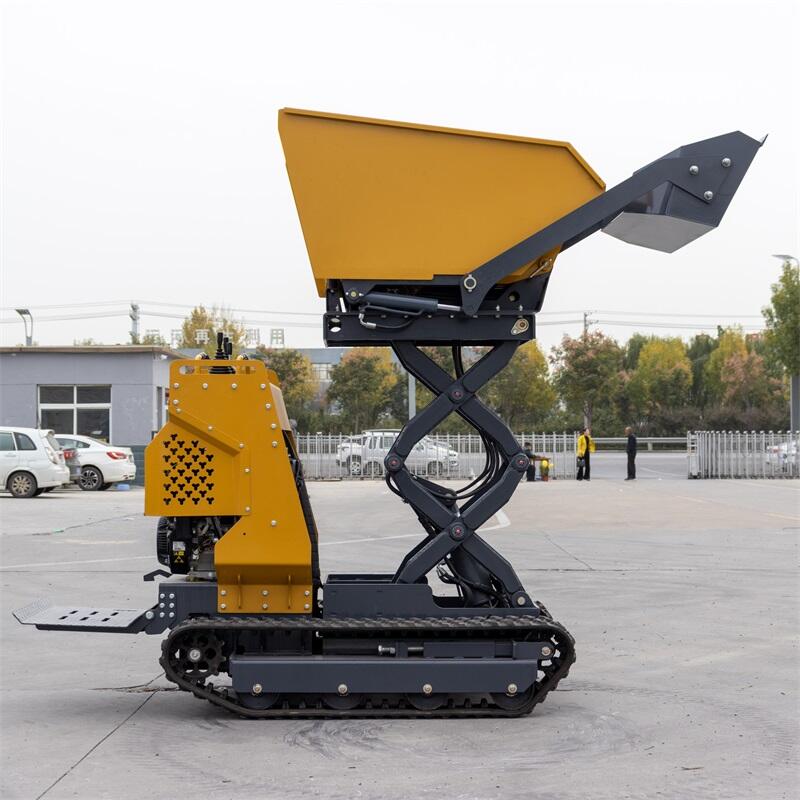

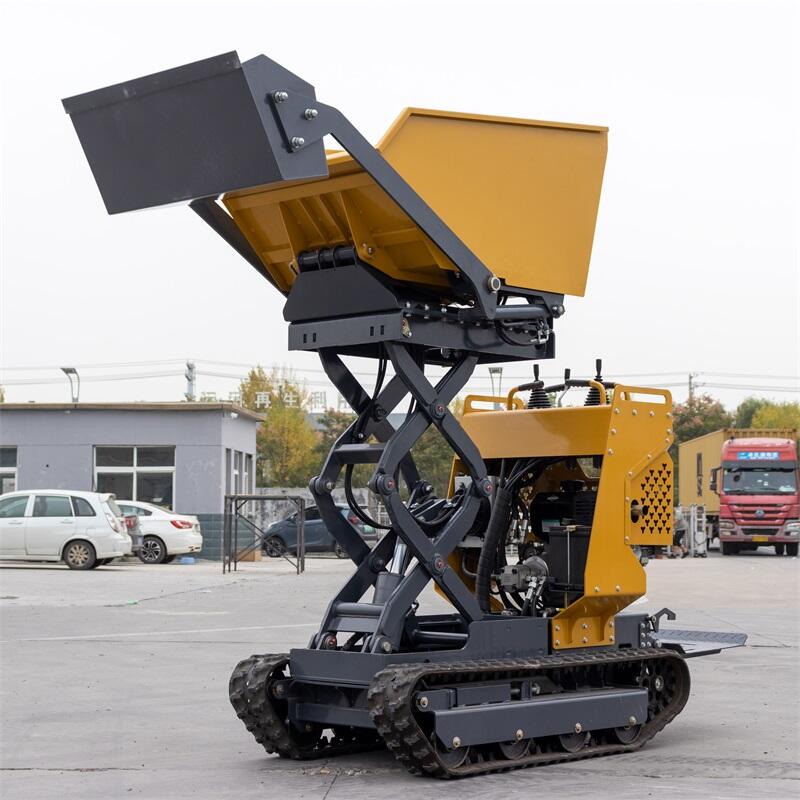

1500MM MAX LIFTING DISCHARGE HEIGHT

With an unloading height of up to 1500mm, this Hightop mini dumper helps you to load and unload materials from heights with ease.

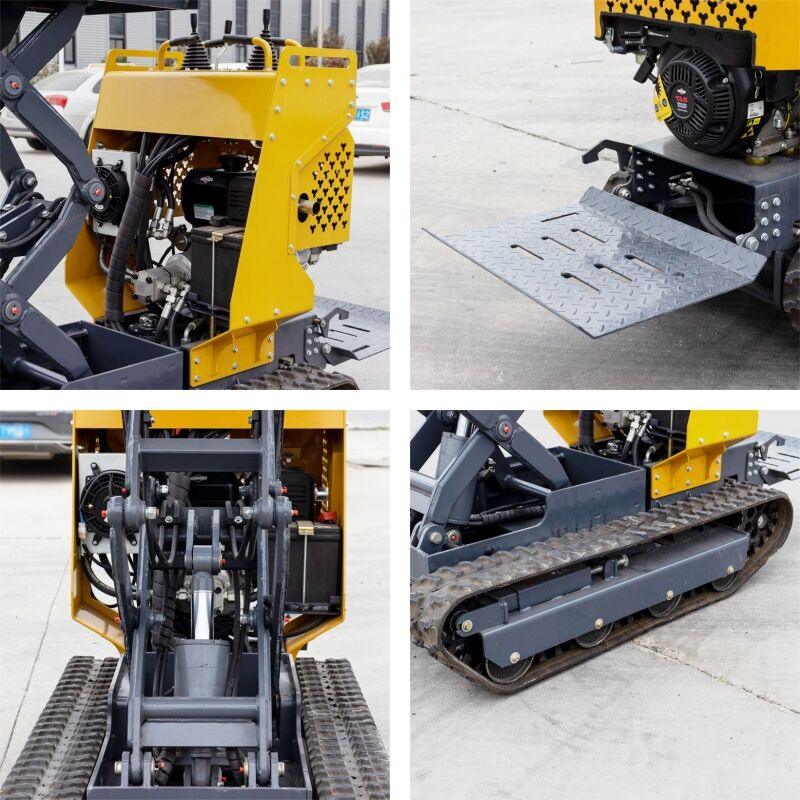

FOLDABLE PLATFORM

This HIHGTOP crawler dumper uses foldable foot hold, which can be folded to help you quickly pass through steep and narrow road sections.

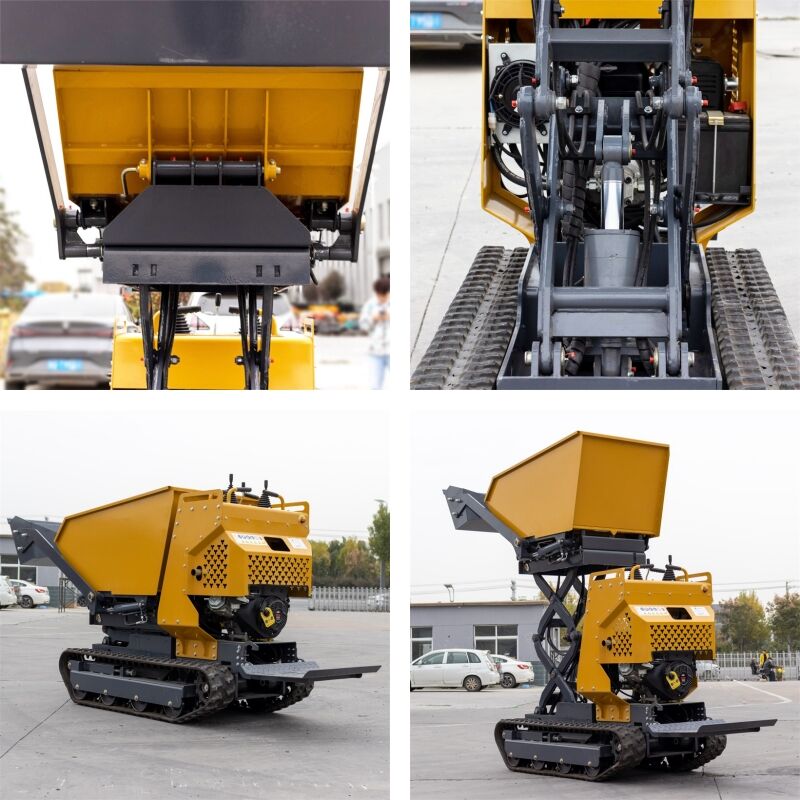

POWERFUL LOADING AND UNLOADING

Revolutionize your workflow with our hydraulic tipping and retraction feature, easily controlled by a single button. Say goodbye to labor-intensive tipping and complex controls. Designed for contractors who value efficiency, this innovation simplifies tasks, enhancing precision and convenience for smarter project execution.

500KG LOADING CAPACITY

Maximize efficiency on the job with the crawler dumper, boasting a formidable 500kg load capacity, enabling you to transport hefty materials in fewer trips and significantly cut down on project time. This dumper is the ultimate tool for elevating your operational productivity to new levels.

VERSATILE DIMENSIONS FOR ANY SPACE

Adapt to any environment with our mini dumper’s flexible dimensions. Its compact design allows it to maneuver easily in tight spaces and challenging terrains, making it perfect for diverse work sites. Whether working in confined areas or expansive projects, this adaptability ensures optimal performance and efficiency, enhancing your project’s versatility and ease of operation.

PARAMETERS

Model:HT500Y-5

Engine Model:BRIGGS STRATTON 420

Engine Type:Single cylinder, OHV, 4-stroke, air cooling

displacement :420CC

Rated Power:13.5HP/3600rpm

Fuel Type:92 # Gasoline

Fuel Consumption:≤0.7g/kw·h

Fuel Tank capacity:6.5L

Engine oil capacity:1.1L

Total Weight:880kg

Max loading weight horizontal transport:1000kg

Max. Lifting load:550kg

Machin size（Without pedal, without bucket）:1800*880*1920mm

Bucket size with foot pedal:2700*880*1920mm

Container size：1220*800*600mm

Chassis width：850mm

Max lifting discharge height:1500mm

Tipping interval:350mm

track width：180mm

Track grounding length：915mm

Chassis ground clearance: 100mm

Cargo box Capacity:290dm³

Tipping Systme:Hydraulic Tipper

Tilting Angle;100°

Walking Speed :3km/h

Minimum Turning radius:1300mm

Track gauge:670mm

Chassis ground clearance:100mm

Climbing abillty:25km/h

Hydraulic tank capacity:12L
