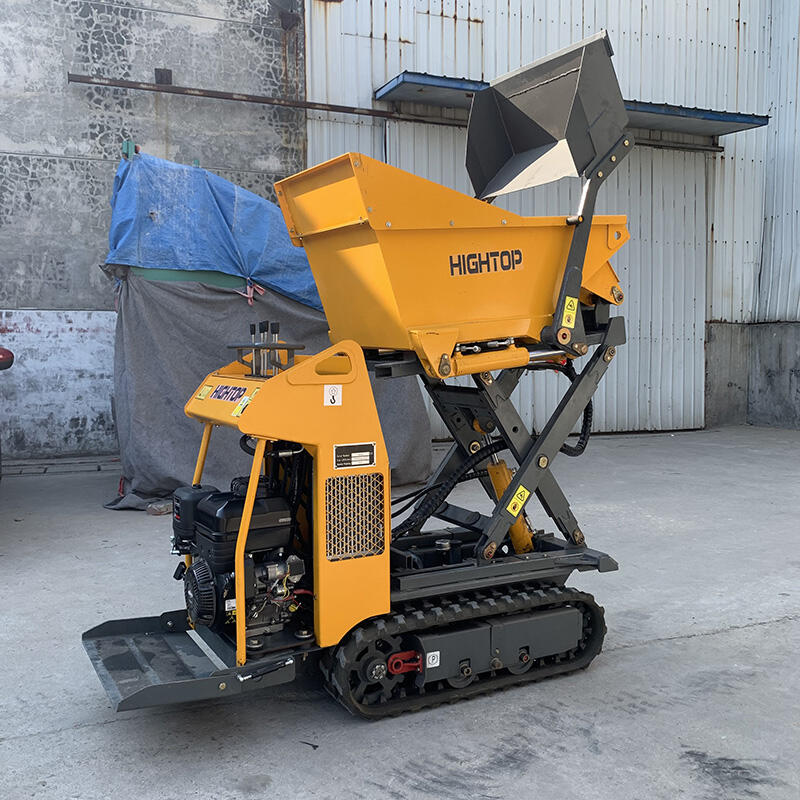

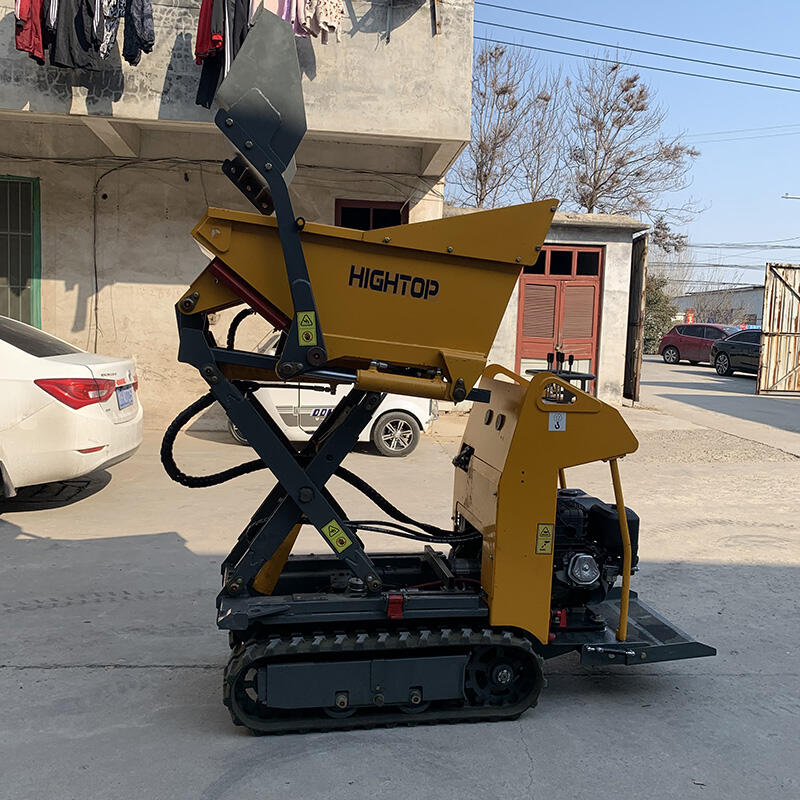

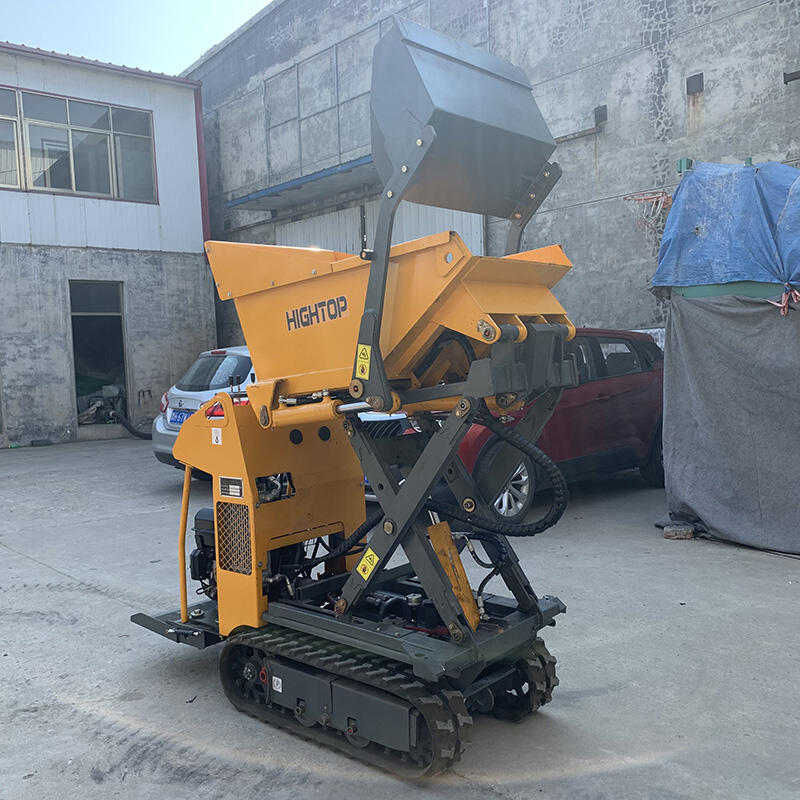

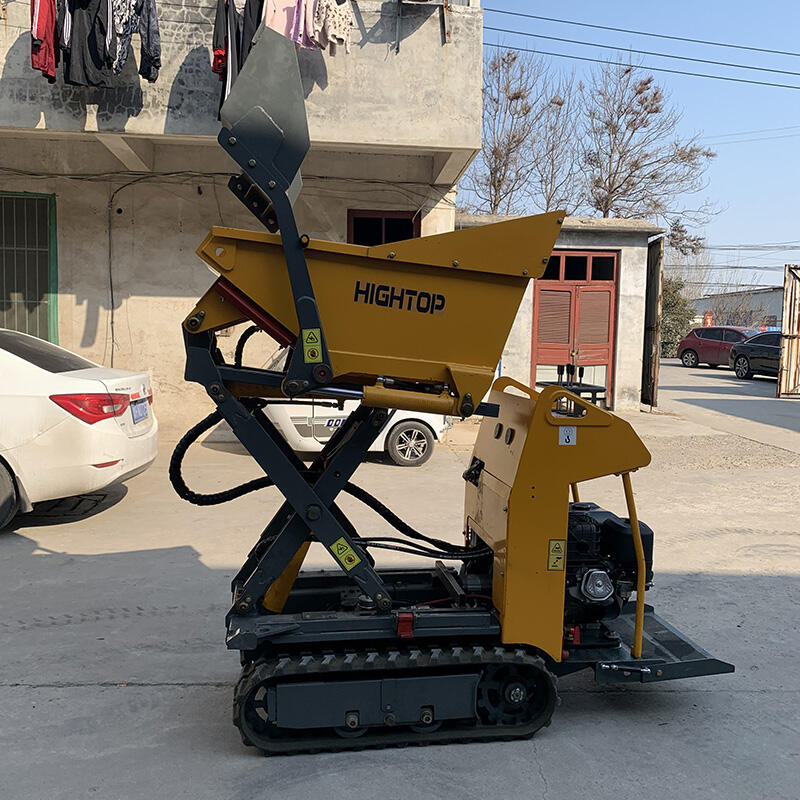

HTD5050 Crawler Dumper

The core of power is Briggs & Stratton's GM170F engine, which can output 4.2KW power at 3600RPM, and its 212cc displacement is matched with 92# gasoline, which makes it powerful and economical. Fuel consumption per kWh is ≤0.395 grams, and with a 3.6L fuel tank capacity, it can meet the needs of long-time operation. 0.6L engine oil capacity ensures the stable operation of the engine.

In terms of loading, it has excellent performance, with a maximum loading capacity of 500KG and a cargo tank capacity of 200dm³, which can easily carry gravel and cement from construction sites, or soil and plants from landscaping. The hydraulic tipping system makes unloading efficient and convenient, and the 100-degree tipping angle can empty the cargo box quickly.

In terms of mobility, the travel speed of 2.88km/h is not fast, but it is easy to maneuver precisely when working in a narrow space, and the minimum turning radius of 1.15m gives the vehicle excellent agility, allowing it to steer freely in a confined area. 52cm track spacing and 10cm minimum ground clearance, together with the 20-degree climbing ability, enable the vehicle to climb up slopes in complex terrain such as muddy and rugged roads, or areas with stable slopes, all of which can be easily carried by the truck. The 15L capacity 46# hydraulic oil tank provides stable power for the hydraulic system to ensure the smooth operation of driving, steering and dumping.

HTD5050 Crawler Dumper Parameter
