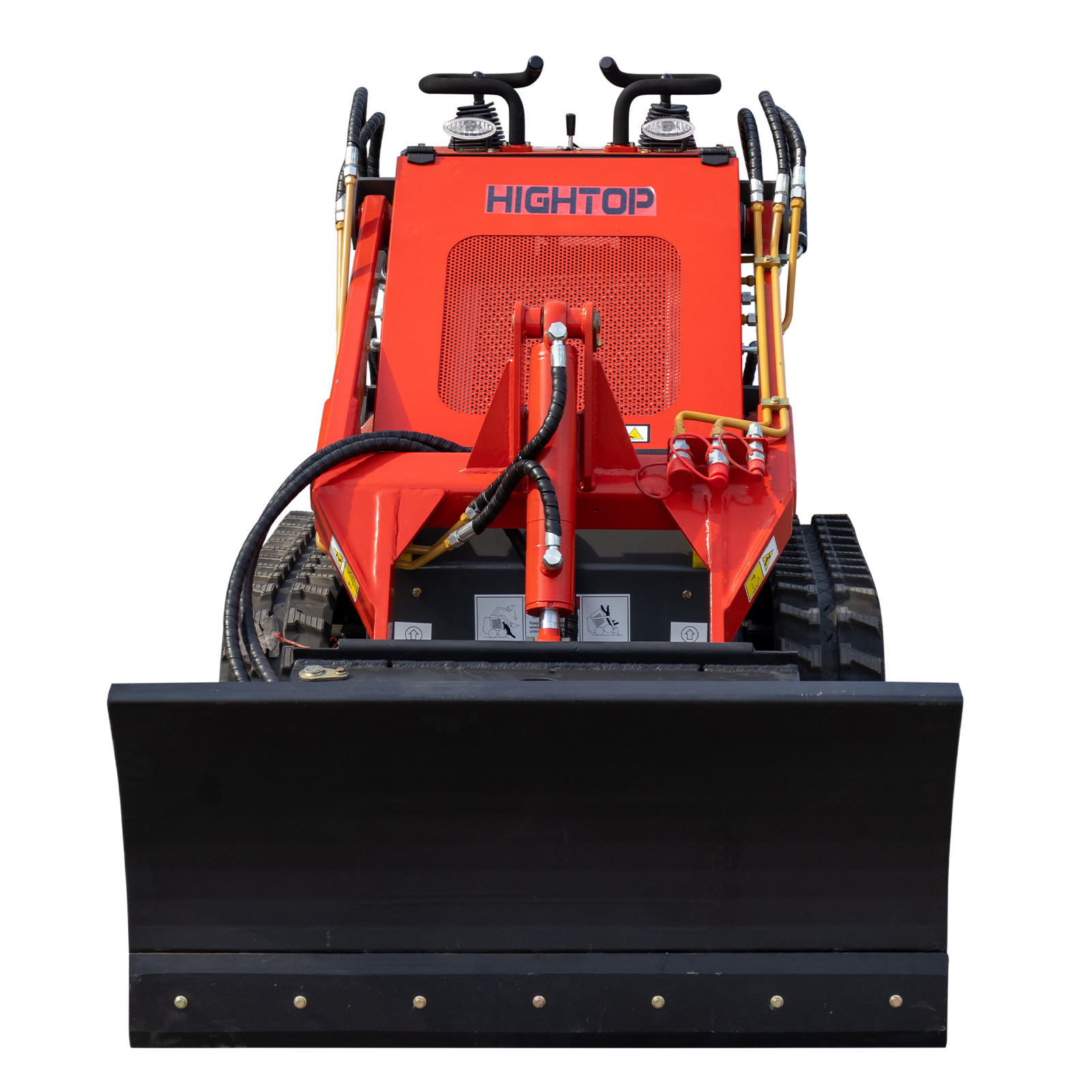

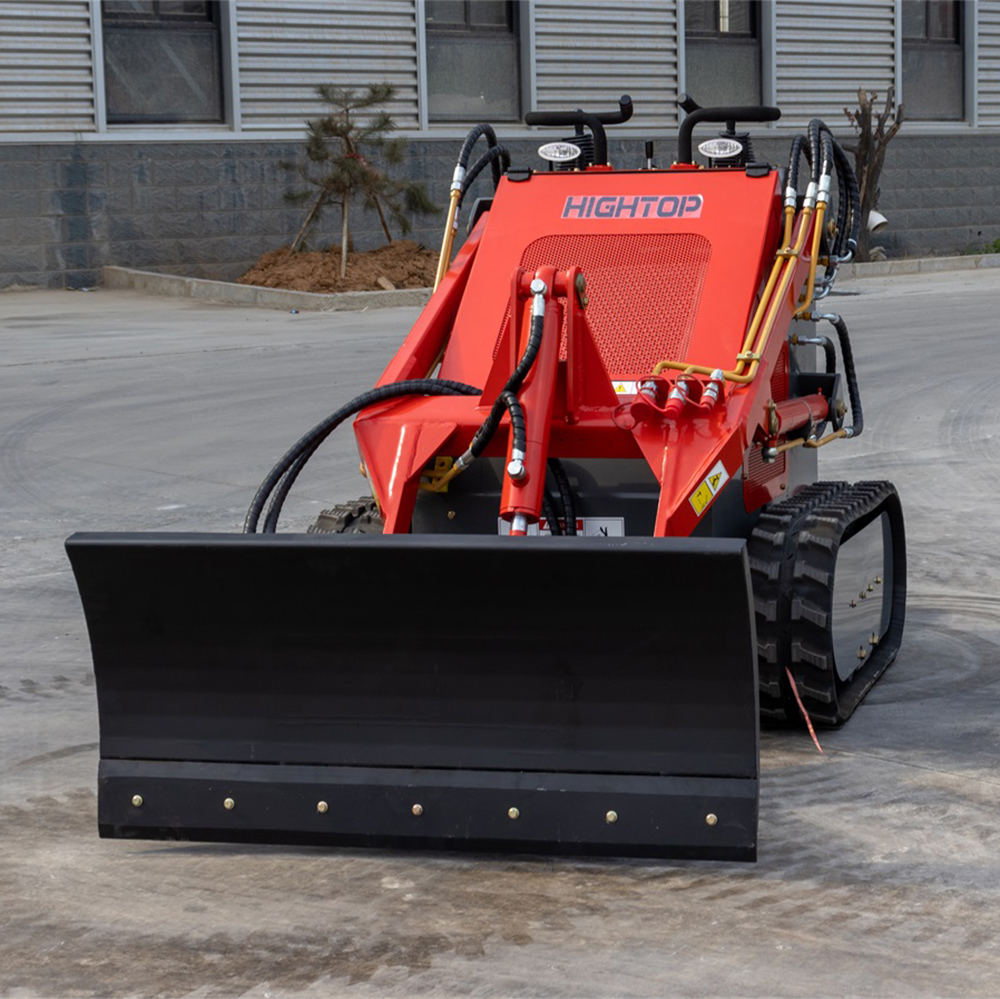

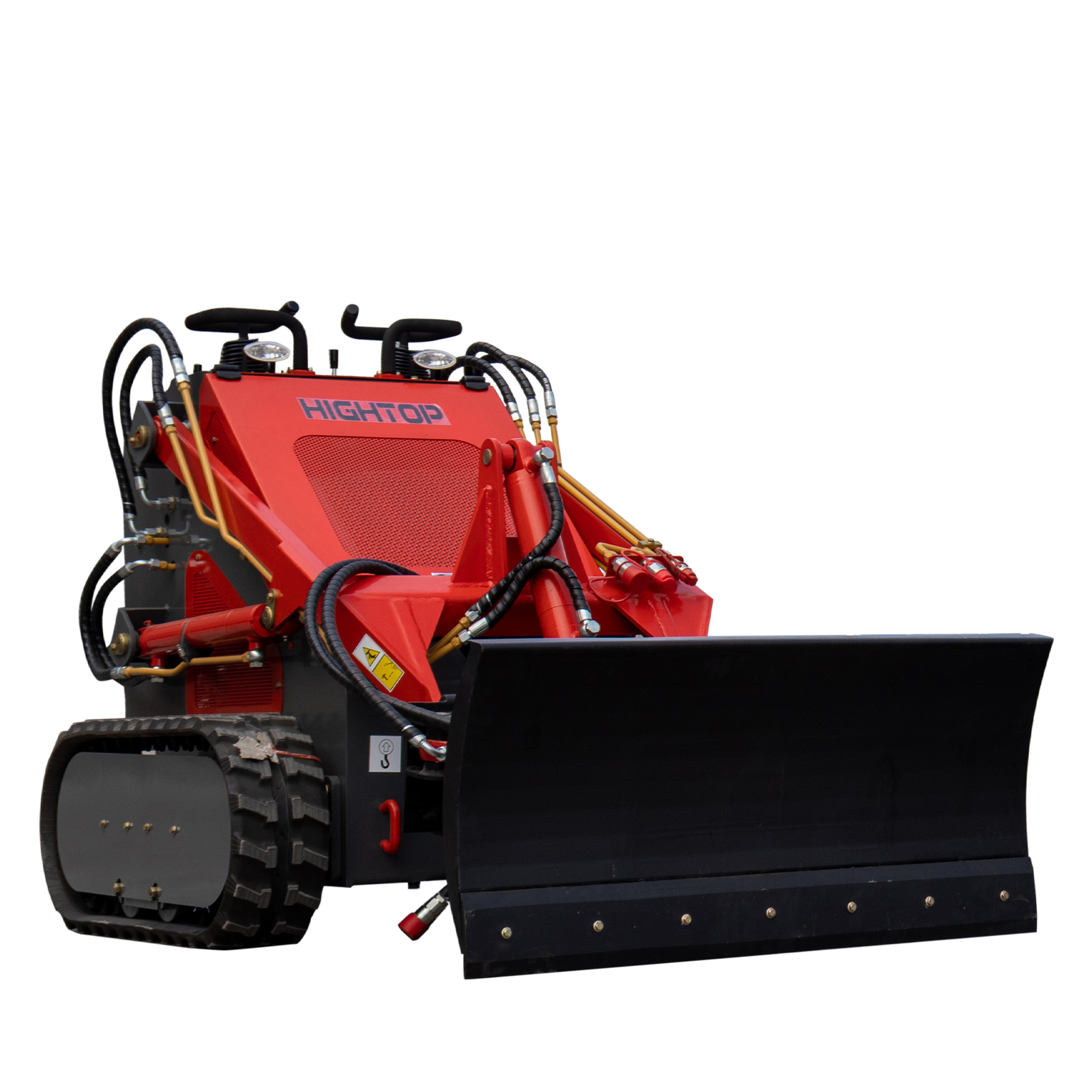

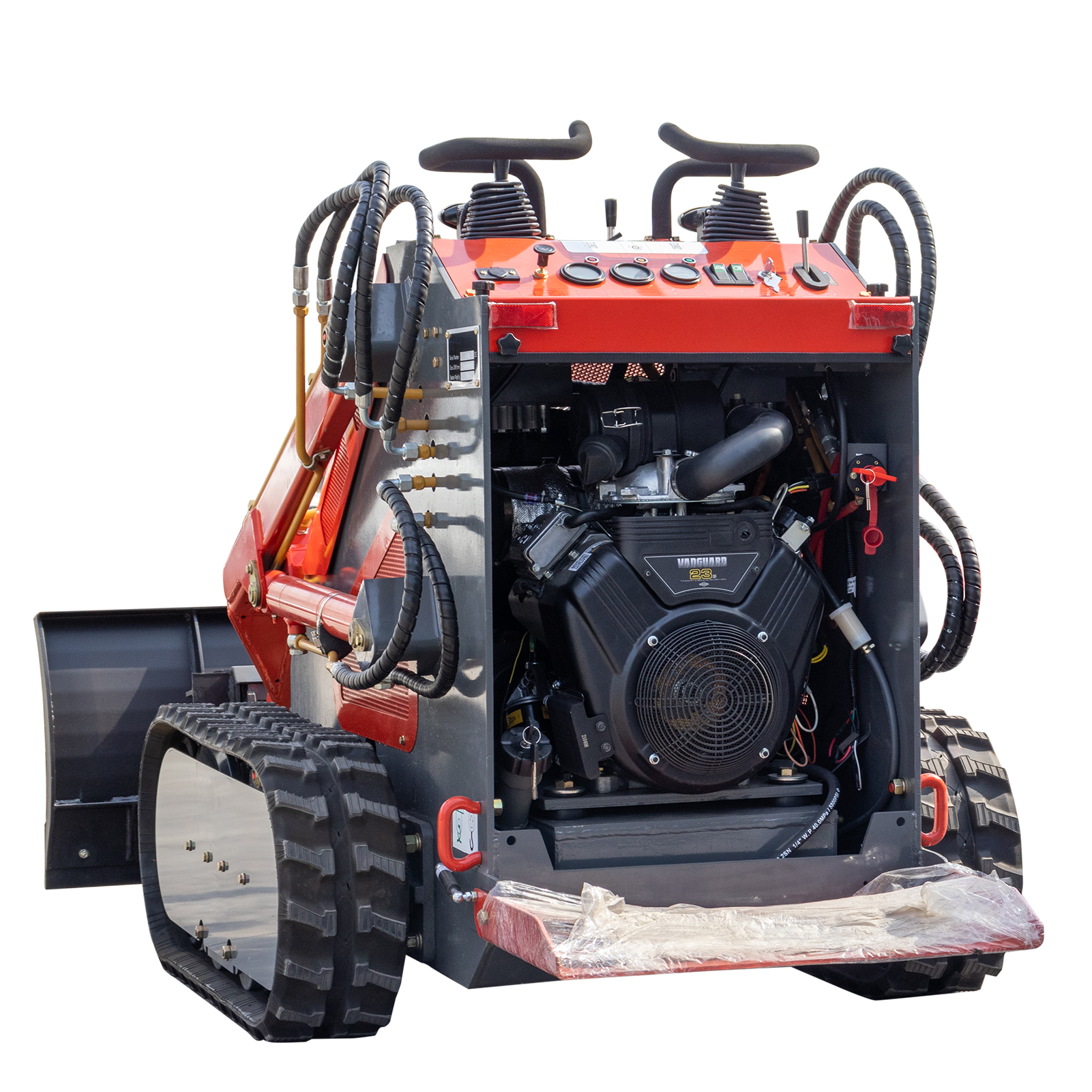

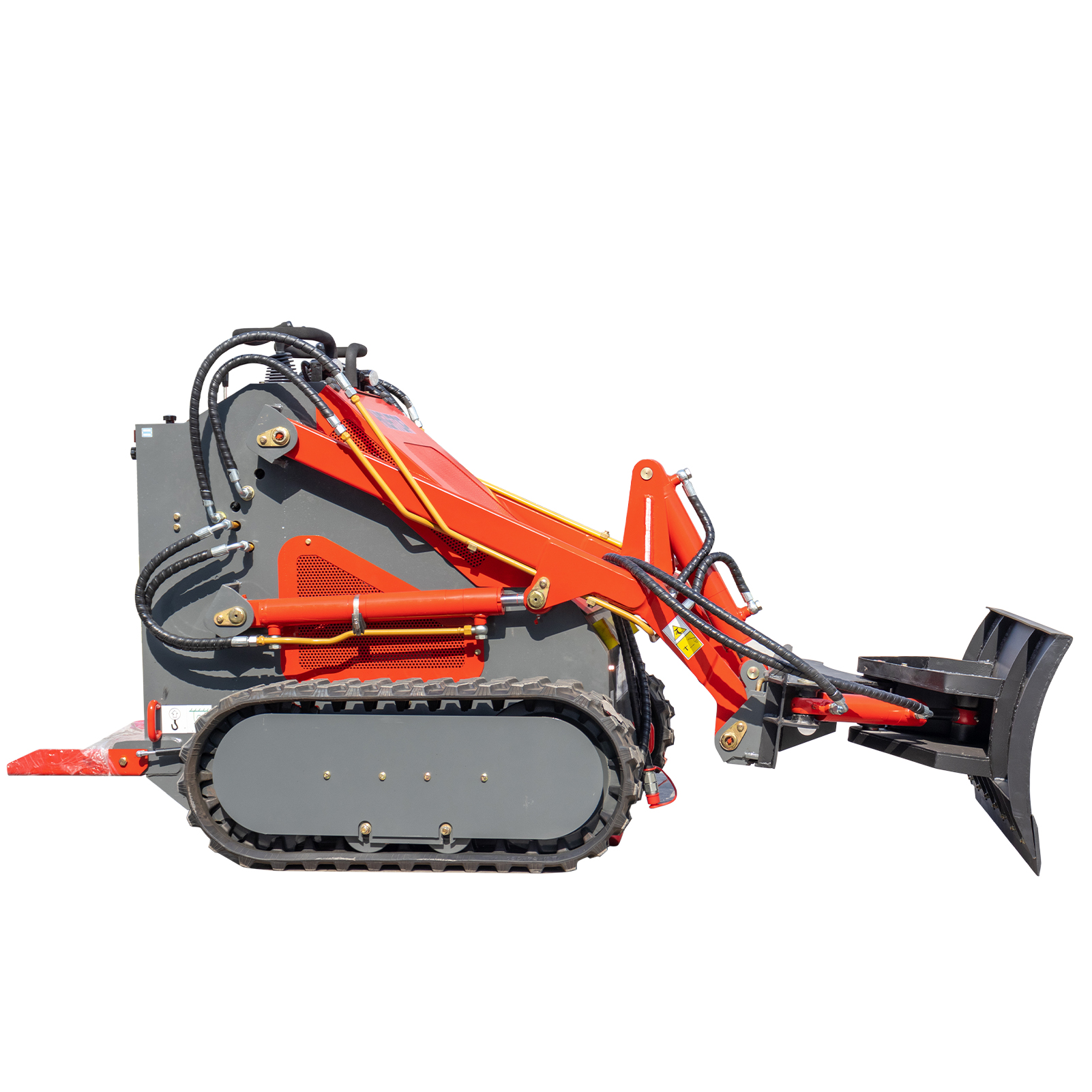

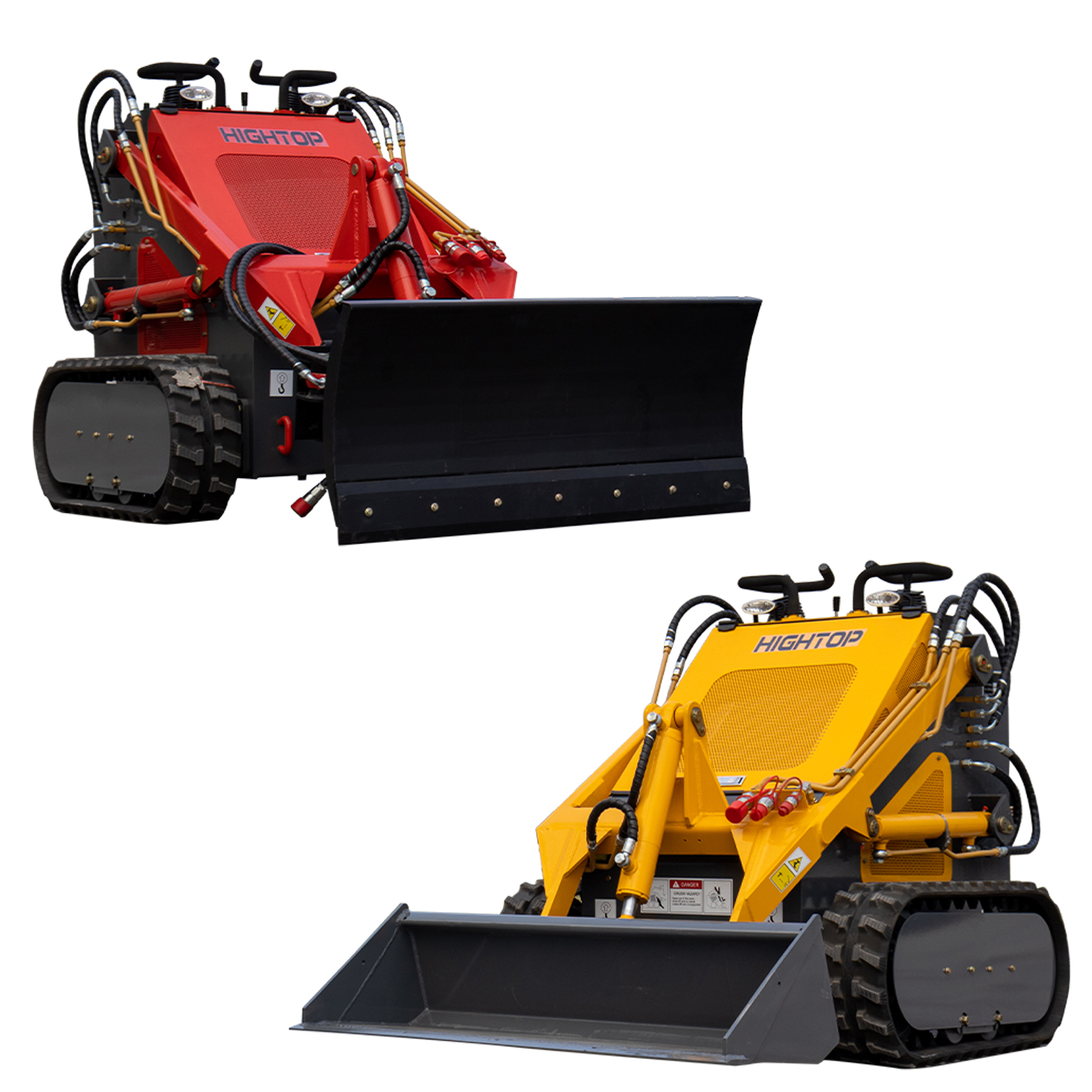

HTS380 Mini Skid Steer Loader
HTS380 Mini Skid Steer Loader Top Features
Superior Pertormance
Attachment Versatility
Ride-On/Walk-Behind convenience
Compact Size
Minimal Ground Disturbance
- Overview
- Parameter
- Details
- Related Products
HTS380 Skid Steer Loader Instruction
HTS380 Mini Skid Steer Wheeled Loader is highlymaneuverable, small and versatilemachine, it is the right choice for your manual tasks,Replace manual labor, toss out thehand tools and get more done in hard-to-access work areas. Easy-to-use mini trackloaders travel and work where other machines can't, making them a popular choicefor landscapers, contractors, renters and others. Don't be fooled by the small size. Theydo serious work: digging, trenching, tilling, moving material and more.
Crawler type can be used to work inside the soft land, large contact area is not easy toget stuck, high friction, high stability.Wheeled can be used in hard ground and highway, with high speed and efficiency.
HTS380 Skid Steer Loader Parameter
|
Model:HTS380 |
||||
|
Max working height |
2120mm |
Engine |
RATO R740-1 |
Briggs & Stratton23HP |
|
Max pin height |
1890 mm |
Rated Power (KW) |
16Kw/3600rpm |
17Kw/3600rpm |
|
Max Dumping height |
1465 mm |
Rotating speed (rpm) |
3600 |
3600 |
|
Max Dumping distance |
485mm |
Noise (Db) |
≤95 |
≤95 |
|
Max Dumping Angle |
32° |
Hydraulic System |
||
|
Total height |
1315 mm |
Pressure (Mpa) |
0-17 |
0-17 |
|
Ground clearance |
115mm |
Flow rate |
0-21.6L |
0-21.6L |
|
Wheel base |
680 |
Operating Load |
300 Kg |
300 Kg |
|
Overall length without bucket |
1650 mm |
Bucket Capacity |
0.15m³ |
0.15m³ |
|
Total width |
1120 mm |
Max Lifting Force |
380 Kg |
380 Kg |
|
Bucket width |
1150mm |
Travel Speed |
0-4.5Km/h |
0-4.5Km/h |
|
Total length with bucket |
2085mm |
Operating Weight |
800 Kg |
800 Kg |
|
overall length without the bucket after folding the pedal. |
2035 mm |
Oil |
||
|
Fuel tank |
20L |
20L |
||
|
|
|
Engine oil |
1.7L |
1.7L |
|
|
|
Hydraulic tank |
37L |
37L |
