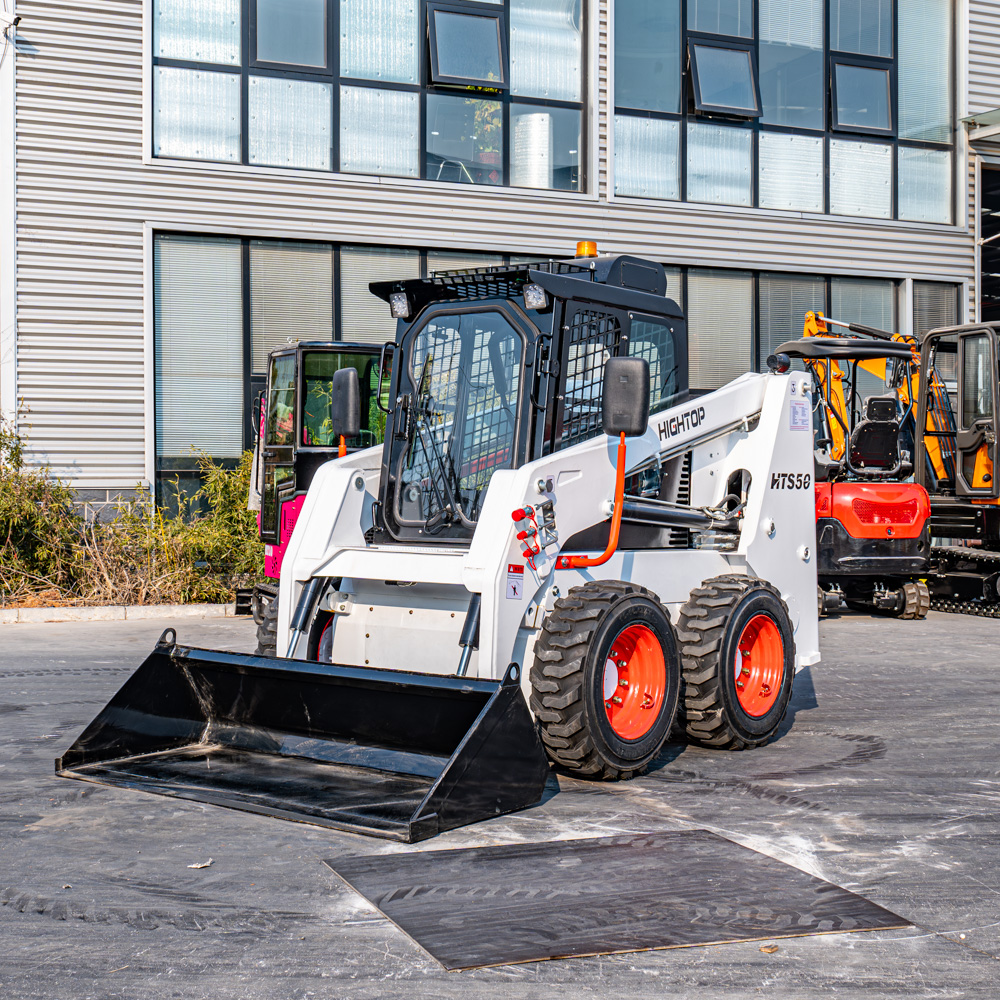

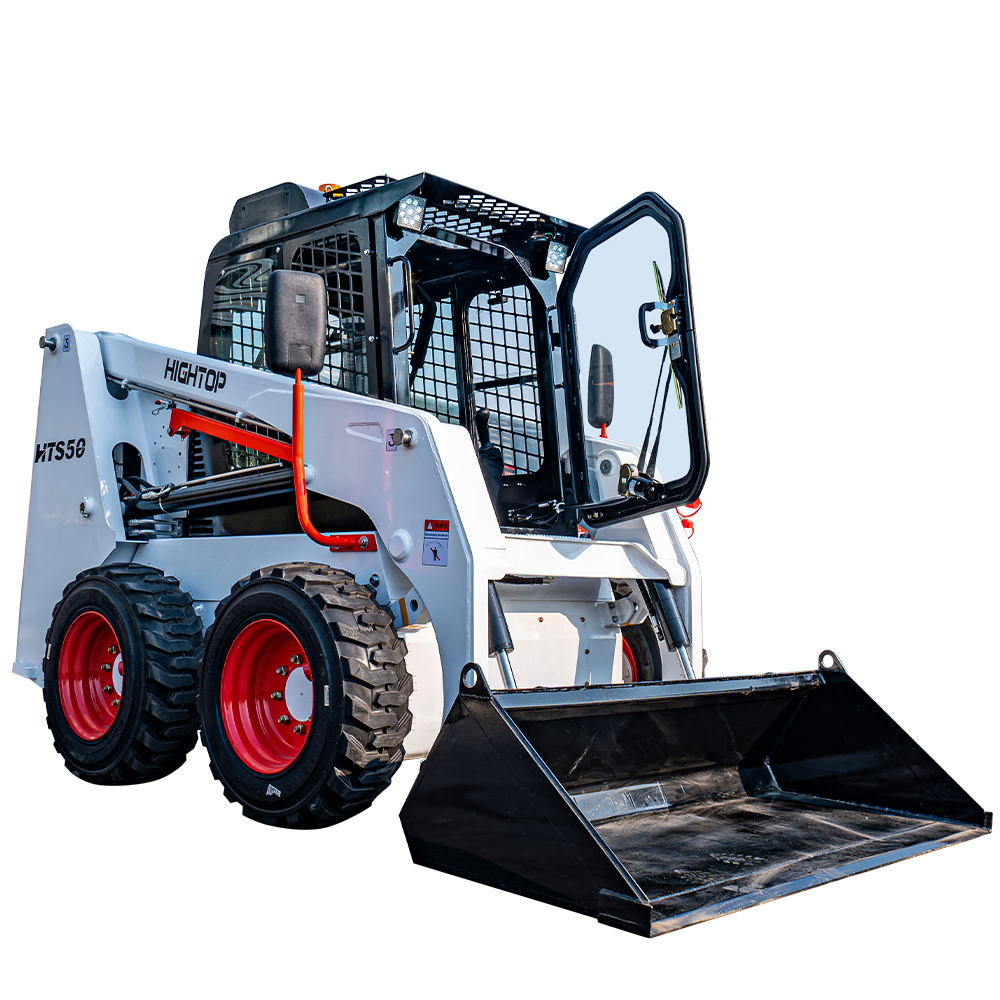

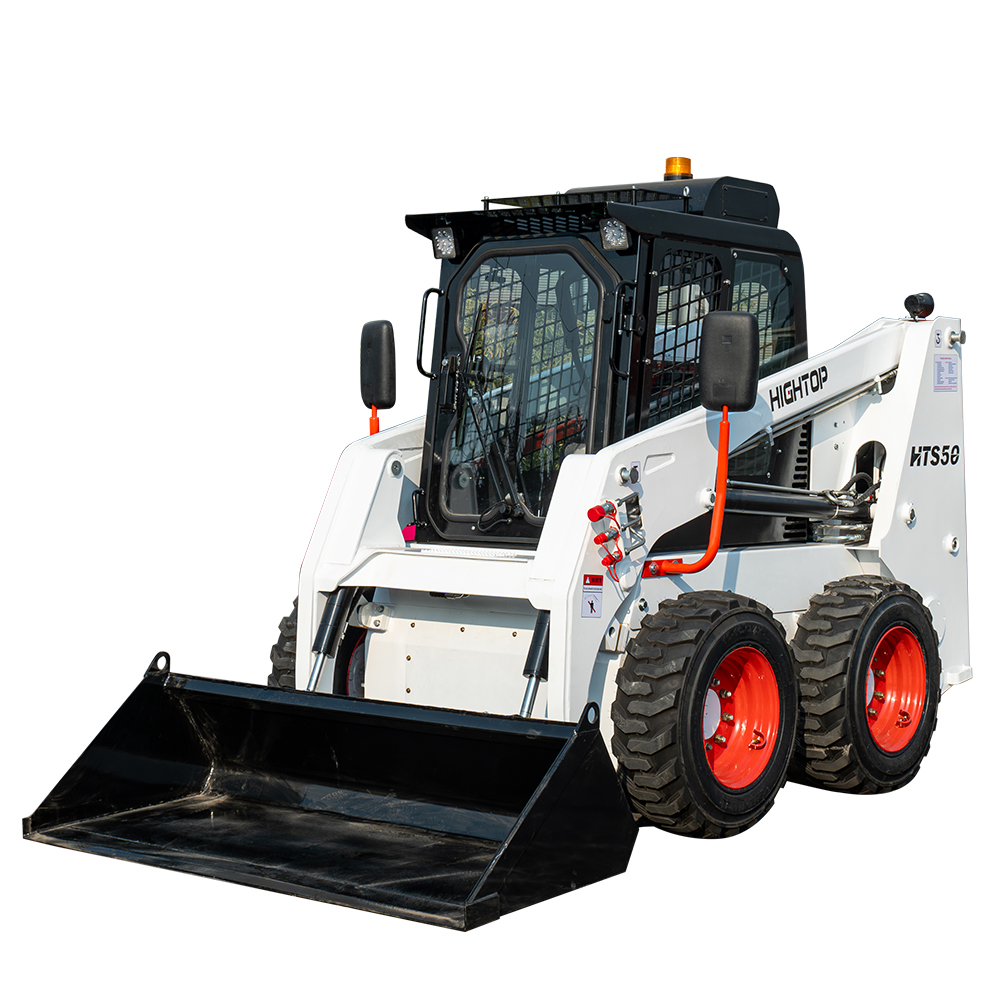

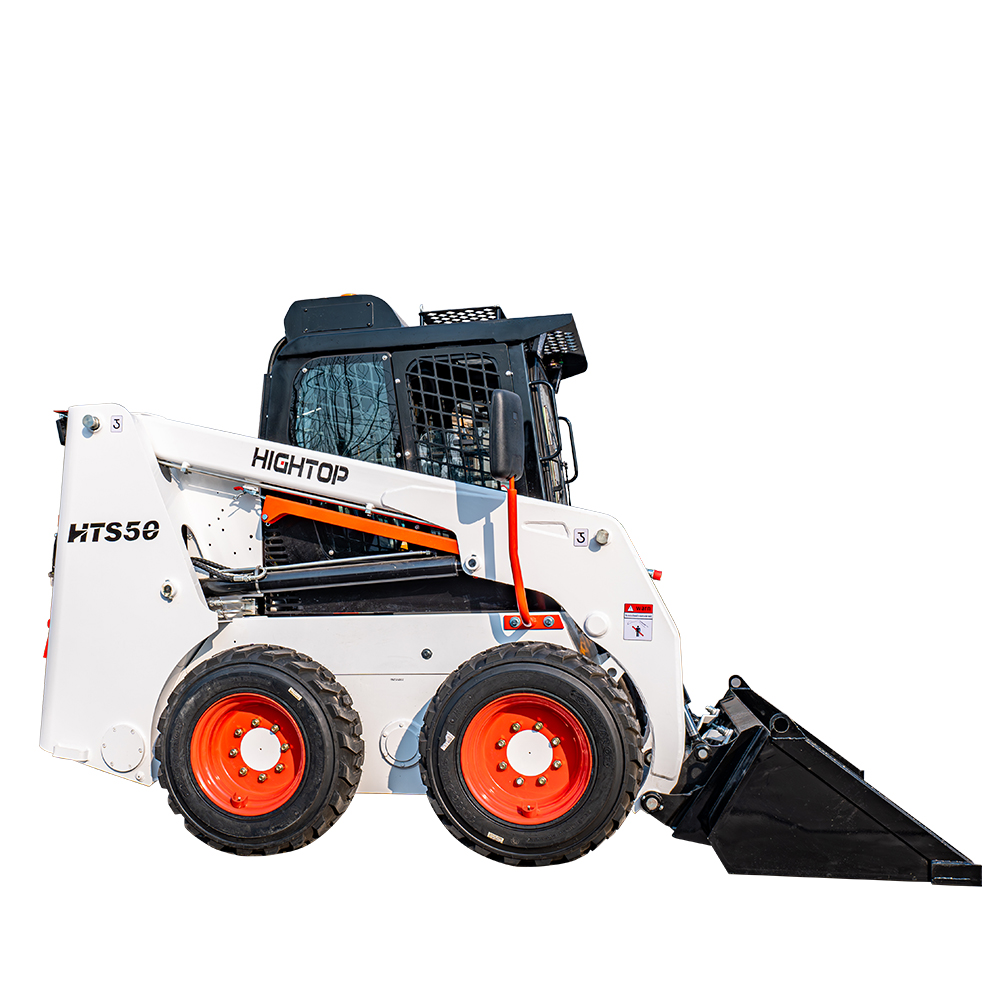

HTS50 SKID STEER LOADER
The crawler type traveling mechanism makes the equipment have good gripping ability and stability, which can adapt to many kinds of complicated terrain, such as rugged mountain road, loose sand, muddy construction site, etc., and can work smoothly in some places that are hard to reach by wheel loaders.
- Overview
- Parameter
- Details
- Related Products

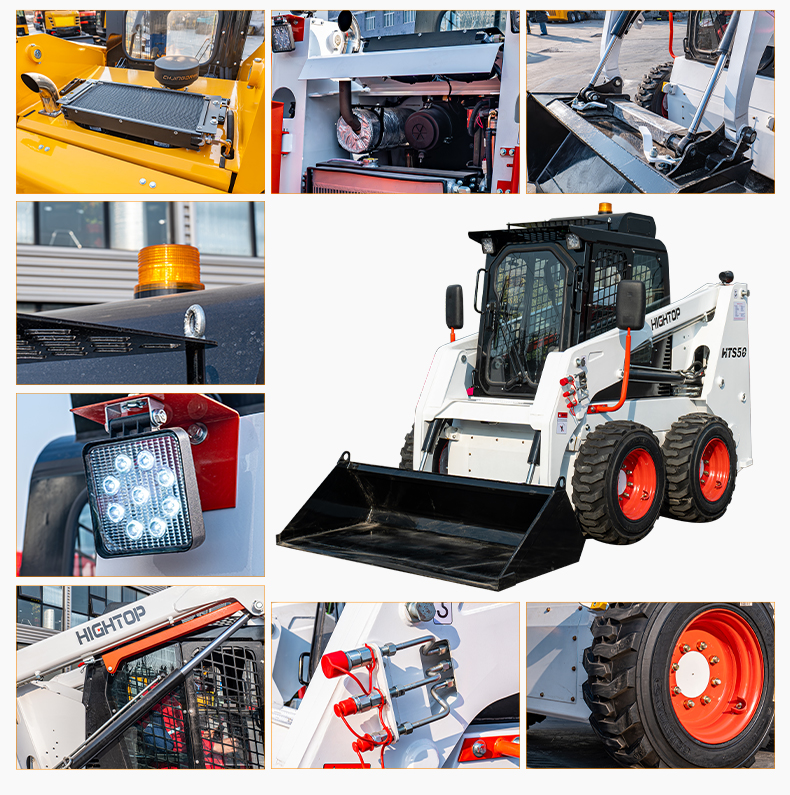

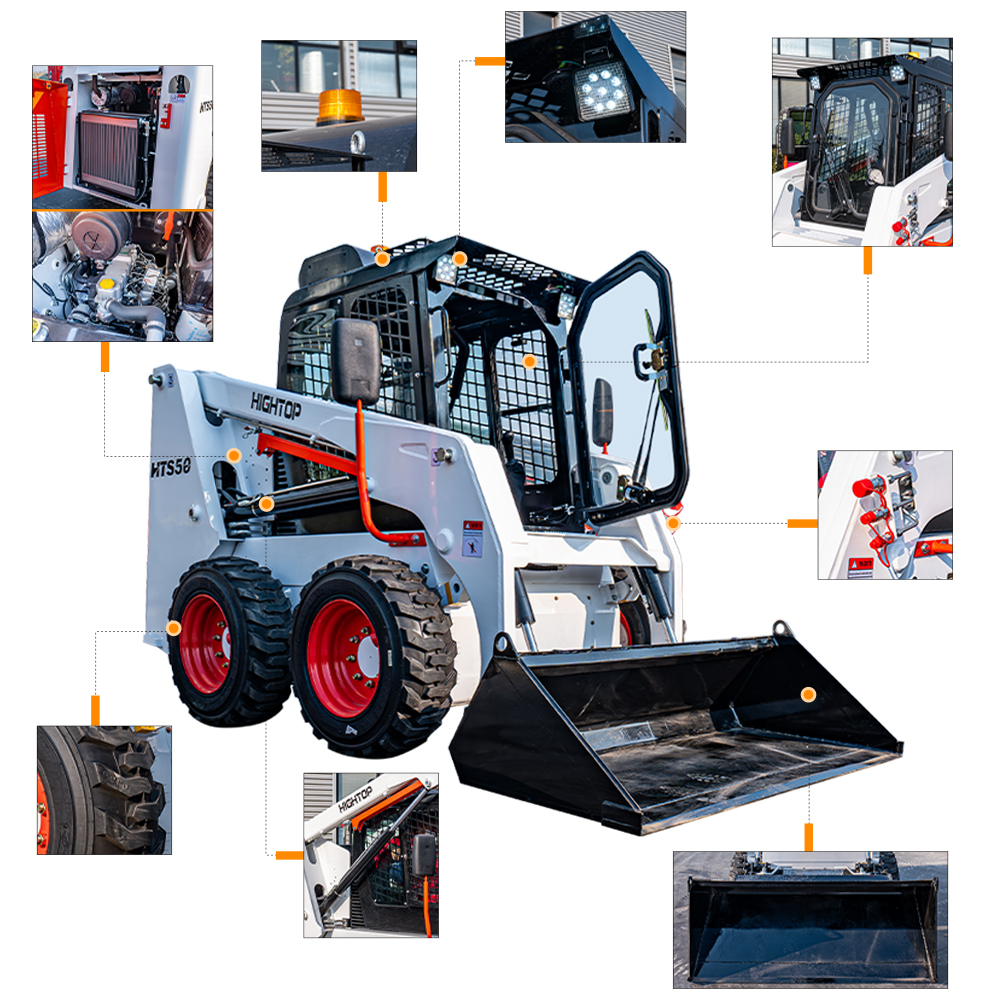

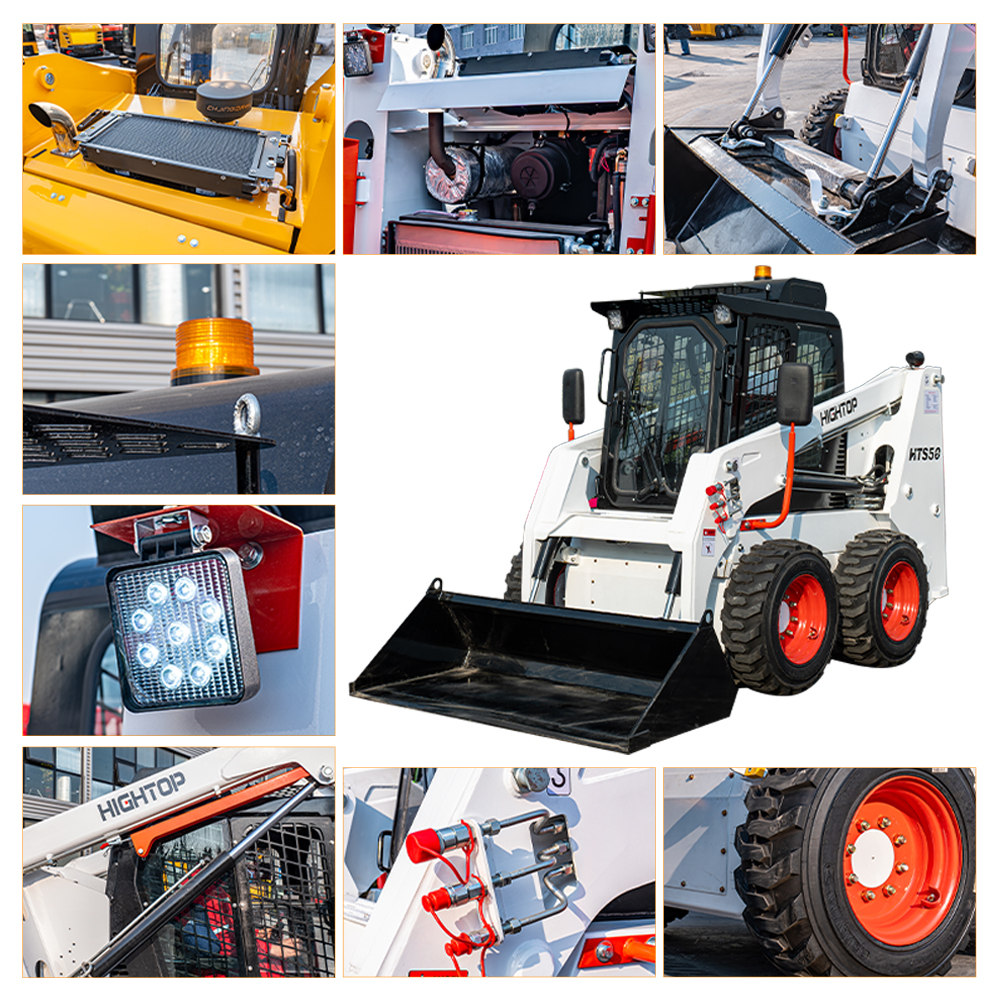

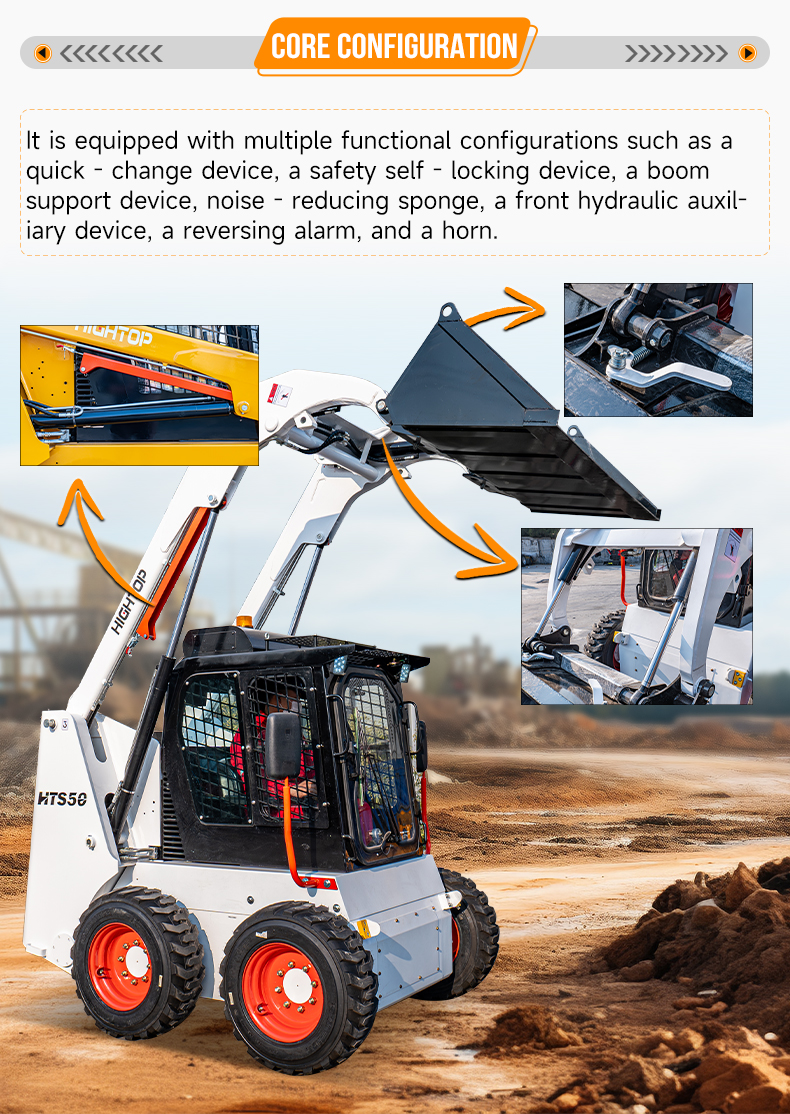

It is equipped with multiple functional configurations such as a quick - change device, a safety self - locking device, a boom support device, noise - reducing sponge, a front hydraulic auxiliary device, a reversing alarm, and a horn.

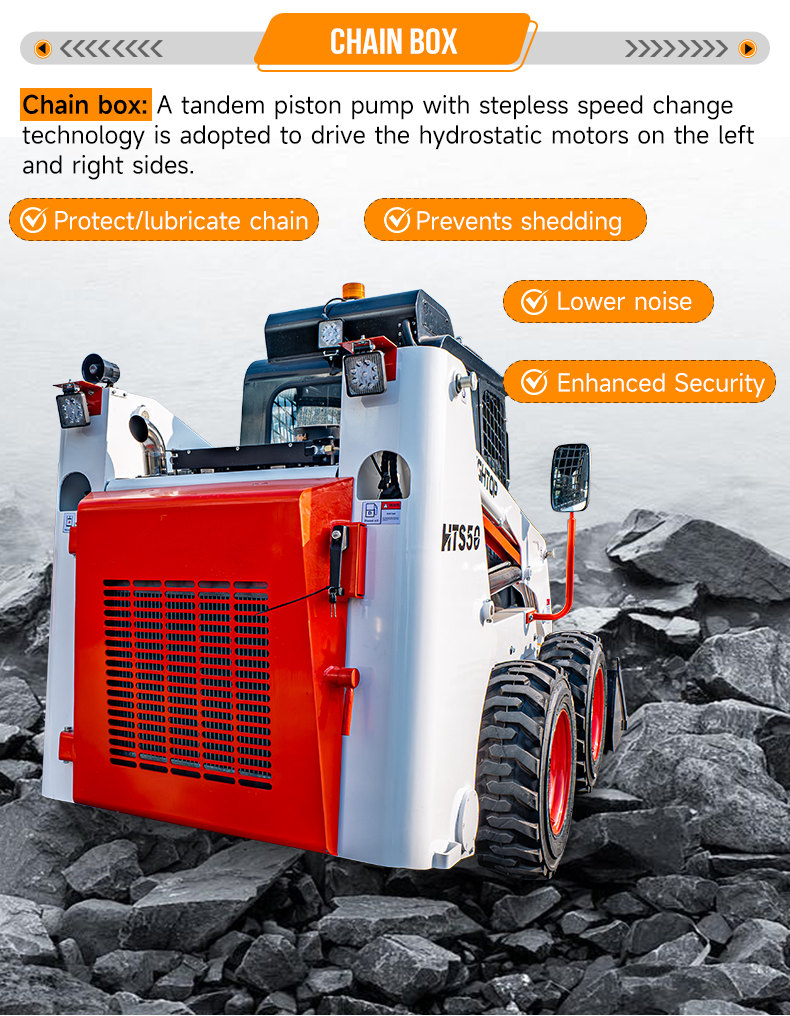

Chain box: A tandem piston pump with stepless speed change technology is adopted to drive the hydrostatic motors on the left and right sides.

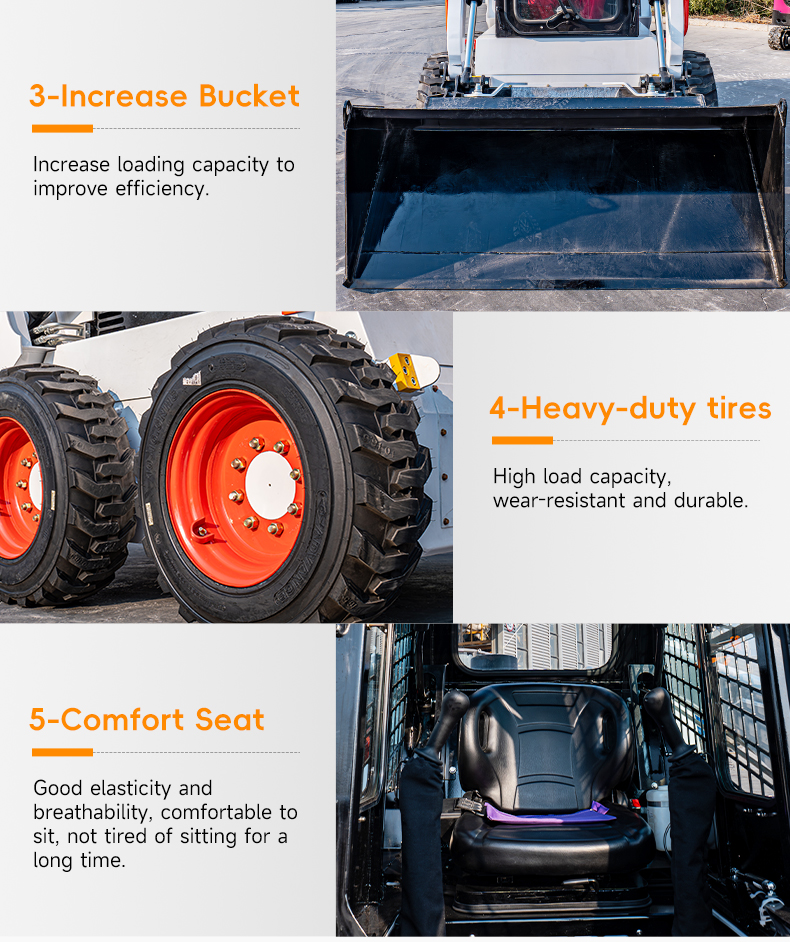

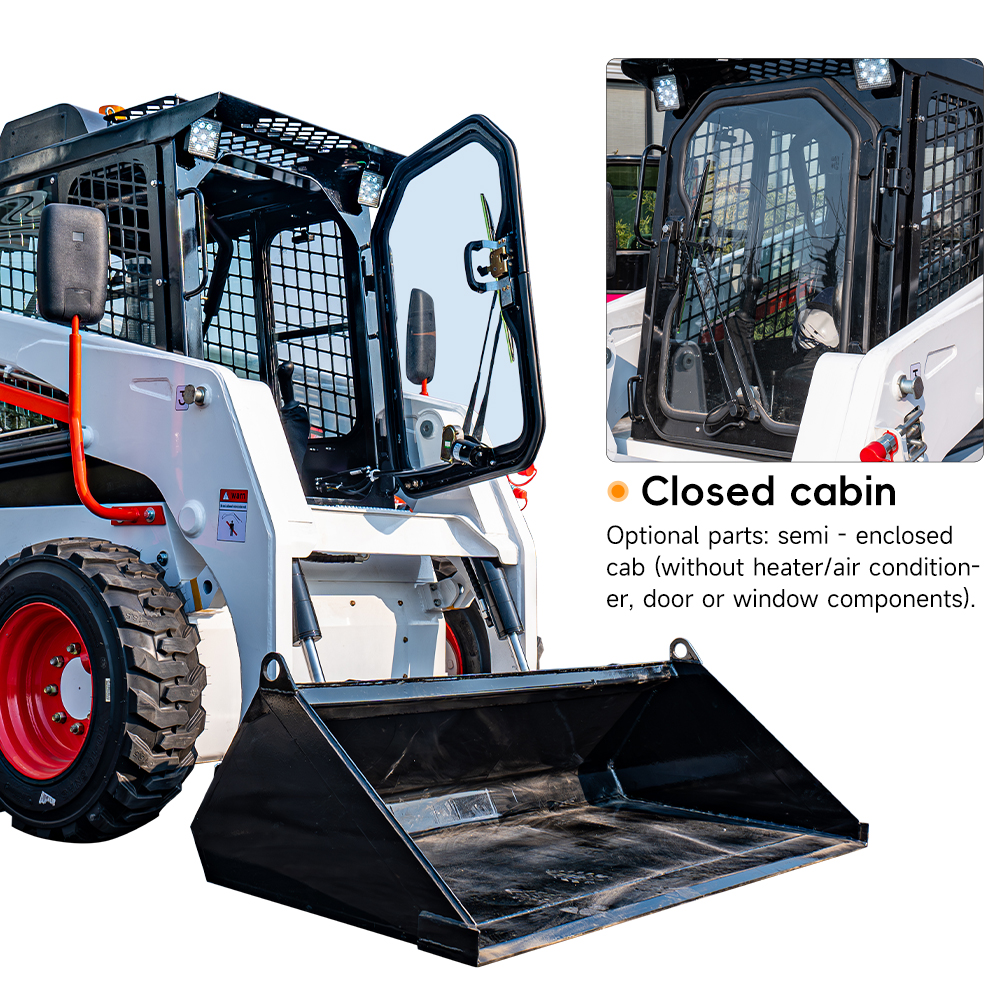

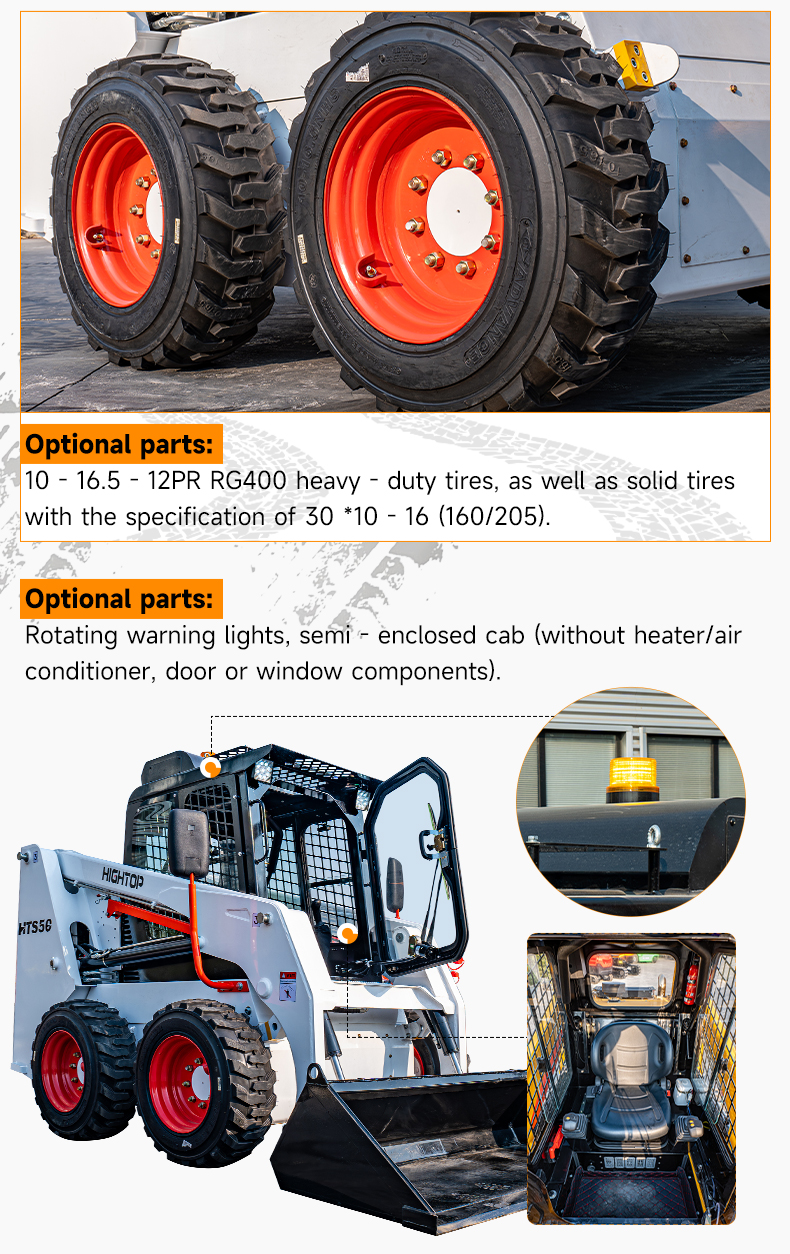

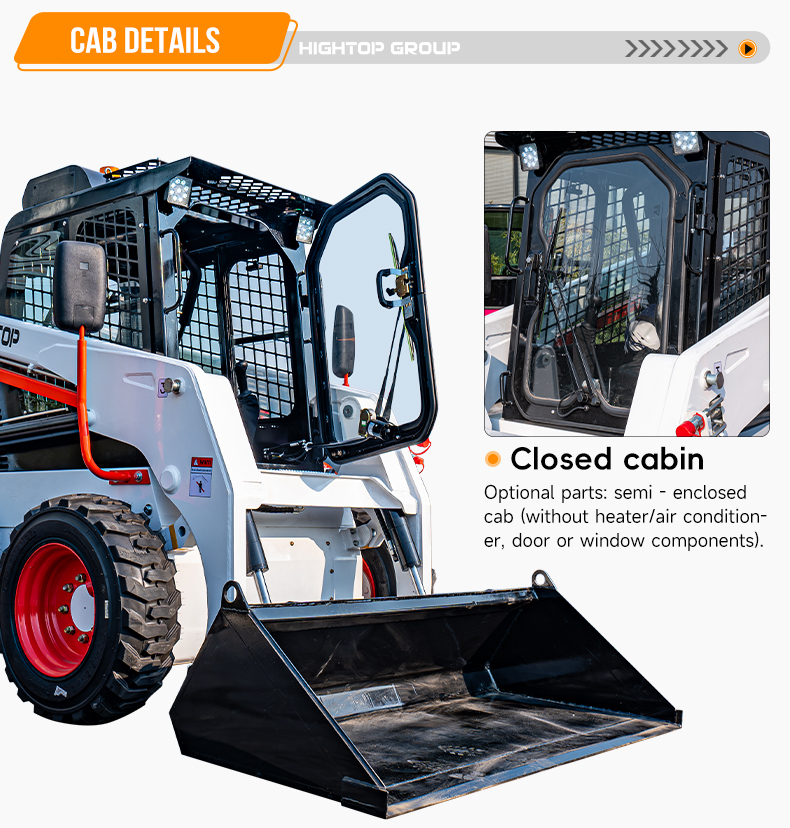

Optional parts: 10 - 16.5 - 12PR RG400 heavy - duty tires, as well as solid tires with the specification of 30*10 - 16 (160/205); rotating warning lights, semi - enclosed cab (without heater/air conditioner, door or window components).

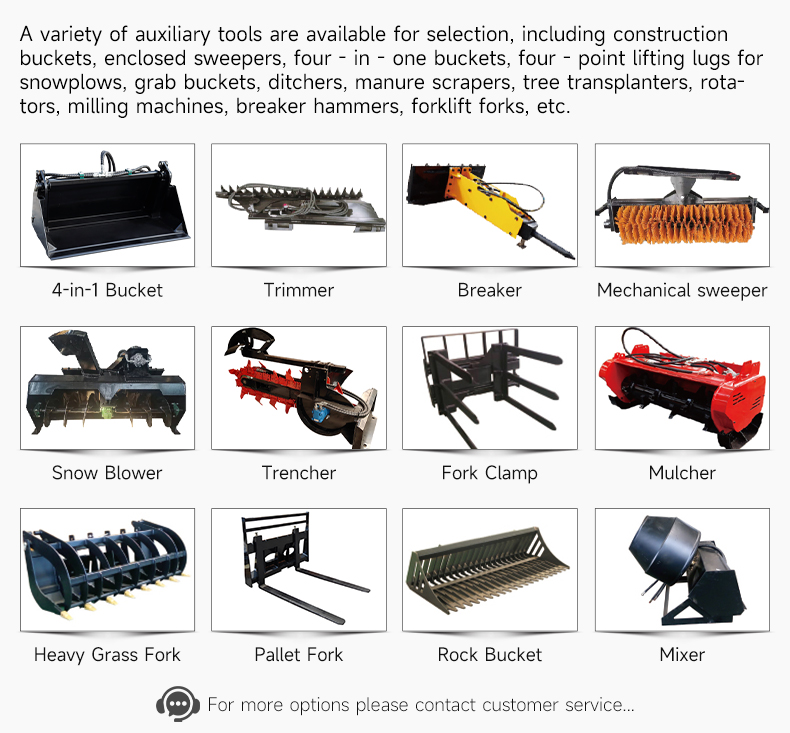

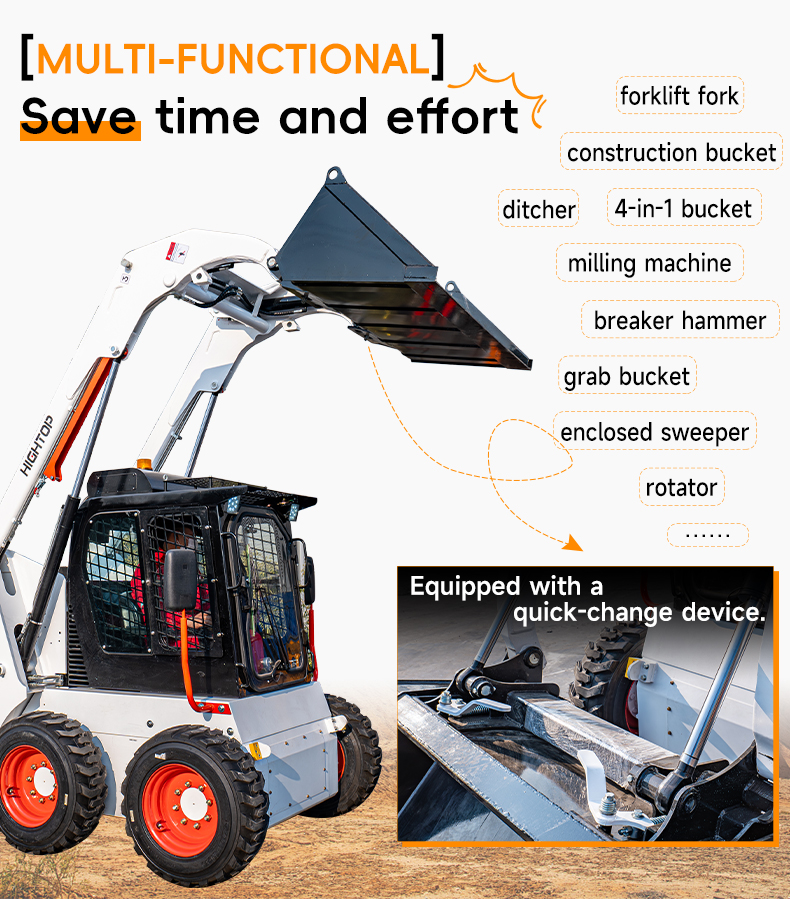

A variety of auxiliary tools are available for selection, including construction buckets, enclosed sweepers, four - in - one buckets, four - point lifting lugs for snowplows, grab buckets, ditchers, manure scrapers, tree transplanters, rotators, milling machines, breaker hammers, forklift forks, etc.
|

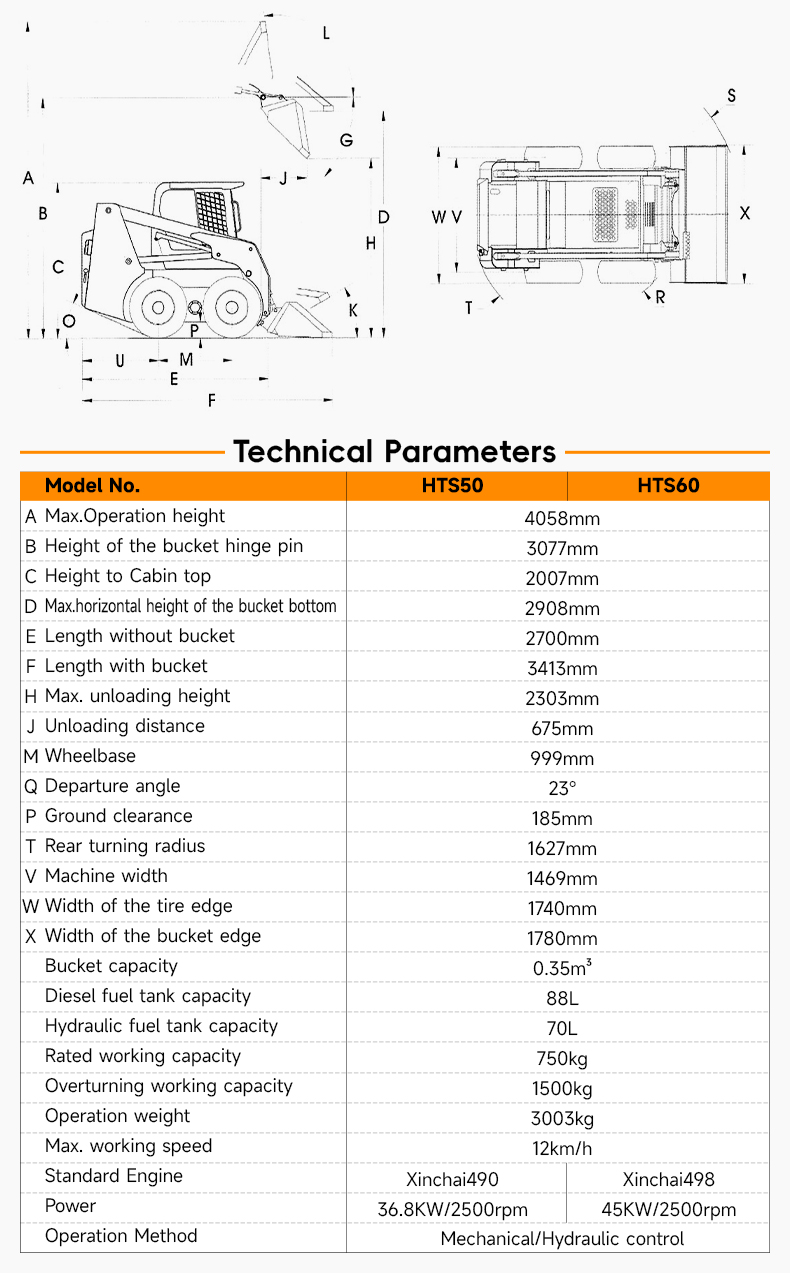

Max.Operation height |
4058mm |
|
Height of the bucket hinge pin |
3077mm |
|
Height to Cabin top |
2007mm |
|
Max.horizontal height of the bucket bottom |
2908mm |
|
Length without bucket |
2700mm |
|
Length with bucket |
3413mm |
|
Max. unloading height |
2303mm |
|
Unloading distance |
675mm |
|
Wheelbase |
999mm |
|
Departure angle |
23° |
|
Ground clearance |
185mm |
|
Rear turning radius |
1627mm |
|
Machine width |
1469mm |
|
Width of the tire edge |
1740mm |
|
Width of the bucket edge |
1780mm |
|
Bucket capacity |
0.35m³ |
|
Diesel fuel tank capacity |
88L |
|
Hydraulic fuel tank capacity |
70L |
|
Rated working capacity |
750kg |
|
Overturning working capacity |
1500kg |
|
Operation weight |
3003kg |
|
Max. working speed |
12km/h |
|
Standard Engine |
Xinchai490 |
|
Power |
36.8KW/2500rpm |
|
Operation Method |
Mechanical/Hydraulic control |
