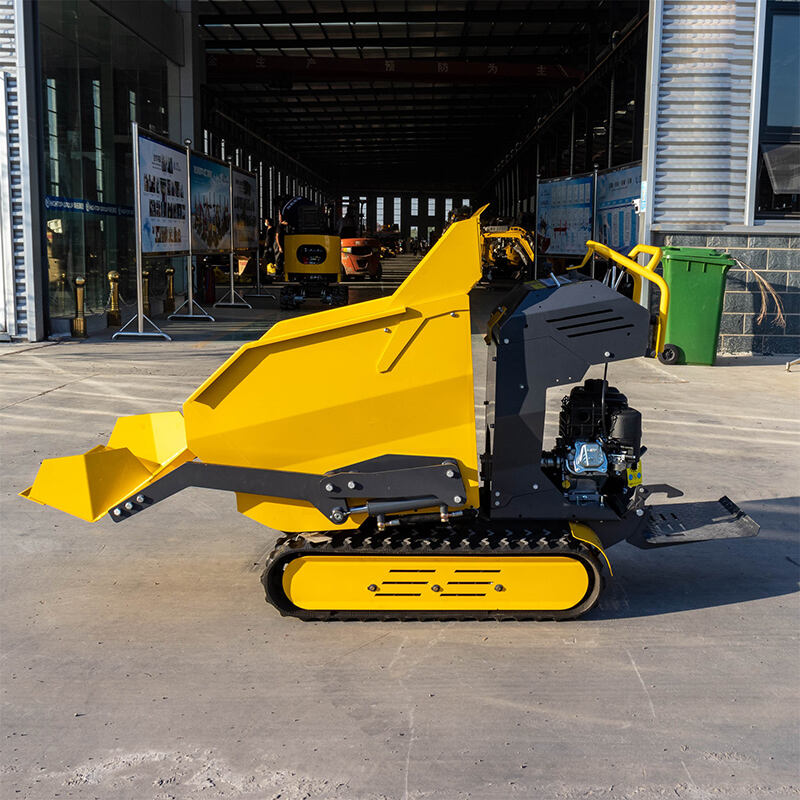

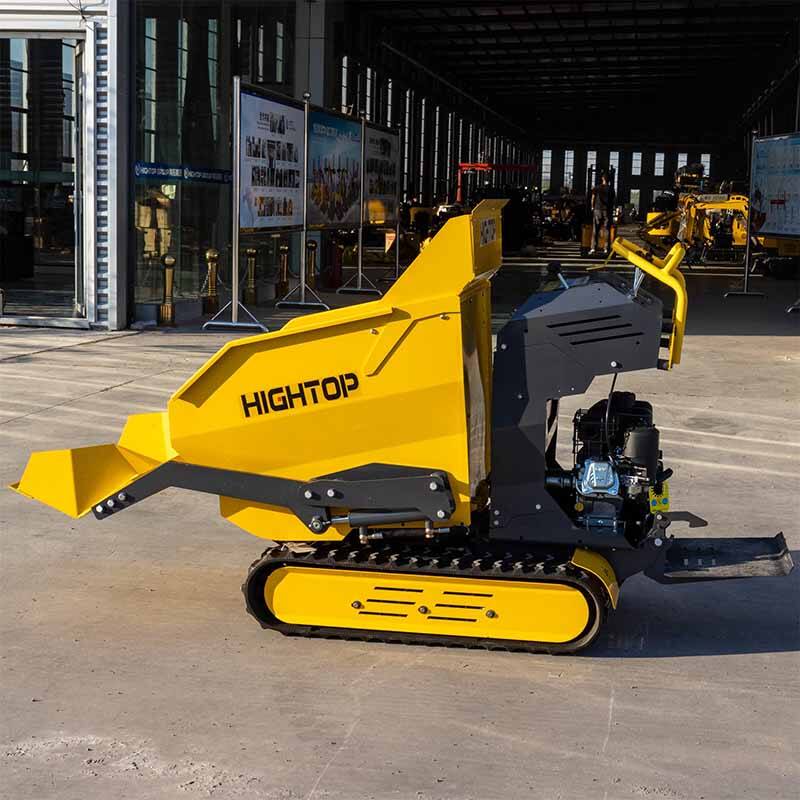

Mini Crawler Dumper

In terms of power, it is equipped with Briggs & Stratton engine, which meets the EPA emission standard. With a rated power of 6.5HP and a displacement of 208cc, it can provide strong power, whether it is handling gravel in construction sites or transporting soil in landscaping projects.

In terms of mobility, the hydraulic drive and full hydraulic steering system are used for extremely flexible operation. With a forward and reverse speed of 3.2km/h, the truck can precisely control its traveling rhythm. 15° of climbing ability makes it easy to cope with sloping sites, and the 71mm ground clearance ensures that it will not be easily hindered when traveling on rough roads.

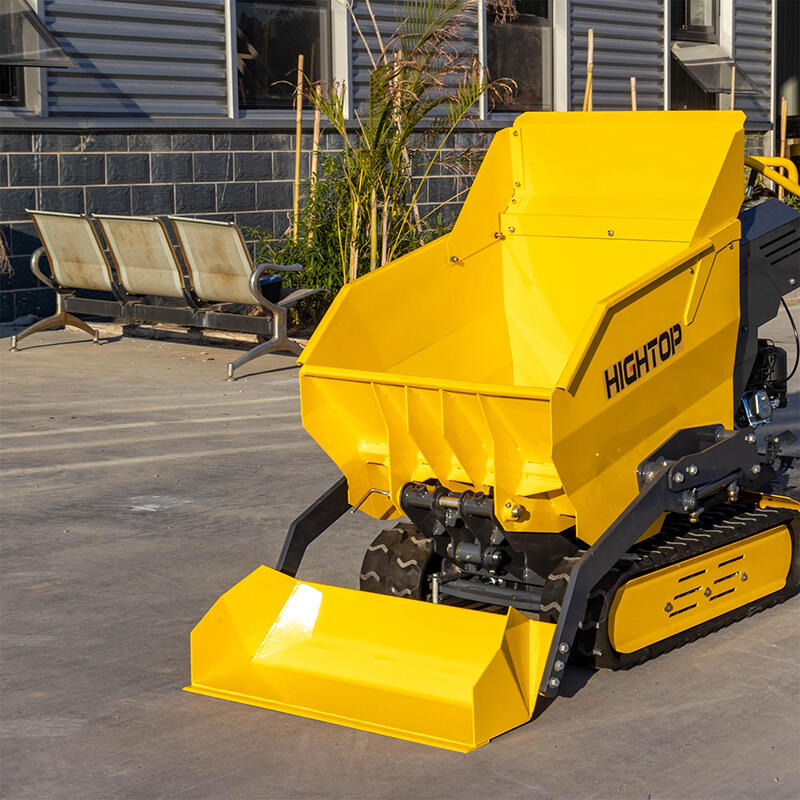

In terms of load and size, the vehicle has a transport mass of 360kg and an operating mass of 860kg. 1480x832x1344mm is convenient for transportation, while 2112x832x1344mm can be used to fully utilize the operating capacity when working. 270L hopper volume can load a large amount of materials.

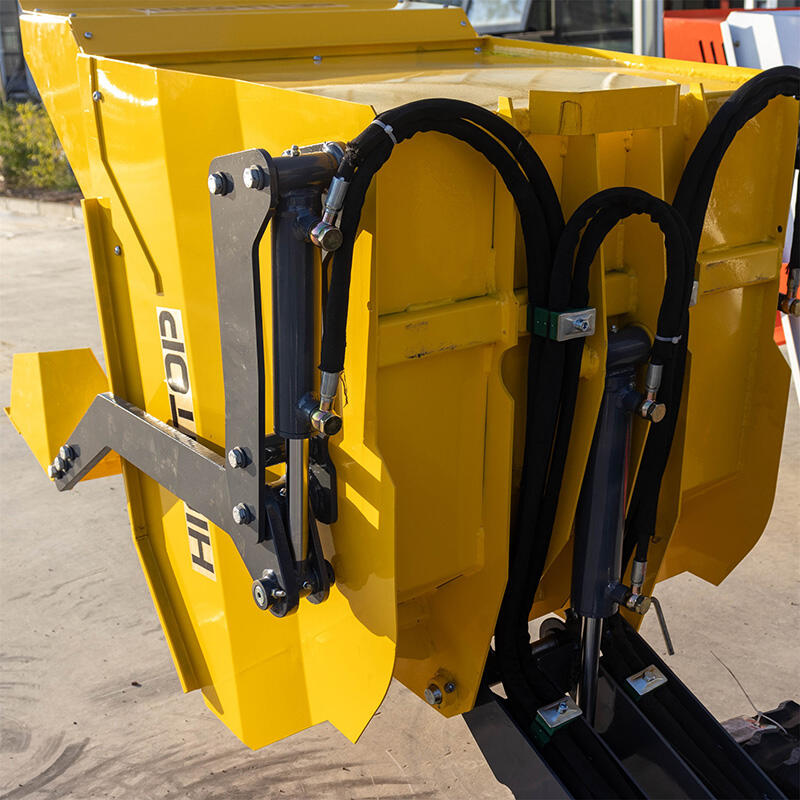

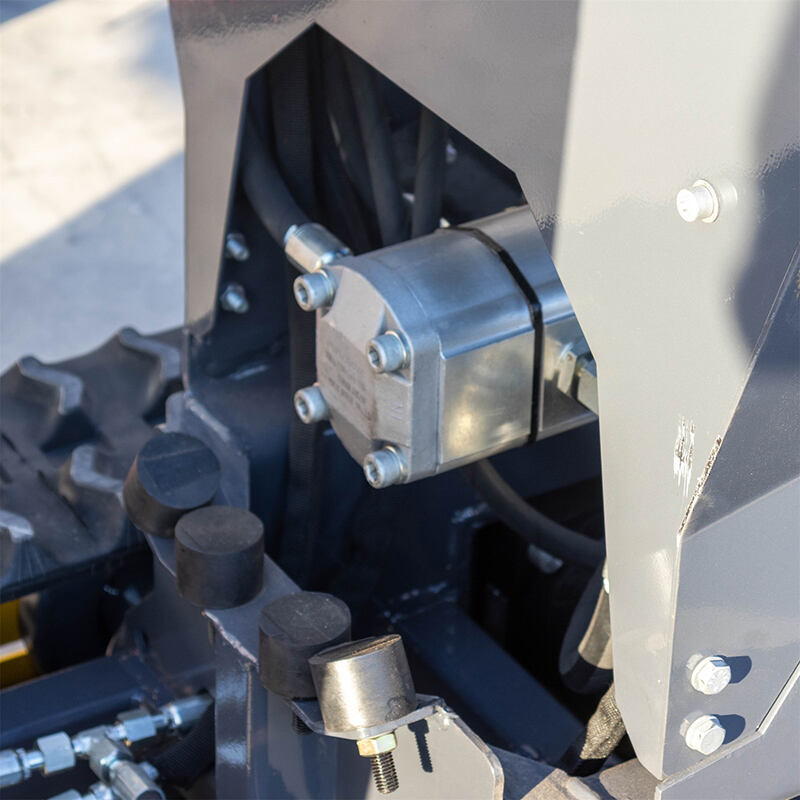

The hydraulic system is exquisite, with a tandem gear pump (4cc x2) running at 3600rpm and a disc-distributing cycloid motor (x2), the working pressure can reach a maximum of 180bar, the hydraulic flow rate is 28.8L, and the motor torque reaches 645Nm at 180bar, which ensures smooth and efficient operation of driving, steering, and dumping.

A separate hydraulic circuit is provided as standard for equipment traction, and forward and reverse drive control can be easily realized by means of a handle. A customized transition gearbox makes it easy to start the engine even in low temperatures. Reverse start and electric start options are also available. A folding platform facilitates flexible maneuvering, and a removable hopper protector extends the equipment's service life. The Mini Crawler Dumper can be used on small construction sites or landscape maintenance sites as a handy material handling aid.

Mini Dumper Parameter
